Front Seat Back Cushion Cover and Cushion Pad Replacement (Fold Flat)

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

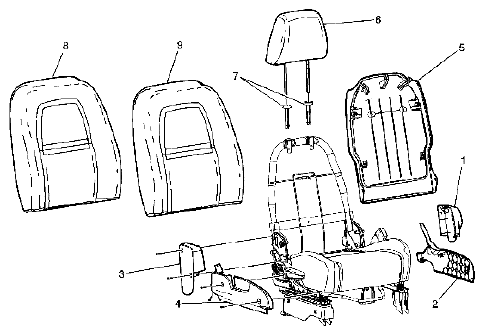

Fig 1: Identifying Front Seat Back Cushion Cover & Cushion Pad Components (Fold Flat)

Courtesy of SUZUKI OF AMERICA CORP.

FRONT SEAT BACK CUSHION COVER AND CUSHION PAD COMPONENTS REFERENCE

Callout	Component Name
Preliminary Procedure Remove the front seat. Refer to FRONT SEAT REPLACEMENT - BUCKET .
1	Front Seat Outer Recliner Finish Cover Refer to FRONT SEAT BACK RECLINER OUTER TRIM PANEL REPLACEMENT (FOLD FLAT) .
2	Front Seat Outer Adjuster Finish Cover Refer to FRONT SEAT CUSHION OUTER TRIM PANEL REPLACEMENT (NON FOLD FLAT) and FRONT SEAT CUSHION OUTER TRIM PANEL REPLACEMENT (FOLD FLAT) .
3	Front Seat Inner Recliner Finish Cover Refer to FRONT SEAT BACK RECLINER INNER TRIM PANEL REPLACEMENT (FOLD FLAT) .
4	Front Seat Inner Adjuster Finish Panel Refer to FRONT SEAT CUSHION INNER TRIM PANEL REPLACEMENT (NON FOLD FLAT) and FRONT SEAT CUSHION INNER TRIM PANEL REPLACEMENT (FOLD FLAT) .
5	Front Seat Back Finish Panel Refer to FRONT SEAT BACK PANEL REPLACEMENT (FOLD FLAT) .
6	Front Seat Head Restraint Refer to FRONT SEAT HEAD RESTRAINT REPLACEMENT .
7	Front Seat Head Restraint Guides Tip: Squeeze the bottom of the guides together and push upward to remove.
8	Front Seat Back Cushion Cover Disconnect the lower J-hook retainer from the seat back trim cover. Remove the seat back trim cover from the seat.
9	Front Seat Back Cushion Pad Procedure Disconnect the electrical connector, if equipped, and feed through the seat back frame. Remove the seat back pad from the frame.
