Component Description

A turbine type design fuel pump is used in the fuel tank.

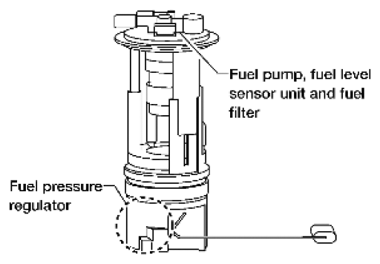

Fig 1: Identifying Fuel Level Sensor, Fuel Pump, Fuel Filter And Fuel Pressure Regulator
G06444388Courtesy of SUZUKI OF AMERICA CORP.
