Fuel Pump

  1. Disconnect "fuel level sensor unit and fuel pump" harness connector.

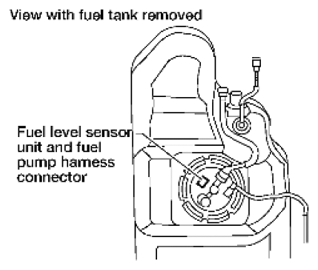

    Fig 1: Identifying Fuel Level Sensor Unit And Fuel Pump Harness Connector
    G06444393Courtesy of SUZUKI OF AMERICA CORP.
  2. Check resistance between "fuel level sensor unit and fuel pump" terminals 1 and 3.
    Fig 2: Checking Resistance Between Fuel Level Sensor Unit And Fuel Pump Terminals 1, 3
    G06444394Courtesy of SUZUKI OF AMERICA CORP.

    Resistance: 0.2 - 5.0Ω [at 25 °C (77 °F)]
