EVAP Canister: Removal and Installation
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
EVAP Canister: Removal and Installation: Notes

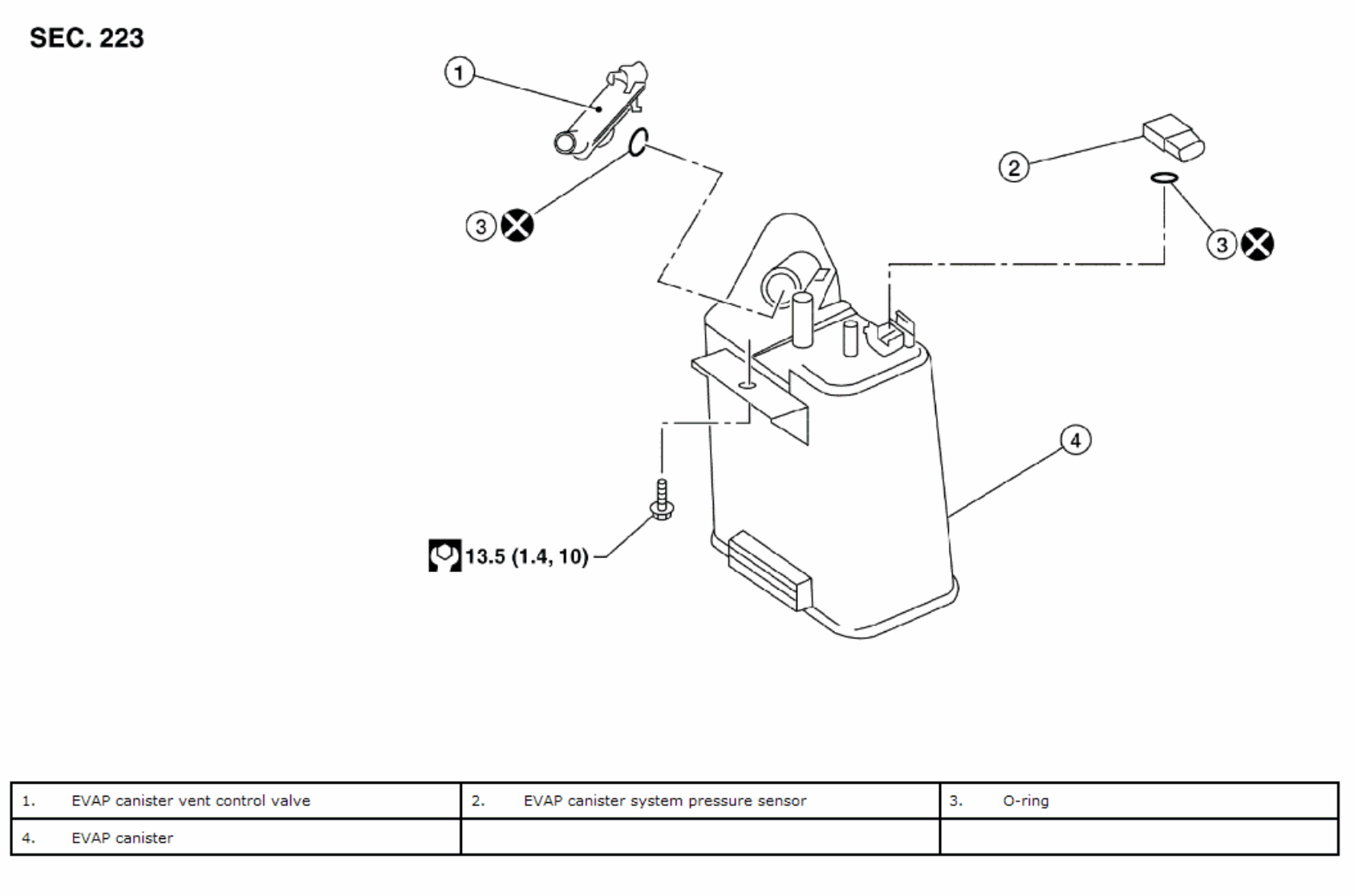

Fig 1: EVAP Canister With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
