Evaporative Emission Line Drawing

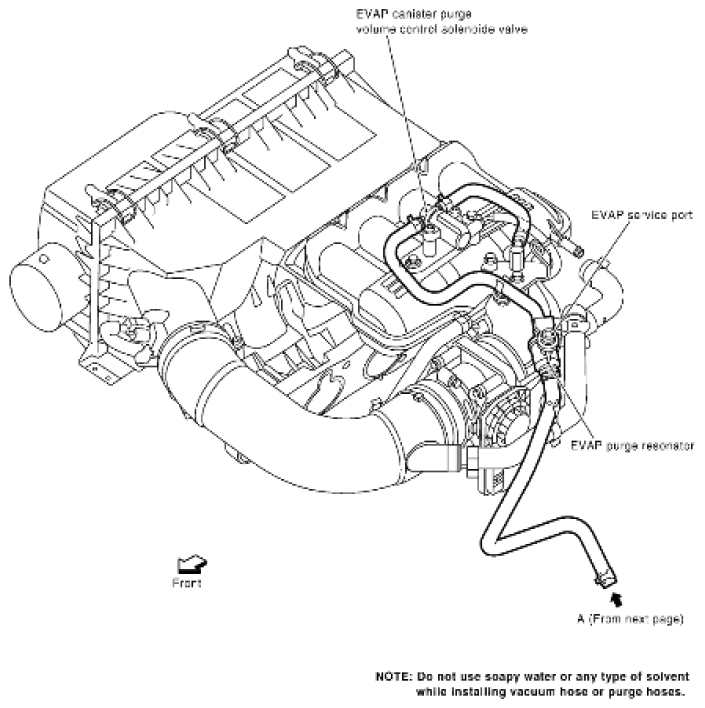

Fig 1: Evaporative Emission Line Drawing (1 Of 2)
G06444422Courtesy of SUZUKI OF AMERICA CORP.

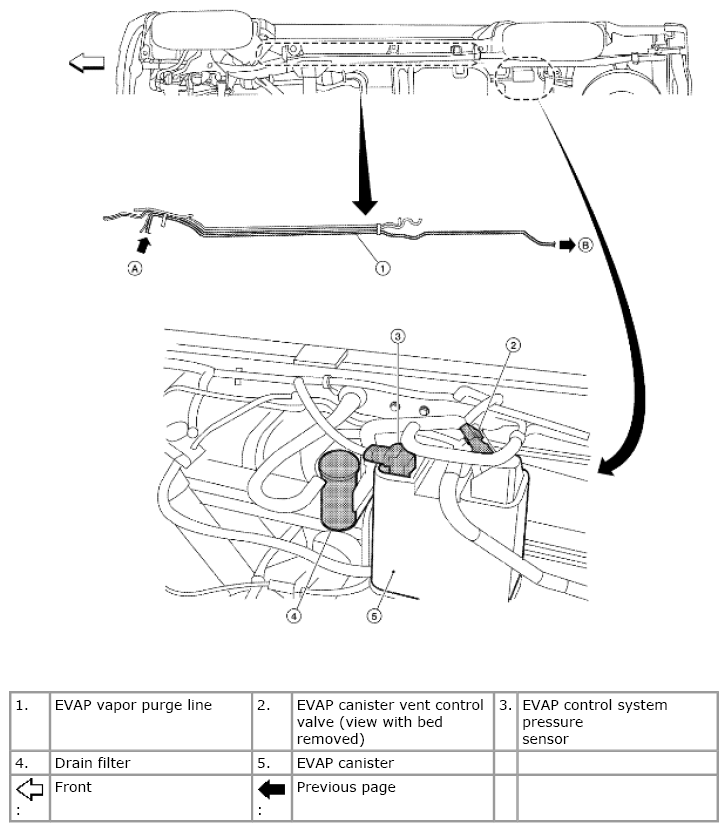

Fig 2: Evaporative Emission Line Drawing (2 Of 2)
G06444423Courtesy of SUZUKI OF AMERICA CORP.
