Without SDT

  1. Remove fuel pump fuse located in IPDM E/R.

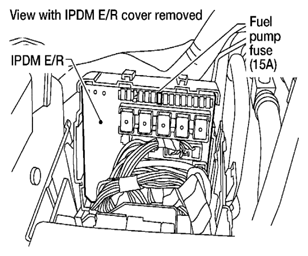

    Fig 1: Identifying Fuel Pump Fuse Located In IPDM E/R
    G06444557Courtesy of SUZUKI OF AMERICA CORP.
  2. Start engine.
  3. After engine stalls, crank it two or three times to release all fuel pressure.
  4. Turn ignition switch OFF.
  5. Reinstall fuel pump fuse after servicing fuel system.
