Starter Motor: Removal and Installation (QR25DE): Notes

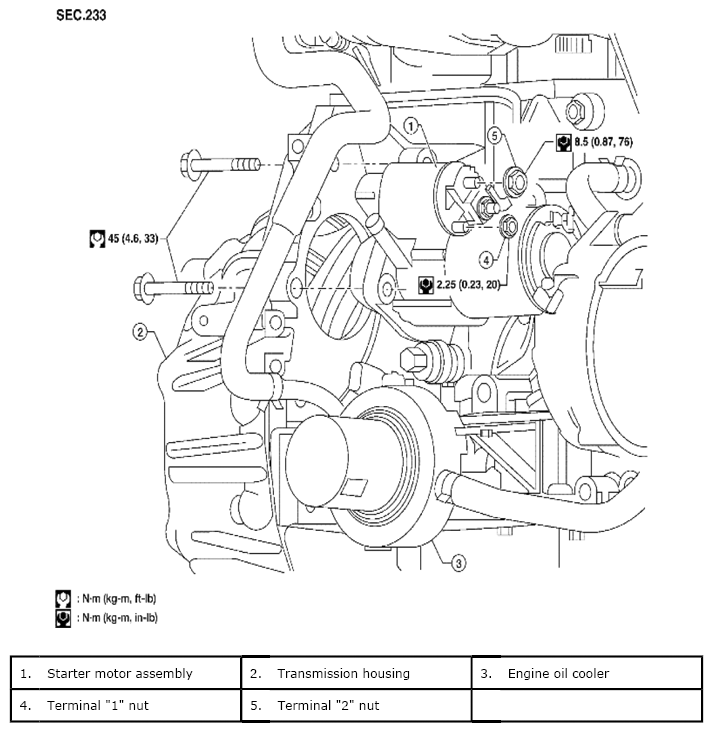

Fig 1: Identifying Starter Motor Removal And Installation (QR25DE)
G06444626Courtesy of SUZUKI OF AMERICA CORP.
