Oil Cooler: Removal and Installation: Installation

Installation is in the reverse order of removal, paying attention to the following.

• If replacement of the relief valve is necessary, install the new relief valve in place by tapping it in using suitable tool.
  CAUTION: Do not reuse relief valve.
• Confirm that no foreign objects are adhering to the sealing surfaces of the oil cooler and lower cylinder block.
• Tighten connector bolt after aligning cutout on oil cooler with protrusion on oil pan (upper) side.
  CAUTION: Do not reuse O-ring.

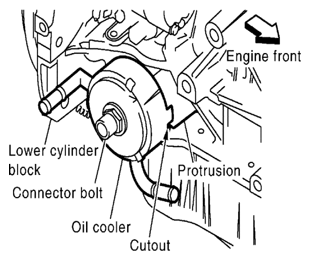

  Fig 1: Aligning Cutout On Oil Cooler With Protrusion On Lower Cylinder Block Side

  Courtesy of SUZUKI OF AMERICA CORP.
