Oil Cooler: Exploded View

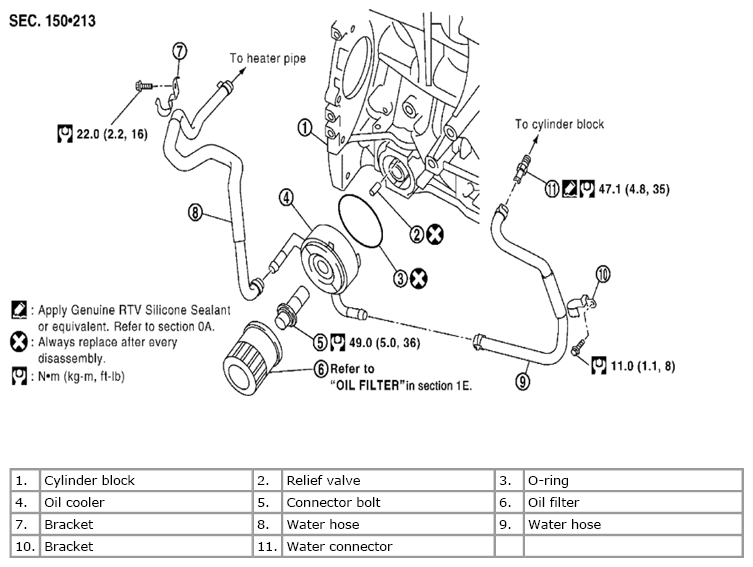

Fig 1: Exploded View Of Oil Cooler With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
