Exhaust Manifold and Three Way Catalyst: Exploded View [QR25DE]

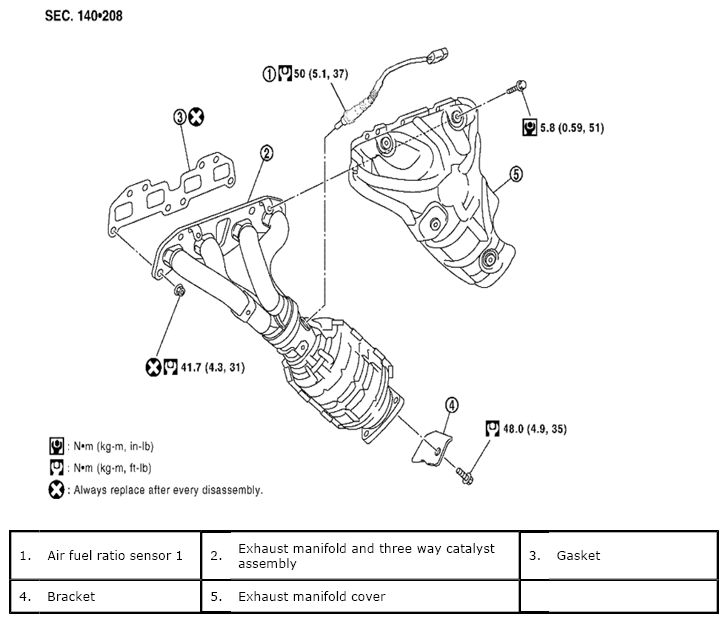

Fig 1: Exploded View Of Exhaust Manifold And Three Way Catalyst With Torque Specifications- QR25DE
G06444655Courtesy of SUZUKI OF AMERICA CORP.
