Valve Timing

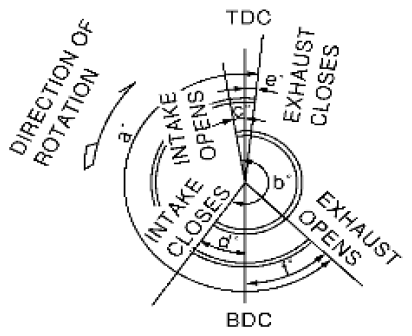

VALVE TIMING REFERENCE CHART
Valve timing
Courtesy of SUZUKI OF AMERICA CORP.
Unit: degree
a
b
c
d
e
f
236
224
-4
60
32
37
Courtesy of SUZUKI OF AMERICA CORP.
