Cylinder Head

CYLINDER HEAD SPECIFICATIONS

Unit: mm (in)
Items Limit
Head surface distortion 0.1 (0.004)
Items Standard
Camshaft bearing surface length 25.660 - 25.685 (1.0102 - 1.0112)

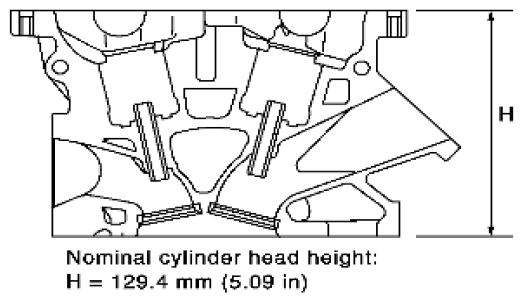

G06440860Courtesy of SUZUKI OF AMERICA CORP.
