Timing Chain: Removal and Installation: Installation

NOTE: The figure shows the relationship between the mating mark on each timing chain and that on the corresponding sprocket, with the components installed.
Fig 1: Relationship Diagram Between Mating Mark On Each Timing Chain And Corresponding Sprocket
G06440710Courtesy of SUZUKI OF AMERICA CORP.
  1. Make sure that crankshaft key points straight up.
  2. Install O-ring to balancer unit.
  3. Tighten bolts in numerical order as shown with the following procedure to install balancer unit, using Tool.
    CAUTION: Do not reuse O-ring.

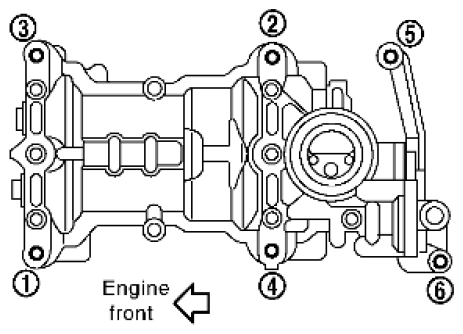

    Fig 2: Tightening Order Of Balancer Unit Bolts
    G06440711Courtesy of SUZUKI OF AMERICA CORP.

    Tool number: KV10112100 (BT8653-A)

    CAUTION: If bolts are re-used, check their outer diameter before installation. Follow the "Balancer Unit Bolt Outer Diameter" procedure.
    CAUTION:
    • Check tightening angle using Tool or a protractor. Do not make judgment by visual check alone.
    • In step 3, loosen bolts in reverse order as shown.
    NOTE: Apply new engine oil to threads and seat surfaces of bolts.

    Balancer bolt torque

    Step 1 bolts 1 - 4: 48.1 N.m (4.9 kg-m, 35 ft-lb)

    Step 2 bolts 1 - 4: 100° clockwise

    Step 3 bolts 1 - 4: 0 N.m (0 kg-m, 0 ft-lb)

    Step 4 bolts 1 - 4: 48.1 N.m (4.9 kg-m, 35 ft-lb)

    Step 5 bolts 1 - 4: 100° clockwise

    Step 6 bolts 5 - 6: 30.1 N.m (3.1 kg-m, 22 ft-lb)

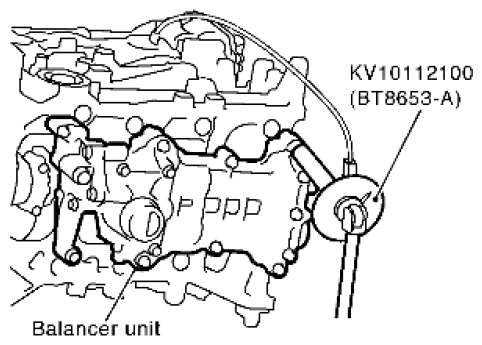

    Fig 3: Tightening Balancer Unit Bolt
    G06440712Courtesy of SUZUKI OF AMERICA CORP.
  4. Install crankshaft sprocket, balancer unit sprocket and balancer unit timing chain.

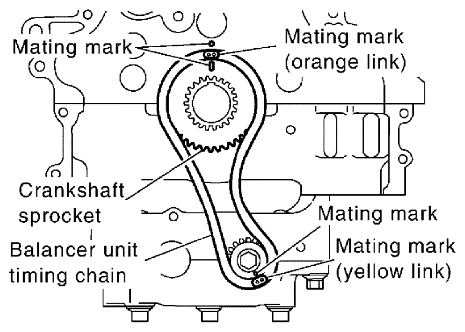

    Fig 4: Identifying Crankshaft Sprocket, Balancer Unit Timing Chain With Mating Marks
    G06440713Courtesy of SUZUKI OF AMERICA CORP.
    • Make sure that crankshaft sprocket is positioned with mating marks on cylinder block and crankshaft sprocket meeting at the top.
    • Install it by aligning mating marks on each sprocket and balancer unit timing chain.
    • Secure the hexagonal portion of the balancer shaft using a suitable tool. Tighten the balancer unit sprocket bolt to the specified torque.
      NOTE: Install crankshaft sprocket, balancer unit sprocket and balancer unit timing chain at the same time.
  5. Install balancer unit timing chain tensioner.

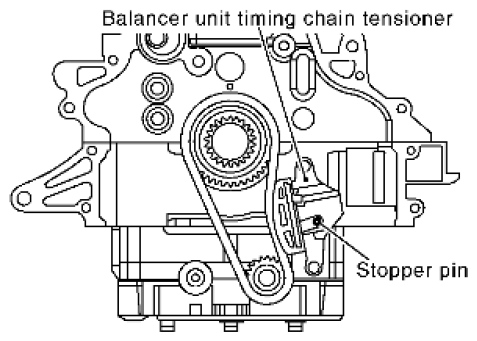

    Fig 5: Identifying Balancer Unit Timing Chain Tensioner And Stopper Pin
    G06440714Courtesy of SUZUKI OF AMERICA CORP.
    • After installation, make sure the mating marks have not slipped, then remove stopper pin and release tensioner sleeve.
  6. Install timing chain and related parts.

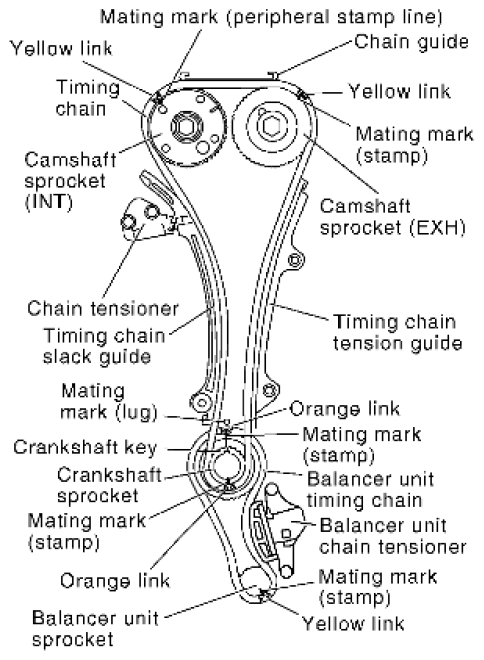

    Fig 6: Identifying Timing Chain With Related Components
    G06440715Courtesy of SUZUKI OF AMERICA CORP.
    • Install by aligning mating marks on each sprocket and timing chain.
    • Before and after installing chain tensioner, check again to make sure that mating marks have not slipped.
    • After installing chain tensioner, remove stopper pin, and make sure that tensioner moves freely.
      CAUTION:
      • For the following note, after the mating marks are aligned, keep them aligned by holding them with a hand.
      • To avoid skipped teeth, do not rotate crankshaft and camshaft until front cover is installed.
      NOTE: Before installing chain tensioner, it is possible to change the position of mating mark on timing chain for that on each sprocket for alignment.
  7. Install front oil seal to front cover. Refer to [FRONT OIL SEAL: REMOVAL AND INSTALLATION ].
  8. Install O-rings to cylinder head and cylinder block.
  9. Apply a continuous bead of liquid gasket with the tube presser to front cover as shown, using Tool.

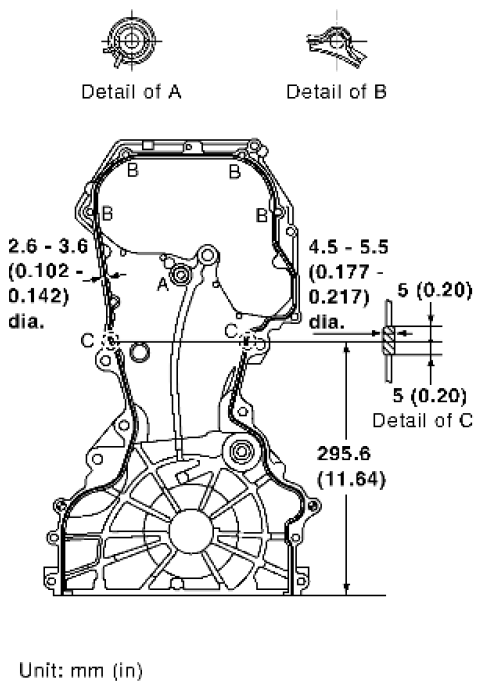

    Fig 7: Identifying Liquid Gasket Applying Specifications On Front Cover
    G06440716Courtesy of SUZUKI OF AMERICA CORP.

    Tool number: WS39930000 (-)

    Use Genuine RTV Silicone Sealant or equivalent.  Refer to [RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ].

    NOTE: Application instruction differs depending on the position.
    Detail of A: Cross over the start of the application and the end.
    Detail of B: Apply liquid gasket outside of bolt holes. (For all bolt holes other than B, apply to the inside.)
    Detail of C: Between here only, apply 4.5 - 5.5 mm (0.177 - 0.217 in) dia.
  10. Make sure that mating marks of timing chain and each sprocket are still aligned. Then install front cover.
    CAUTION: Be careful not to damage front oil seal by interference with front end of crankshaft.
  11. Tighten bolts in numerical order as shown.

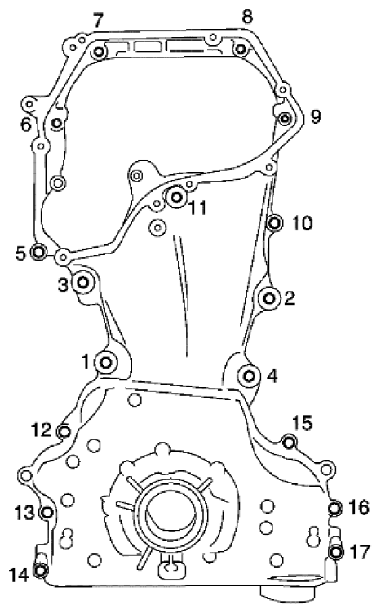

    Fig 8: Tightening Order Of Front Cover Bolts
    G06440717Courtesy of SUZUKI OF AMERICA CORP.
    • Use the following for locating M6 bolts.

      Bolt position Bolt length

      5, 10, 14, 17: 45 mm (1.77 in)

      Except the above: 20 mm (0.79 in)

      (Except 1 through 4)

    • Tighten bolts to the specified torque.

      Bolt position Torque specification

      5 through 17: 12.8 N.m (1.3 kg-m, 9 ft-lb)

      1 through 4: 49.0 N.m (5.0 kg-m, 36 ft-lb)

  12. After all bolts are tightened, retighten them to the specified torque in numerical order as shown.
    CAUTION: Be sure to wipe off any excessive liquid gasket leaking to surface for fitting oil pan.
  13. Install chain guide between camshaft sprockets.
  14. Install O-rings to the camshaft sprocket (INT) insertion points on backside of intake valve timing control cover.
  15. Install O-ring to front cover.
  16. Apply a continuous bead of liquid gasket using Tool to intake valve timing control cover as shown.

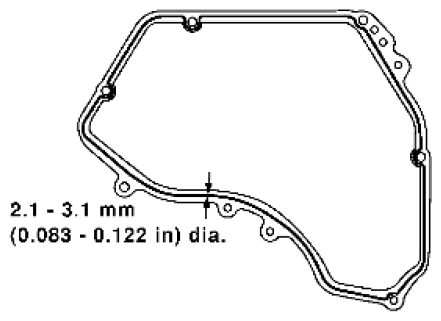

    Fig 9: Identifying Liquid Gasket Applying Specifications On Intake Valve Timing Control Cover
    G06440718Courtesy of SUZUKI OF AMERICA CORP.

    Tool number: WS39930000 (-)

    Use Genuine RTV Silicone Sealant or equivalent.  Refer to [RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ].

  17. Tighten bolts in numerical order as shown.

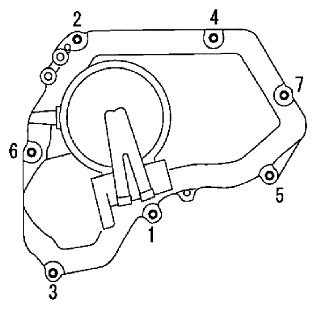

    Fig 10: Tightening Order Of Intake Valve Timing Control Cover Bolts
    G06440719Courtesy of SUZUKI OF AMERICA CORP.
  18. Install intake valve timing control solenoid valve to intake valve timing control cover if removed.
  19. Connect ground cables, and install harness clip.
  20. Insert crankshaft pulley by aligning with crankshaft key.
    • When inserting crankshaft pulley with a plastic hammer, tap on its center portion (not circumference).
      CAUTION: Do not damage front oil seal lip section.
  21. Tighten crankshaft pulley bolt using Tool.

    Tool number: KV10112100 (BT-8653-A)

    • Secure crankshaft pulley using suitable tool, and tighten crankshaft pulley bolt.
      1. Apply new engine oil to thread and seat surfaces of crankshaft pulley bolt.
      2. Tighten crankshaft pulley bolt.

        : 42.1 N.m (4.3 kg-m, 31 ft-lb)

      3. Put a paint mark on crankshaft pulley, mating with any one of six easy to recognize angle marks on bolt flange.

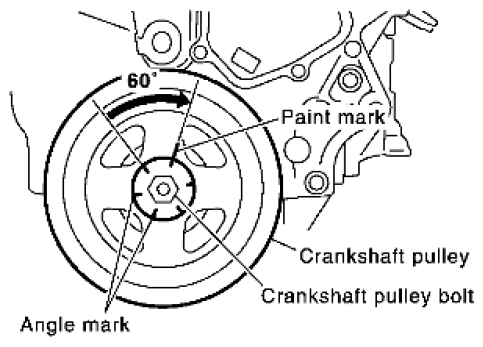

        Fig 11: Tightening Position Of Crankshaft Pulley Bolt
        G06440720Courtesy of SUZUKI OF AMERICA CORP.
      4. Turn another 60° degrees clockwise (angle tightening).
    • Check the tightening angle with movement of one angle mark.
  22. Installation is in the reverse order of removal.
