Timing Chain: Exploded View

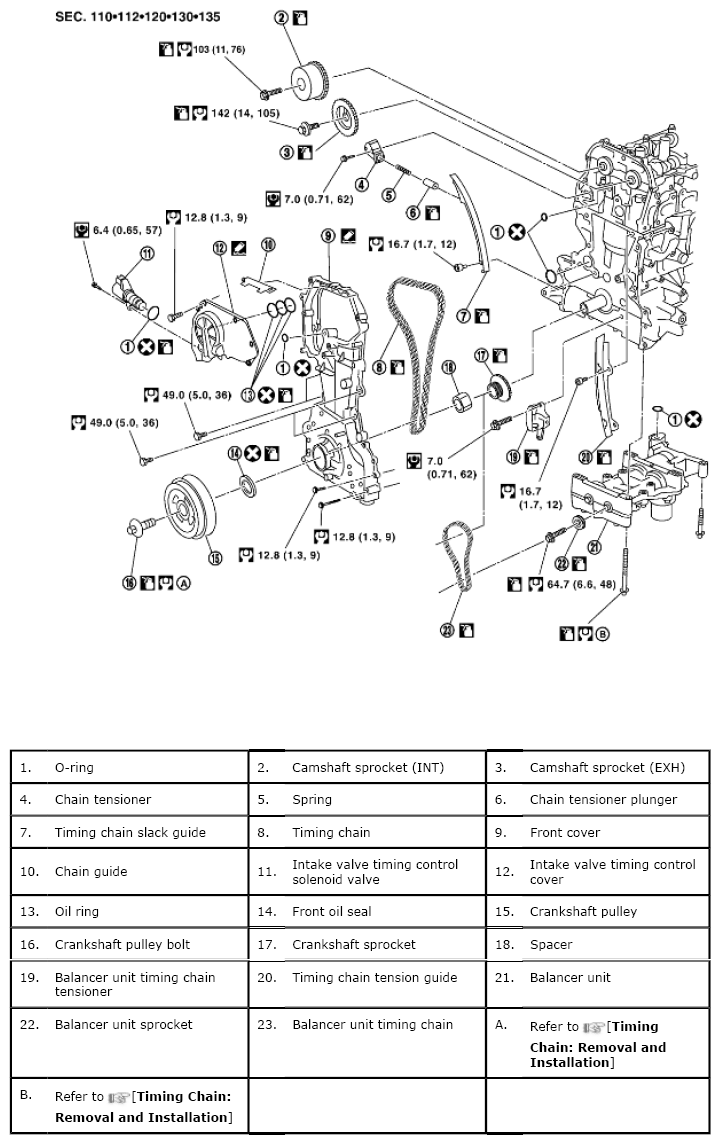

Fig 1: Exploded View Of Timing Chain

G06440697

Courtesy of SUZUKI OF AMERICA CORP.
