Rocker Cover: Removal and Installation: Removal
- Remove intake manifold. Refer to INTAKE MANIFOLD: REMOVAL AND INSTALLATION .
- Disconnect PCV hose from rocker cover.
- Remove ignition coils. Refer to IGNITION COIL: REMOVAL AND INSTALLATION
- Remove PCV valve and O-ring from rocker cover, if necessary.
- Remove oil filler cap from rocker cover, if necessary.

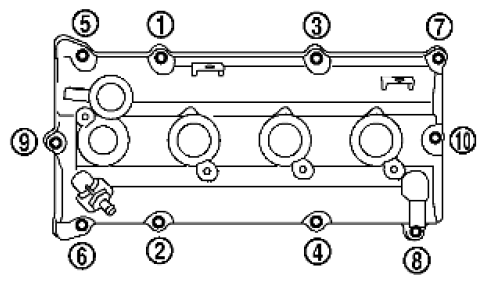

- Loosen bolts in reverse order as shown.
- Remove rocker cover gasket from rocker cover.
- Use scraper to remove all traces of liquid gasket from cylinder head and camshaft bracket (No. 1).CAUTION: Do not scratch or damage the mating surface when cleaning off old liquid gasket.
