Intake Manifold and Fuel Tube Protector

If stud bolts were removed, install them and tighten to the specified torque below.
Intake manifold bolts: 9.4 N.m (0.96 kg-m, 83 in-lb)
Tighten in numerical order as shown.

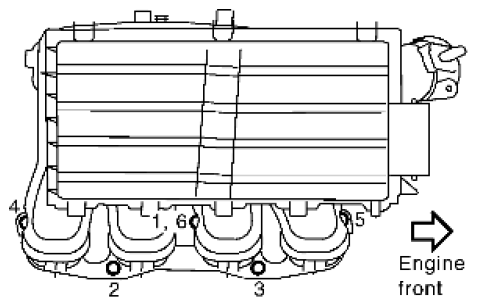

Fig 1: Tightening Order Of Intake Manifold Nuts And Bolts
Courtesy of SUZUKI OF AMERICA CORP.

NOTE: No. 6 means double tightening of bolt No. 1.

Use the following for locating bolts and nuts.

M8 x 38 mm (1.50 in) (Color green): No. 1, 6

M8 x 35 mm (1.38 in): No. 2, 3

Nut: No. 4, 5
