Electric Throttle Control Actuator

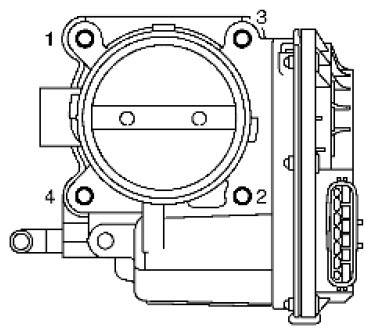

- Tighten bolts equally and diagonally in several steps and in numerical order as shown.
Courtesy of SUZUKI OF AMERICA CORP.
- Perform the "Throttle Valve Closed Position Learning" when harness connector of electric throttle control actuator is disconnected. Refer to
[THROTTLE VALVE CLOSED POSITION LEARNING
]
- Perform the "Idle Air Volume Learning" and "Throttle Valve Closed Position Learning" when electric throttle control actuator is replaced. Refer to
[IDLE AIR VOLUME LEARNING
]
