Connecting Rod Bearing Selection Table

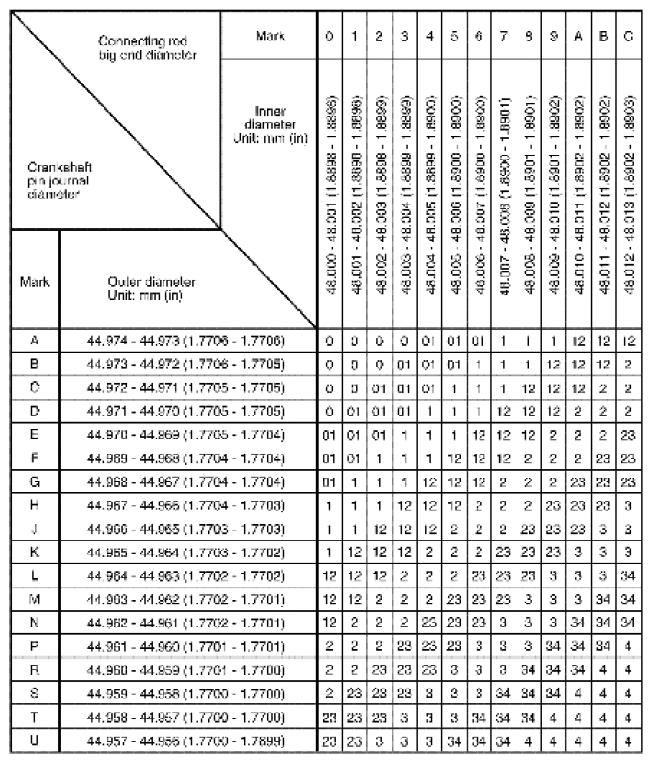

Fig 1: Connecting Rod Bearing Selection Reference Chart
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
