Piston Pin Outer Diameter

Measure the outer diameter of piston pin with a micrometer.

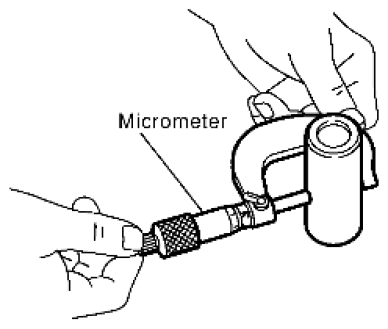

Fig 1: Measuring Piston Pin Outer Diameter
G06440823Courtesy of SUZUKI OF AMERICA CORP.

Standard: 19.989 - 20.001 mm (0.7870 - 0.7874 in)
