Piston Pin Hole Diameter

Measure the inner diameter of piston pin hole with an inside micrometer.

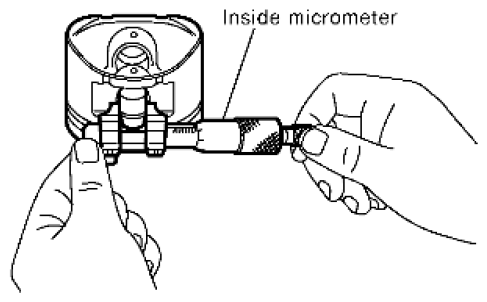

Fig 1: Measuring Inner Diameter Of Piston Pin Hole

Courtesy of SUZUKI OF AMERICA CORP.

Standard: 19.993 - 20.005 mm (0.7871 - 0.7876 in)
