Crankshaft RUNOUT

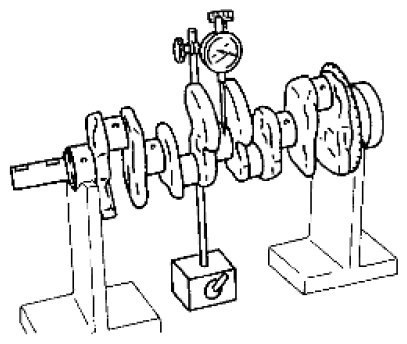

- Place a V-block on a precise flat table to support the journals on the both end of crankshaft.
- Place a dial indicator straight up on the No. 3 journal.
- While rotating crankshaft, read the movement of the pointer on the dial indicator. (Total indicator reading)
Limit: 0.05 mm (0.0020 in)
- If it exceeds the limit, replace crankshaft.
