Connecting Rod Bushing Inner Diameter

Measure the inner diameter of connecting rod bushing with an inside micrometer.

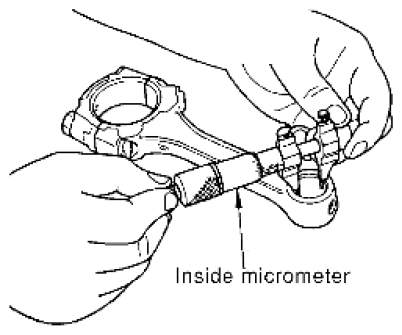

Fig 1: Measuring Connecting Rod Bushing Inner Diameter

Courtesy of SUZUKI OF AMERICA CORP.

Standard: 20.000 - 20.012 mm (0.7874 - 0.7879 in)
