Connecting Rod Bend And Torsion

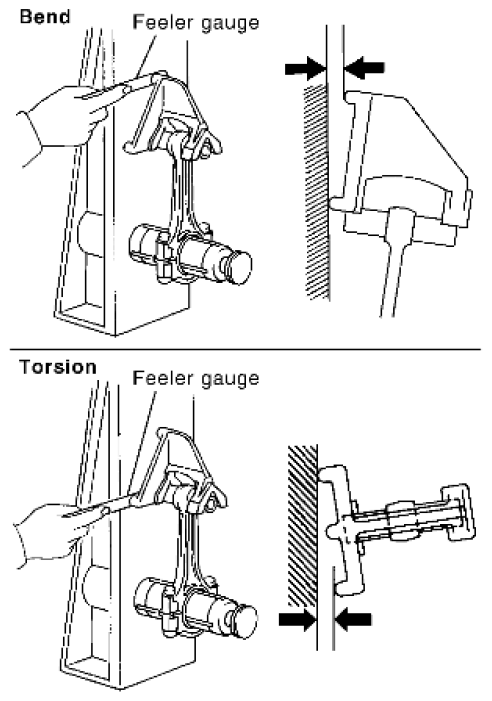

Fig 1: Checking Connecting Rod Bend And Torsion

Courtesy of SUZUKI OF AMERICA CORP.

Bend:

Limit: 0.15 mm (0.0059 in) per 100 mm (3.94 in) length

Torsion:

Limit: 0.30 mm (0.0118 in) per 100 mm (3.94 in) length
