Engine Unit: Disassembly and Assembly: Disassembly

NOTE: The following procedures explain how to disassemble the engine with the engine stand fastened to the bell housing. Some steps may be different if using a different type of engine stand.
  1. Remove the engine and the transmission assembly from the vehicle, and separate the transmission assembly from the engine. Refer to Engine Assembly: Removal and Installation  .
  2. Remove clutch cover and clutch disc (M/T models). Refer to [CLUTCH DISC, CLUTCH COVER: REMOVAL AND INSTALLATION [5M/T] ]
  3. Remove flywheel (M/T models) or drive plate (A/T models) with power tool.

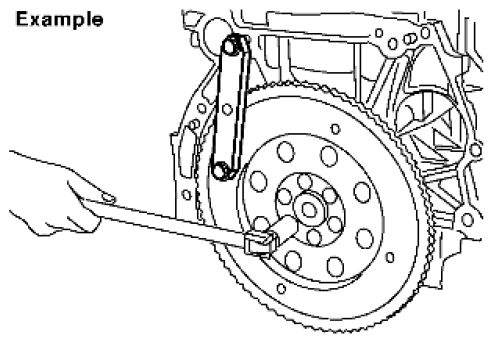

    Fig 1: Removing Flywheel Using Power Tool
    G06440790Courtesy of SUZUKI OF AMERICA CORP.
    • Secure crankshaft with a stopper plate, and remove bolts.

      Flywheel (M/T models): size T55 (commercial service tool)

      Drive plate (A/T models): size E20

    CAUTION:
    • Be careful not to damage or scratch drive plate (A/T models) and contact surface for clutch disc of flywheel (M/T models).
      Fig 2: View of Signal Plate
      G00537340Courtesy of SUZUKI OF AMERICA CORP.
    • Place the drive plate or flywheel with signal plate surface facing other than downward.
    • Keep magnetic materials away from signal plate.
    NOTE: The flywheel, two block construction, allows movement in response to transmission side pressure, or when rotated. Therefore, some amount of noise is normal.
  4. Remove the parts that may restrict installation of engine to engine stand.
    1. Remove drive plate (A/T models) or flywheel (M/T models).
      • Holding crankshaft pulley bolts, lock crankshaft to remove flywheel or drive plate bolts.
      • Loosen bolts diagonally.
    2. Remove generator. Refer to [GENERATOR: REMOVAL AND INSTALLATION - QR25DE MODELS ].
    3. Remove engine mounting insulator bracket (upper) with power tool.
  5. Lift engine, and mount to engine stand. Any commercially available engine stand can be used.

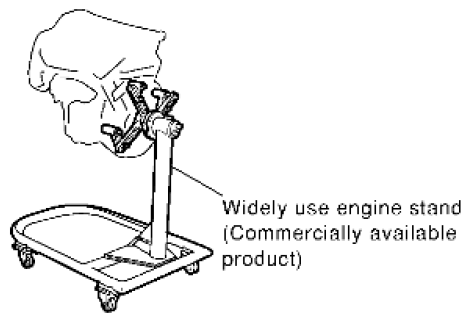

    Fig 3: Identifying Widely Used Engine Stand
    G06440791Courtesy of SUZUKI OF AMERICA CORP.
    CAUTION:
    • Use engine stand that has a load capacity [approximately 240kg (529 lb) or more] large enough for supporting the engine weight.
    • Before removing the hanging chains, make sure the engine stand is stable and there is no risk of overturning.
  6. Drain engine oil. Refer to [CHANGING ENGINE OIL ]
  7. Drain engine coolant by removing water drain plug from side of the engine.

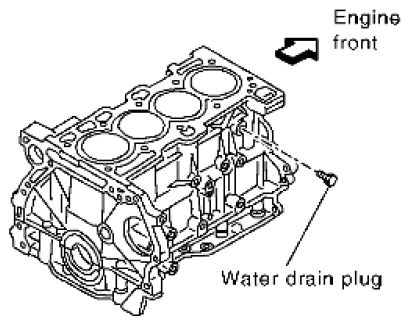

    Fig 4: Identifying Water Drain Plug
    G06440792Courtesy of SUZUKI OF AMERICA CORP.
  8. Remove cylinder head. Refer to [CYLINDER HEAD: REMOVAL AND INSTALLATION ].
  9. Remove knock sensor.
    CAUTION: Carefully handle knock sensor avoiding shocks.
  10. Remove crankshaft position sensor (POS).

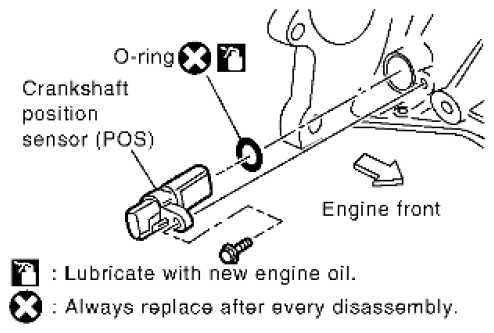

    Fig 5: Identifying Crankshaft Position Sensor, O-Ring And Mounting Bolt
    G06440793Courtesy of SUZUKI OF AMERICA CORP.
    CAUTION:
    • Avoid impacts such as a dropping.
    • Do not disassemble.
    • Keep it away from metal particles.
    • Do not place the sensor in a location where it is exposed to magnetism.
  11. Remove oil pressure switch using a suitable tool.
    CAUTION: Do not drop or shock oil pressure switch.
  12. Remove pilot converter (A/T models) or pilot bushing (M/T models) using Tool.

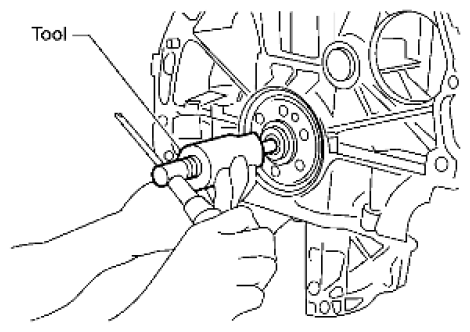

    Fig 6: Removing Pilot Converter Or Pilot Bushing Using Tool
    G06440794Courtesy of SUZUKI OF AMERICA CORP.

    Tool number: ST16610001 (J-23907)

  13. Remove piston and connecting rod assembly as follows:
    • Before removing piston and connecting rod assembly, check the connecting rod side clearance. Refer to [ENGINE UNIT: INSPECTION AFTER DISASSEMBLY ].
      CAUTION: Be careful no to drop connecting rod bearing, and to scratch the surface.
  14. Position crankshaft pin corresponding to connecting rod to be removed onto the bottom dead center.
  15. Remove connecting rod bearing cap.
  16. Push piston and connecting rod assembly out to the cylinder head side using suitable tool.

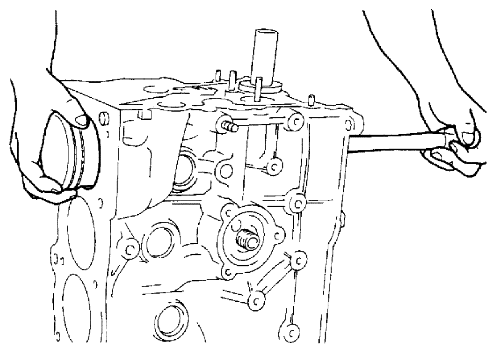

    Fig 7: Pushing Piston And Connecting Rod Assembly Using Suitable Tool
    G06440795Courtesy of SUZUKI OF AMERICA CORP.
    CAUTION: Be careful not to damage the cylinder wall and crankshaft pin, resulting from an interference of the connecting rod big end.
  17. Remove connecting rod bearings from connecting rod and connecting rod bearing cap.
    CAUTION: Identify installation position, and store them without mixing them up.
  18. Remove piston rings from piston.
    • Before removing piston rings, check the piston ring side clearance. Refer to [ENGINE UNIT: INSPECTION AFTER DISASSEMBLY ].
    • Remove piston rings using piston ring expander or suitable tool.

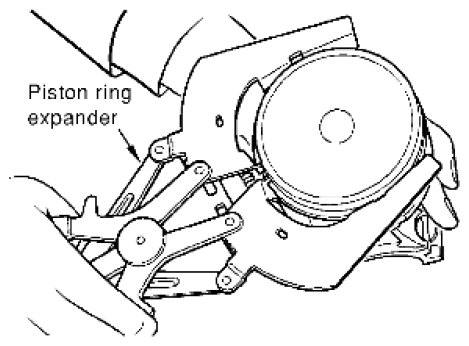

      Fig 8: Removing Piston Rings Using Piston Ring Expander
      G06440796Courtesy of SUZUKI OF AMERICA CORP.
      CAUTION:
      • When removing piston rings, be careful not to damage piston.
      • Be careful not to damage piston rings by expanding them excessively.
  19. Remove piston from connecting rod as follows:
    1. Remove snap rings using snap ring pliers.

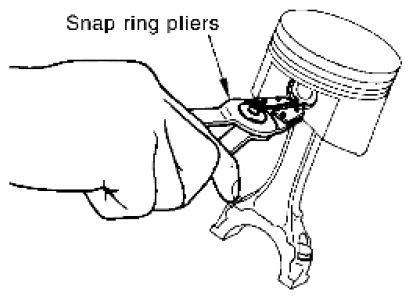

      Fig 9: Removing Snap Rings Using Snap Ring Plier
      G06440797Courtesy of SUZUKI OF AMERICA CORP.
    2. Heat piston to 60° to 70°C (140° to 158°F) with an industrial use drier or equivalent.

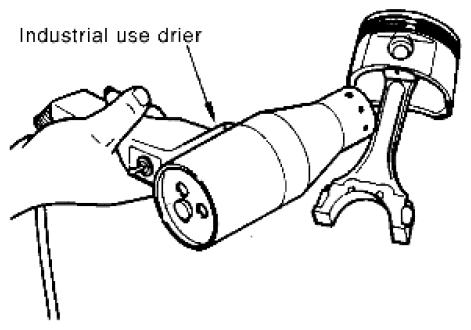

      Fig 10: Heating Piston Using Industrial Use Drier
      G06440798Courtesy of SUZUKI OF AMERICA CORP.
    3. Push out piston pin with stick of outer diameter approximately 19 mm (0.75 in).

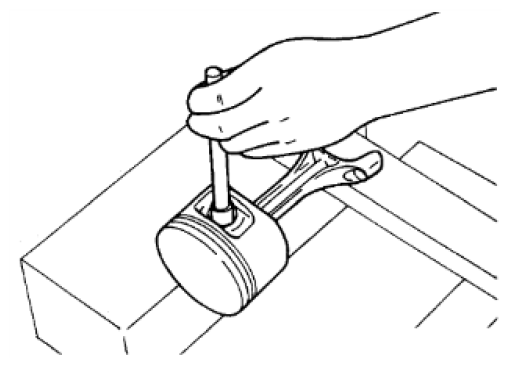

      Fig 11: Pushing Out Piston Pin
      G06440799Courtesy of SUZUKI OF AMERICA CORP.
  20. Remove lower cylinder block bolts.
    • Before loosening lower cylinder block bolts, measure crankshaft end play. Refer to [ENGINE UNIT: INSPECTION AFTER DISASSEMBLY ].
    • Loosen lower cylinder block bolts in reverse order as shown in several different steps.

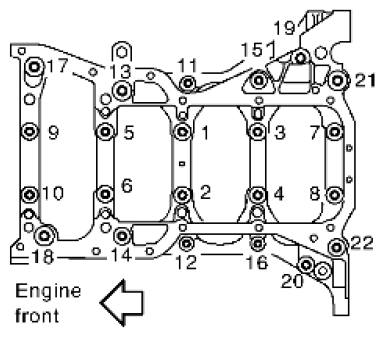

      Fig 12: Tightening Order Of Lower Cylinder Block Bolts
      G06440800Courtesy of SUZUKI OF AMERICA CORP.
      NOTE: Use TORX socket (size E14) for bolts No. 1 to 10.
  21. Remove lower cylinder block.
    • Use Tool to cut liquid gasket for removal.

      Tool number: KV10111100 (J-37228)

      CAUTION: Be careful not to damage the mounting surfaces.
  22. Remove crankshaft.
    CAUTION:
    • Be careful not damage or deform signal plate mounted on crankshaft.

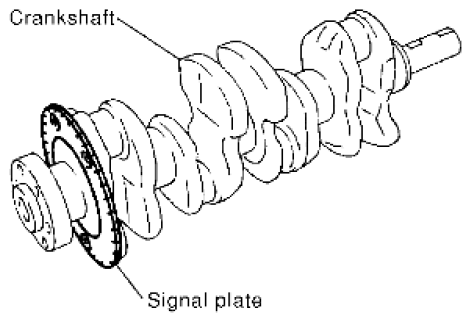

      Fig 13: Identifying Crankshaft And Signal Plate
      G06440801Courtesy of SUZUKI OF AMERICA CORP.
    • When setting crankshaft on a flat floor surface, use a block of wood to avoid interference between signal plate and the floor surface.
    • Do not remove signal plate unless it is necessary to do so.
    NOTE: When removing or installing signal plate, use TORX socket (size T30).
  23. Pull rear oil seal out from rear end of crankshaft.
    NOTE: When replacing rear oil seal without removing lower cylinder block, use a suitable tool to remove the oil seal installed between crankshaft and cylinder block out.
    CAUTION: Be careful not to damage crankshaft and cylinder block.
  24. Remove main bearings and thrust bearings from cylinder block and lower cylinder block.
    CAUTION:
    • Do not drop main bearing, or scratch the surface.
    • Identify installation positions, and store them without mixing them up.
