Engine Assembly: Exploded View

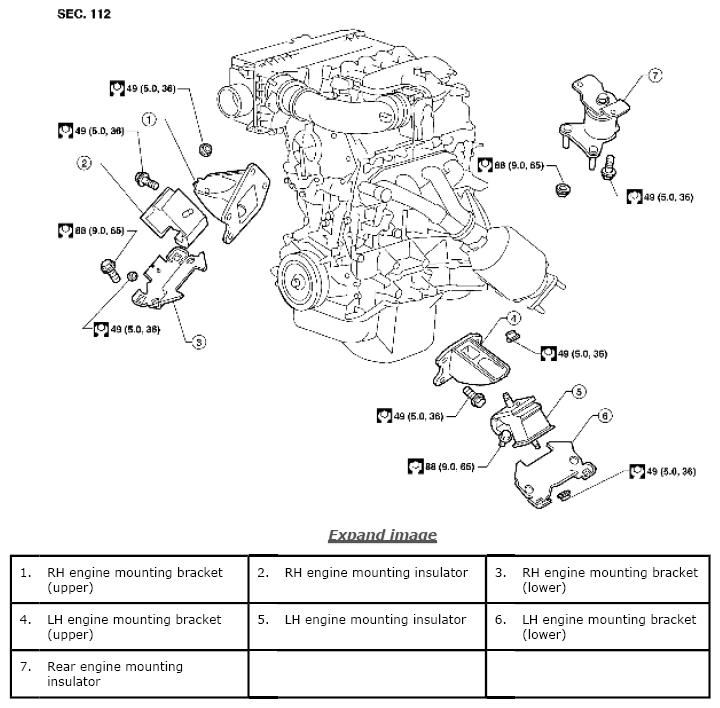

Fig 1: Exploded View Of Engine Assembly
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
