Drive Belts: Exploded View

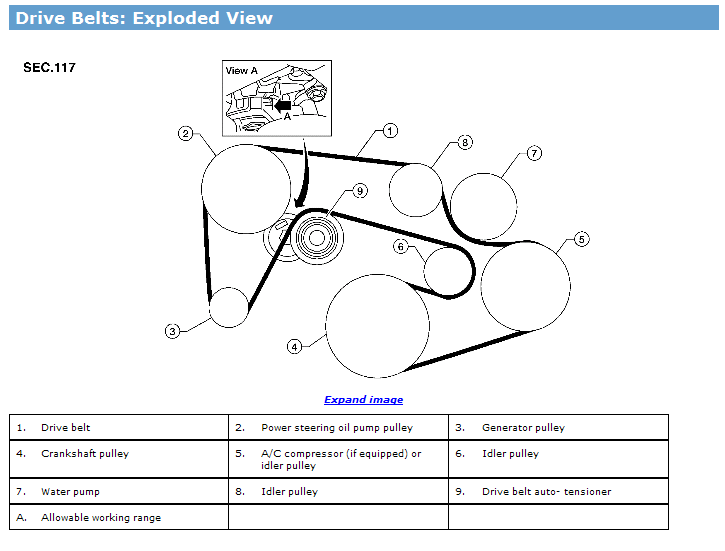

Fig 1: Drive Belts: Exploded View
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
