Valve Spring Dimensions And Valve Spring Pressure Load

Check valve spring pressure with valve spring seat installed at the specified spring height. Refer to [SERVICE DATA AND SPECIFICATIONS ].

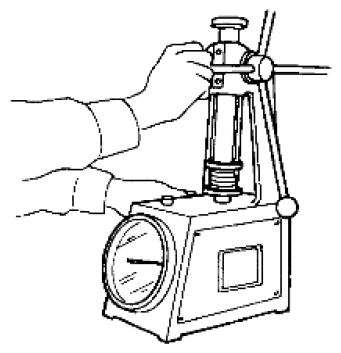

Fig 1: Checking Valve Spring Pressure
Courtesy of SUZUKI OF AMERICA CORP.

CAUTION: Do not remove valve spring seat from valve spring.
If the installation load or load with valve open is out of the standard, replace valve spring.
