Cylinder Head: Exploded View (2)

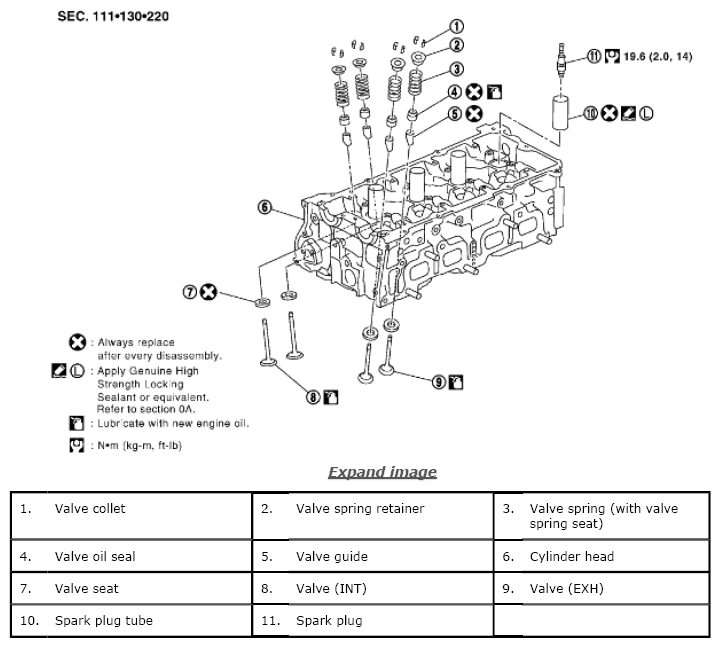

Fig 1: Exploded View Of Cylinder Head

G06440764

Courtesy of SUZUKI OF AMERICA CORP.
