Cylinder Head: Disassembly and Assembly: Disassembly

Remove spark plug.
Remove valve lifter.
- Identify installation positions, and store them without mixing them up.
Remove valve collet, valve spring retainer and valve spring using Tool.

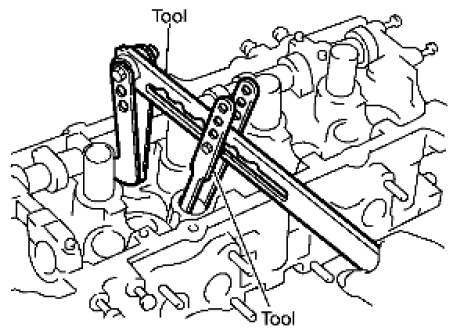

Fig 1: Removing Valve Collet, Valve Spring Retainer And Valve Spring Using Tool
Courtesy of SUZUKI OF AMERICA CORP.

Tool numbers: KV10116200 (J-26336 - A)

: KV10115900 (J-26336 -20)
CAUTION:
- When working, be careful not to damage valve lifter holes.
- Do not remove valve spring seat from valve spring.
Push valve stem to combustion chamber side, and remove valve.
- Identify installation positions, and store them without mixing them up.
Remove valve oil seal using Tool.

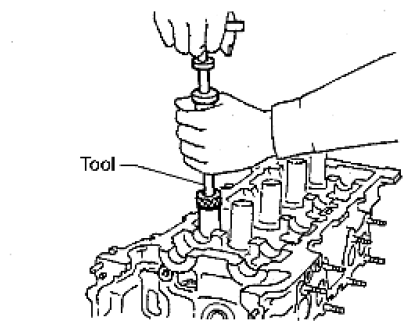

Fig 2: Removing Valve Oil Seal Using Tool
Courtesy of SUZUKI OF AMERICA CORP.

Tool numbers: KV10115600 (J-38958)
When valve seat must be replaced, refer to [CYLINDER HEAD: INSPECTION AFTER DISASSEMBLY ].
When valve guide must be replaced, refer to [CYLINDER HEAD: INSPECTION AFTER DISASSEMBLY ].
Remove spark plug tube, if necessary.
- Remove it from cylinder head using suitable tool.
  CAUTION:
  - Be careful not to damage cylinder head.
  - Once removed, spark plug tube will be deformed and cannot be reused. Do not remove it unless absolutely necessary.
