Starter Motor: Removal and Installation (VQ40DE): Removal

  1. Disconnect the negative battery terminal.
  2. Remove starter cover bolts and starter cover.
  3. Disconnect terminal "1" (S) connector and remove terminal "2" (B) nut.

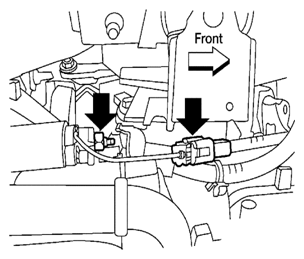

    Fig 1: Locating Terminal 1 Connector And Terminal 2 Nut
    G06444628Courtesy of SUZUKI OF AMERICA CORP.
  4. Remove the two starter motor bolts, using power tools.
  5. Remove the starter motor.
