Diagnosis Procedure
Regarding Wiring Diagram information, refer to [STARTING SYSTEM: WIRING DIAGRAM [VQ40DE WITH CLUTCH INTERLOCK CANCEL SWITCH] ], [STARTING SYSTEM: WIRING DIAGRAM [VQ40DE WITHOUT CLUTCH INTERLOCK CANCEL SWITCH] ] or [STARTING SYSTEM: WIRING DIAGRAM [QR25DE] ].
CAUTION:
Perform diagnosis under the condition that the engine cannot start by the following procedure.
- Remove fuel pump fuse.
- Crank or start the engine (where possible) until the fuel pressure is depleted.
DIAGNOSIS PROCEDURE CHART
| Step | Action | YES | NO |
|---|---|---|---|
| 1 | CHECK TERMINAL 2 POWER SUPPLY VOLTAGE
Is there battery voltage present? |
GO TO 2 | Check harness between battery and starter motor for open circuit. |
| 2 | CHECK BATTERY CABLE (VOLTAGE DROP TEST)
Is the voltage drop less than 0.2V? |
GO TO 3 | Check harness between the battery and the starter motor for high resistance. |

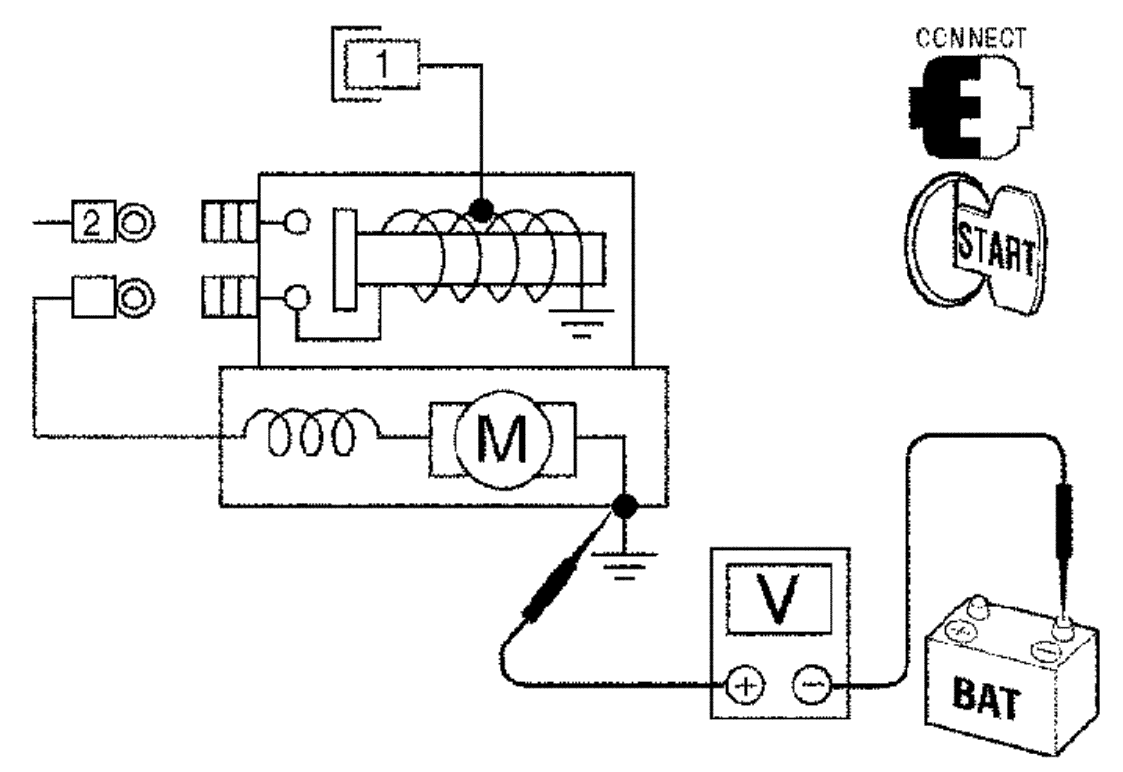

| 3 | CHECK GROUND CIRCUIT STATUS (VOLTAGE DROP TEST) Check voltage between starter motor case and battery negative terminal while cranking the engine. Is the voltage drop less than 0.2V? |
Terminal 2 circuit is OK. Further inspection necessary. Refer to [DIAGNOSIS AND REPAIR WORKFLOW ]. | Check the starter motor case to engine mounting for high resistance. |
