Diagnosis Procedure
Regarding Wiring Diagram information, refer to WARNING CHIME SYSTEM: WIRING DIAGRAM .
DIAGNOSIS PROCEDURE CHART
| Step | Action | YES | NO |
|---|---|---|---|
| 1 | CHECK COMBINATION METER INPUT SIGNAL
Is the inspection result normal? |
Replace combination meter. Refer to [COMBINATION METER: REMOVAL AND INSTALLATION ]. | GO TO 2 |

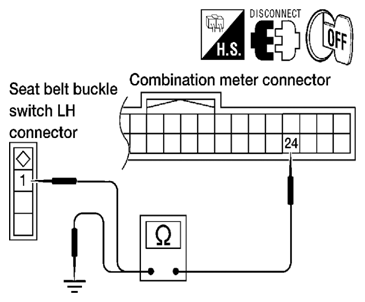

| 2 | CHECK SEAT BELT BUCKLE SWITCH CIRCUIT
Is the inspection result normal? |
GO TO 3 | Repair or replace harness. |
| 3 | CHECK SEAT BELT BUCKLE SWITCH GROUND CIRCUIT Check continuity between seat belt buckle switch LH harness connector B12 terminal 2 and ground. 2 - Ground: Continuity should exist. Is the inspection result normal? |
Inspection End. | Repair or replace harness. |
