Instrument Lower Panel LH: Removal and Installation: Removal

  1. Remove front pillar lower finisher. Refer to [BODY SIDE TRIM: REMOVAL AND INSTALLATION ]
  2. Remove instrument lower panel (LH) screws.

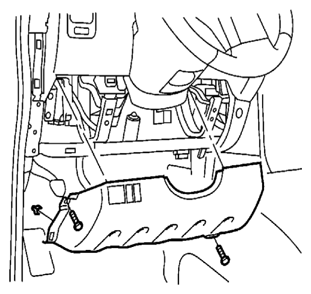

    Fig 1: Identifying Lower Instrument Panel LH Screws
    G06443225Courtesy of SUZUKI OF AMERICA CORP.
  3. Pull rearward to release lower instrument panel LH.
  4. Disconnect lower instrument panel LH harness connectors.
