Specific Gravity Check

NOTE: Check the charge condition of the battery.

Periodically check the specific gravity of the electrolyte. Keep a close check on charge condition to prevent over-discharge.

  1. Read hydrometer and thermometer indications at eye level.

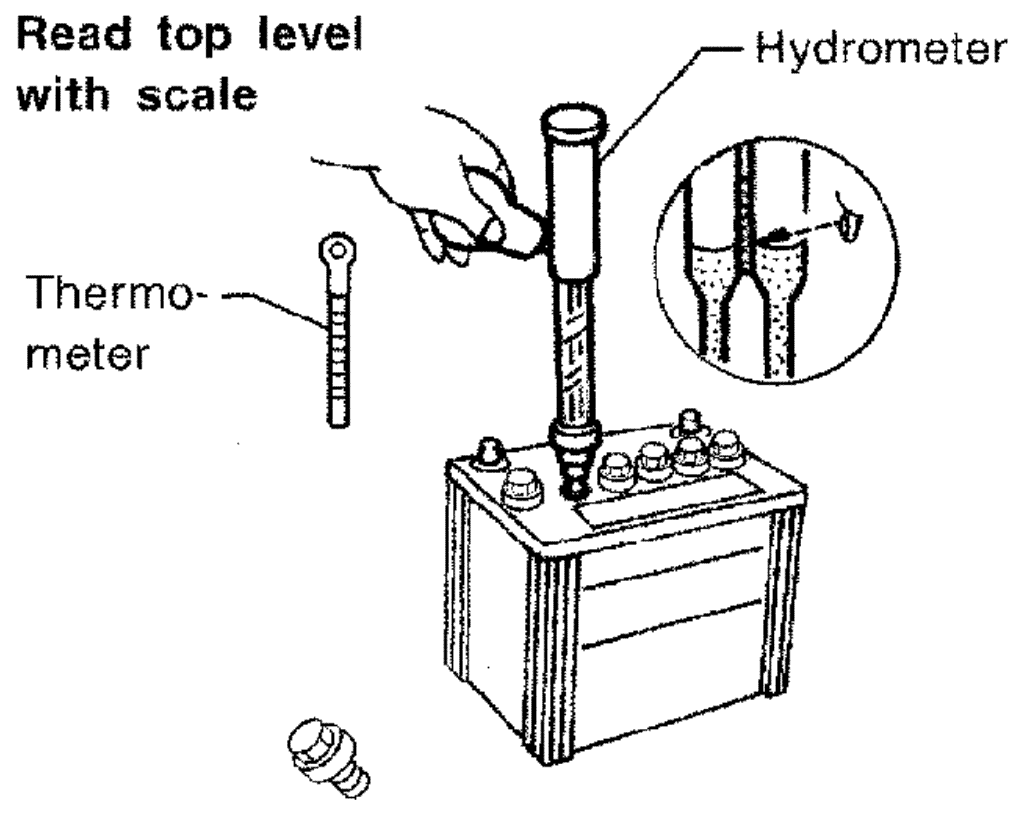

    Fig 1: Checking Hydrometer & Thermometer Level
    G00534186Courtesy of SUZUKI OF AMERICA CORP.
  2. Use the chart below to correct your hydrometer reading according to electrolyte temperature.
