Warning Chime System: Wiring Diagram

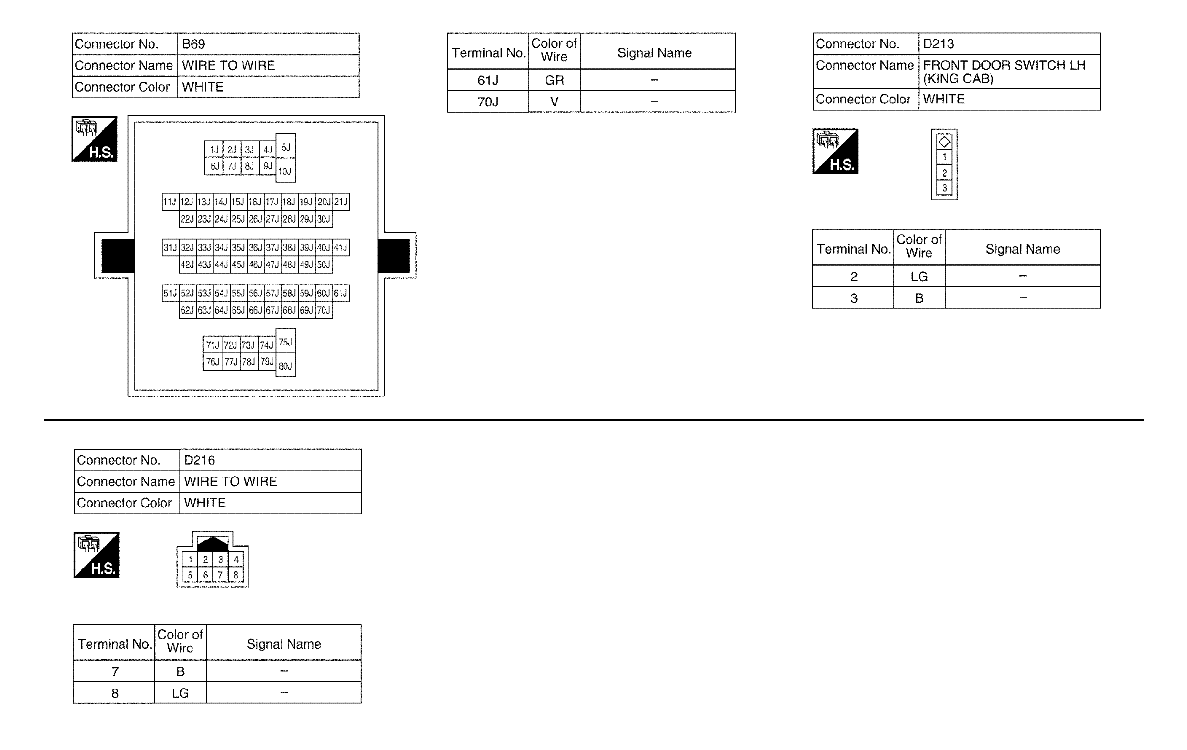

Fig 1: Warning Chime System - Wiring Diagram (1 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.

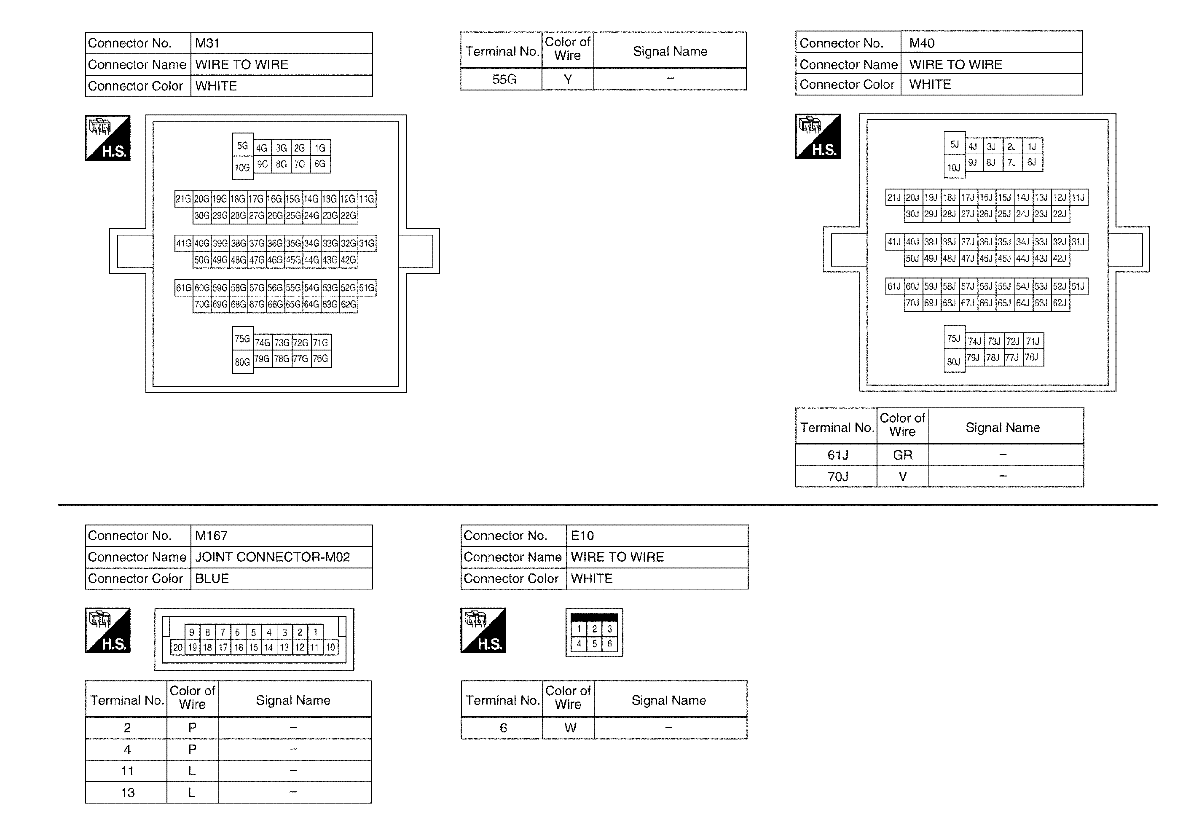

Fig 2: Warning Chime System - Wiring Diagram (2 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.

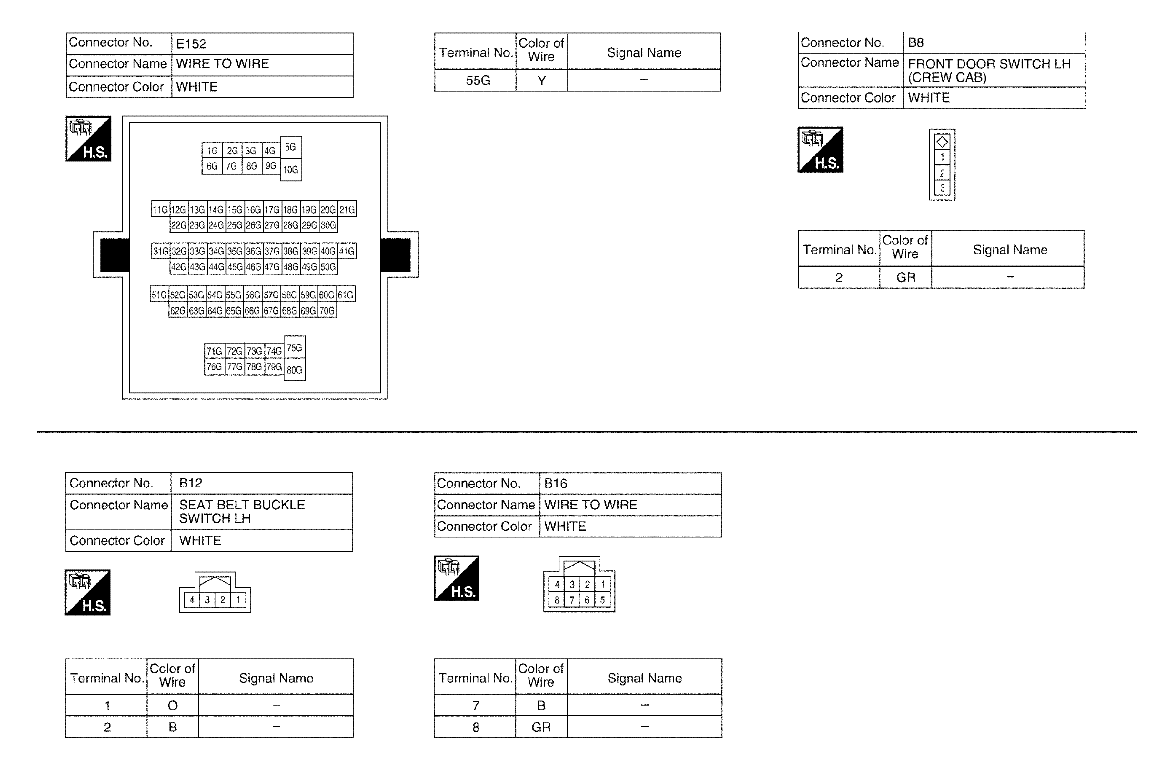

Fig 3: Warning Chime System - Wiring Diagram (3 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.

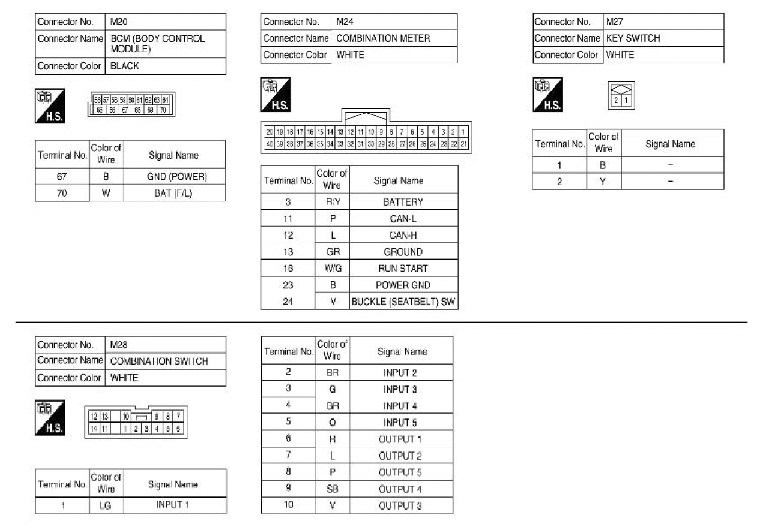

Fig 4: Warning Chime System - Wiring Diagram (4 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.

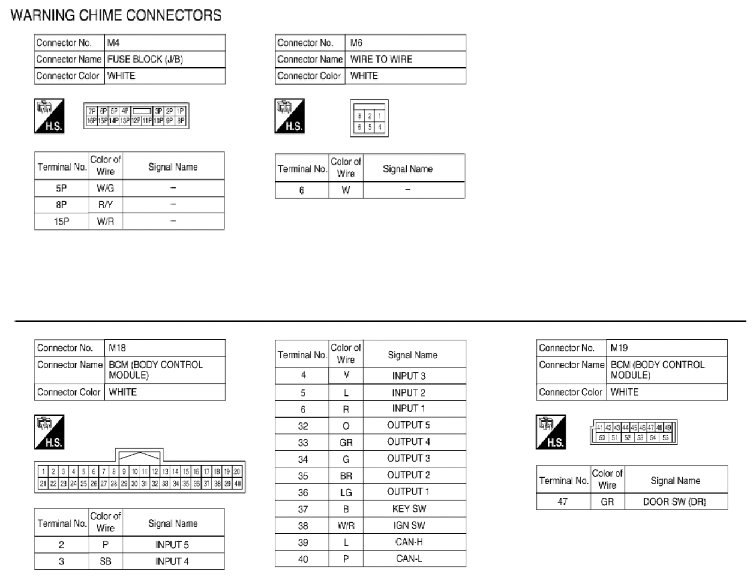

Fig 5: Warning Chime System - Wiring Diagram (5 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.

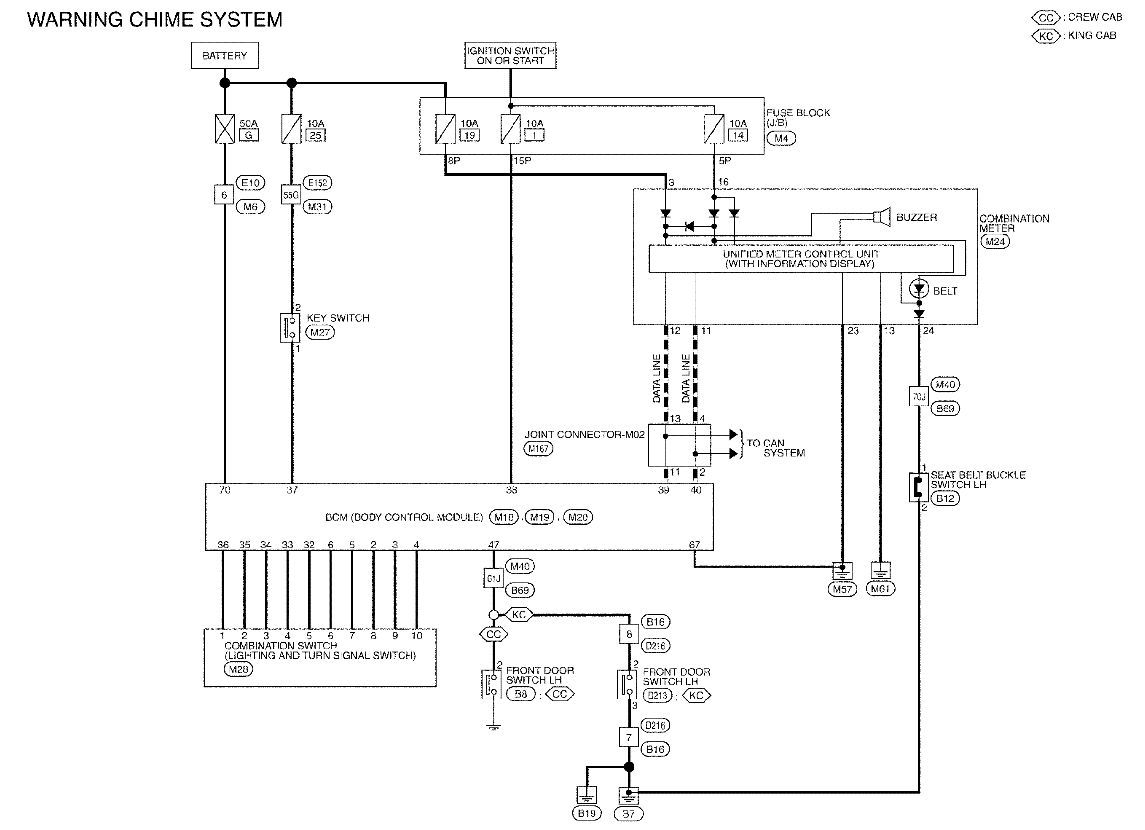

Fig 6: Warning Chime System - Wiring Diagram (6 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.
