Vehicle Security System: Wiring Diagram [King Cab]

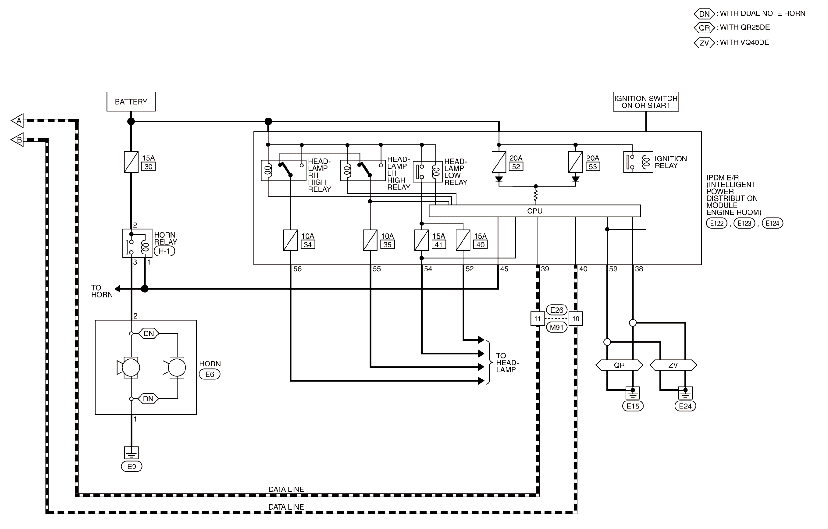

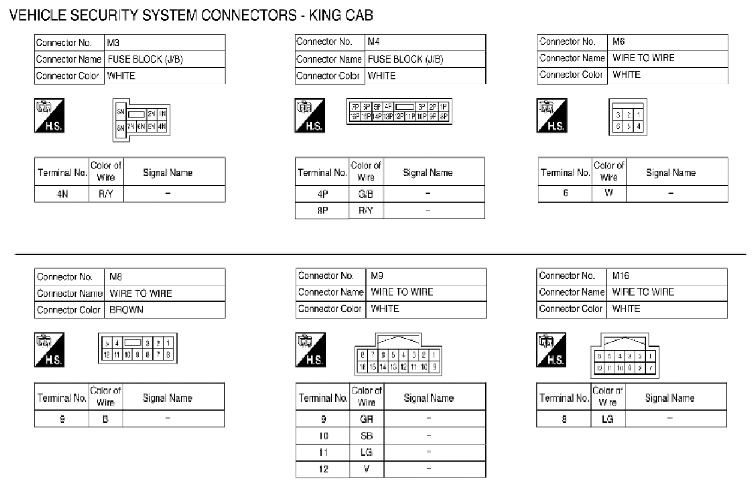

Fig 1: Vehicle Security System - Wiring Diagram [King Cab] (1 Of 10)

Courtesy of SUZUKI OF AMERICA CORP.

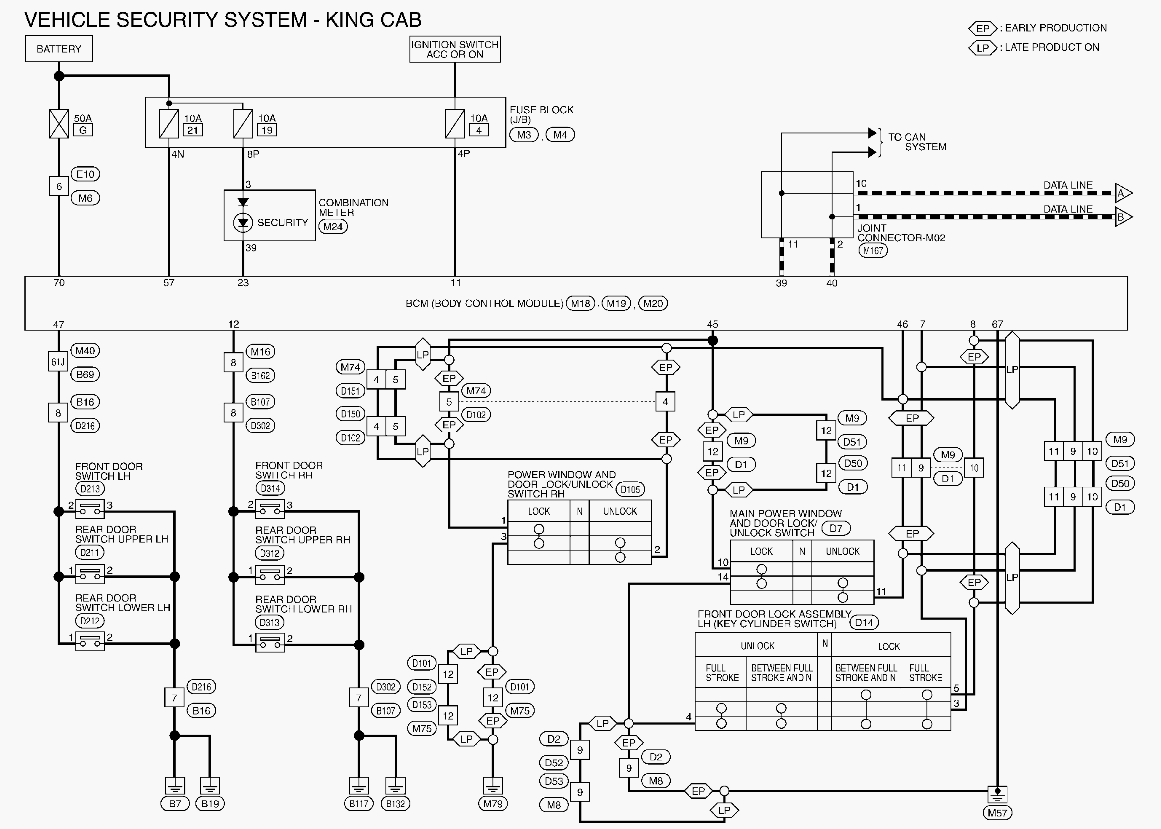

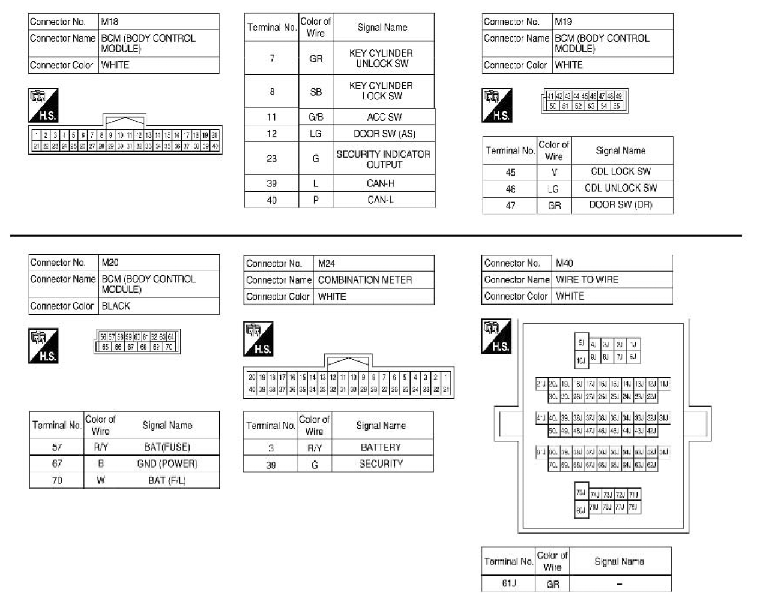

Fig 2: Vehicle Security System - Wiring Diagram [King Cab] (2 Of 10)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 3: Vehicle Security System - Wiring Diagram [King Cab] (3 Of 10)

Courtesy of SUZUKI OF AMERICA CORP.

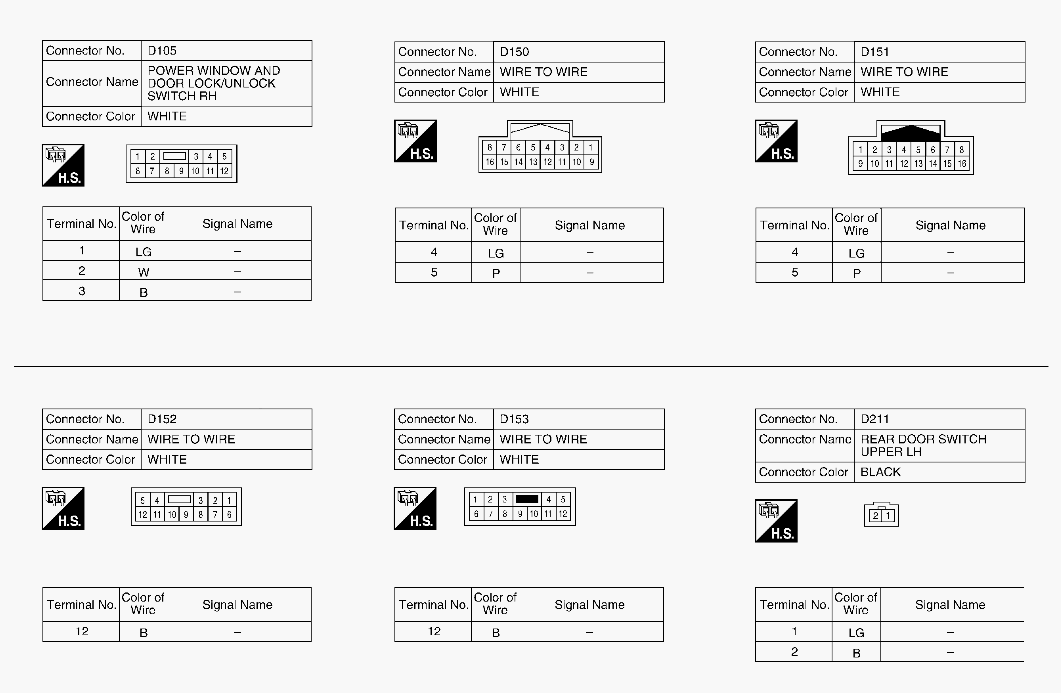

Fig 4: Vehicle Security System - Wiring Diagram [King Cab] (4 Of 10)

Courtesy of SUZUKI OF AMERICA CORP.

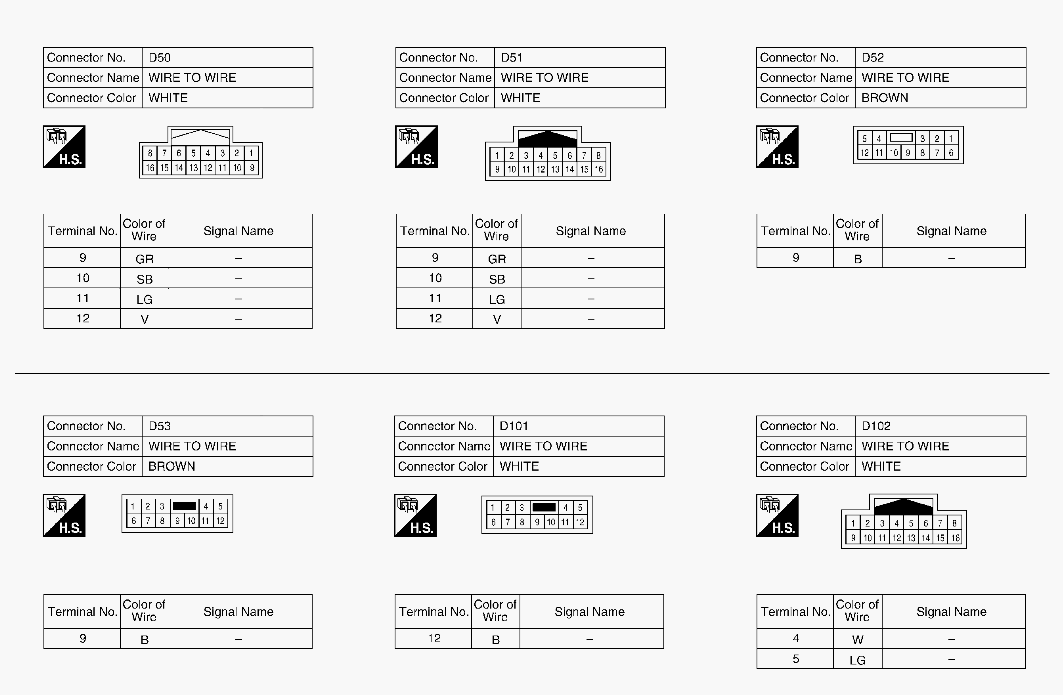

Fig 5: Vehicle Security System - Wiring Diagram [King Cab] (5 Of 10)

Courtesy of SUZUKI OF AMERICA CORP.

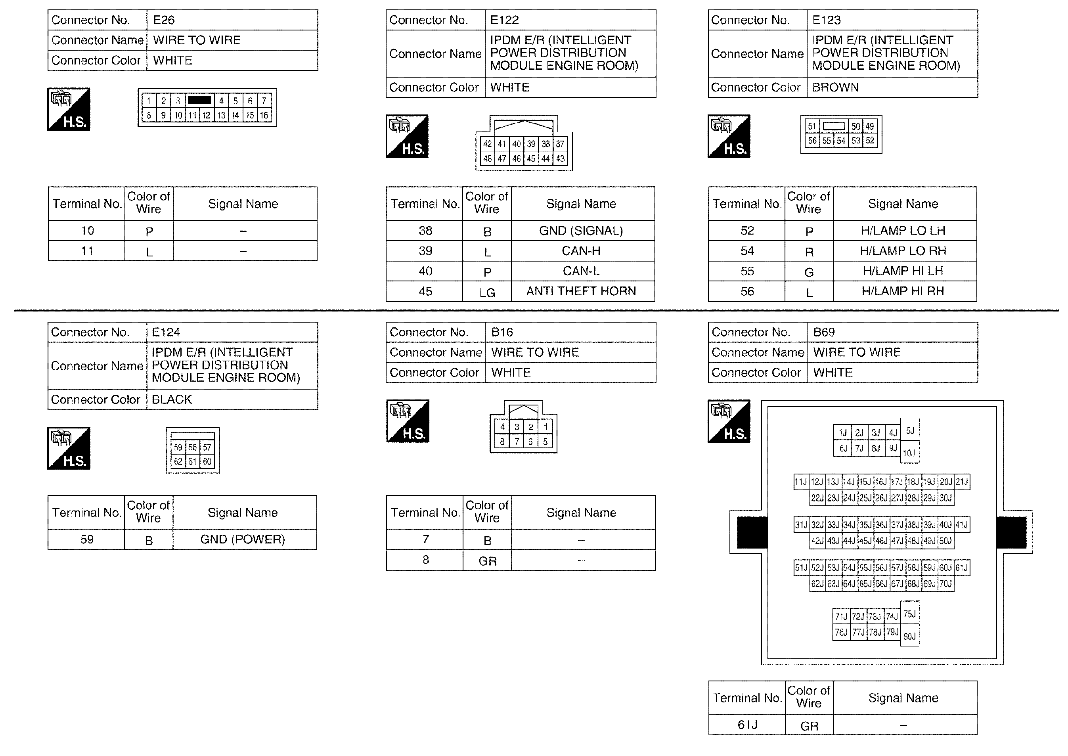

Fig 6: Vehicle Security System - Wiring Diagram [King Cab] (6 Of 10)

Courtesy of SUZUKI OF AMERICA CORP.

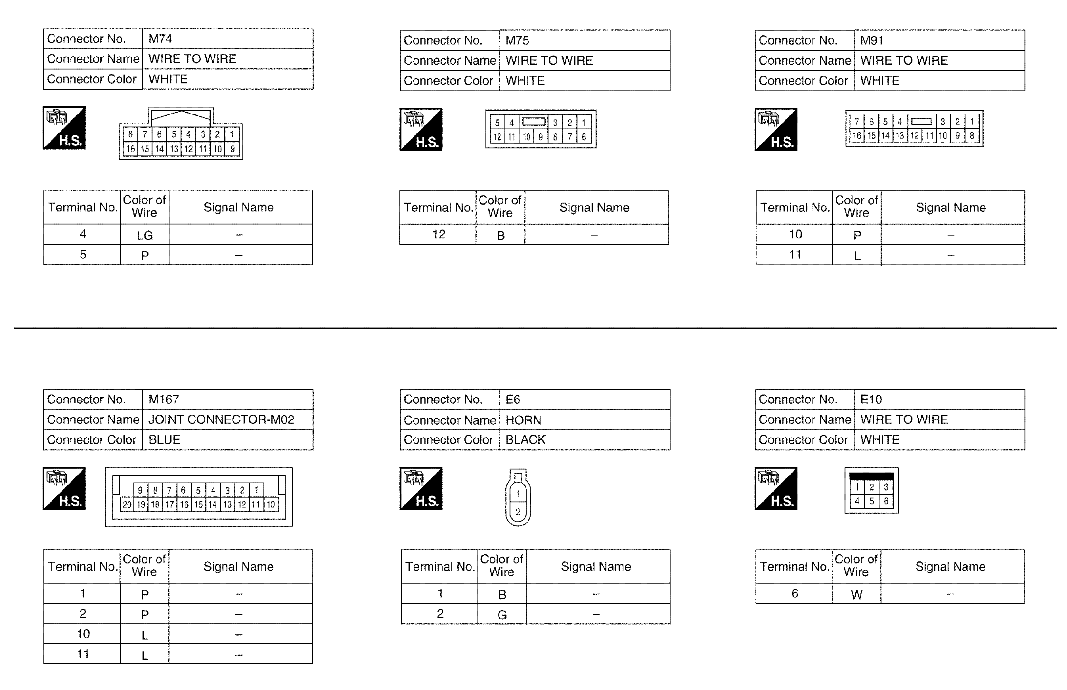

Fig 7: Vehicle Security System - Wiring Diagram [King Cab] (7 Of 10)

Courtesy of SUZUKI OF AMERICA CORP.

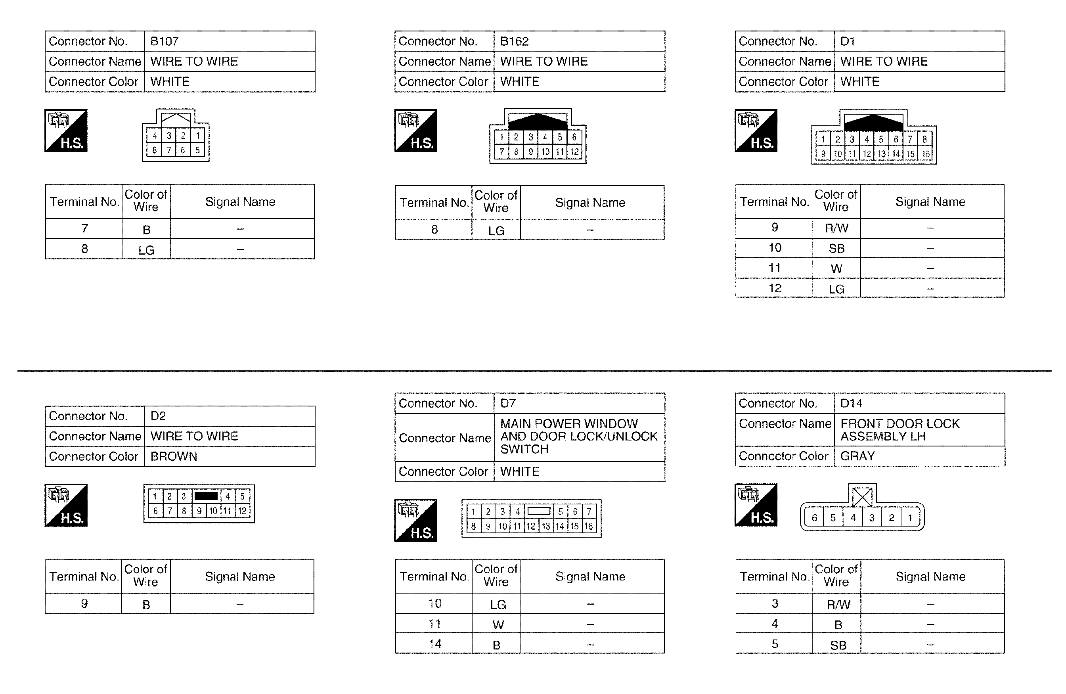

Fig 8: Vehicle Security System - Wiring Diagram [King Cab] (8 Of 10)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 9: Vehicle Security System - Wiring Diagram [King Cab] (9 Of 10)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 10: Vehicle Security System - Wiring Diagram [King Cab] (10 Of 10)

Courtesy of SUZUKI OF AMERICA CORP.
