Turn Signal and Hazard Warning Lamp System: Wiring Diagram

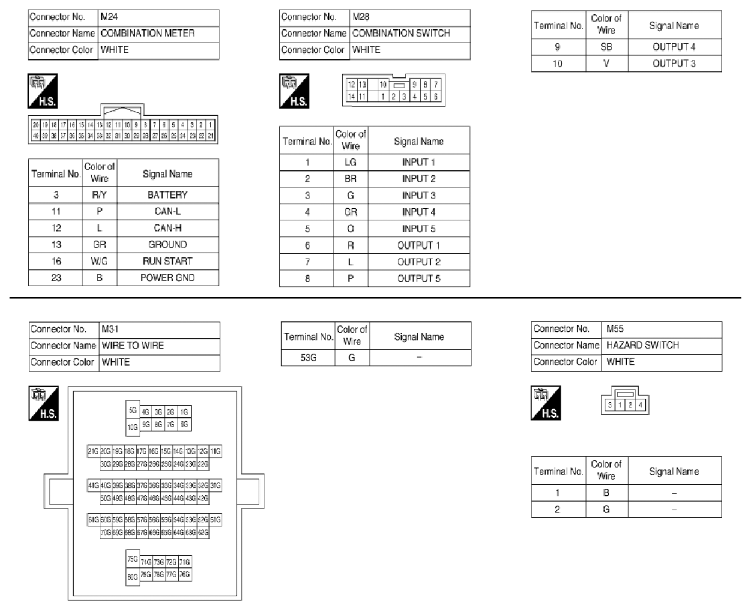

Fig 1: Turn Signal And Hazard Warning Lamp System - Wiring Diagram (1 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.

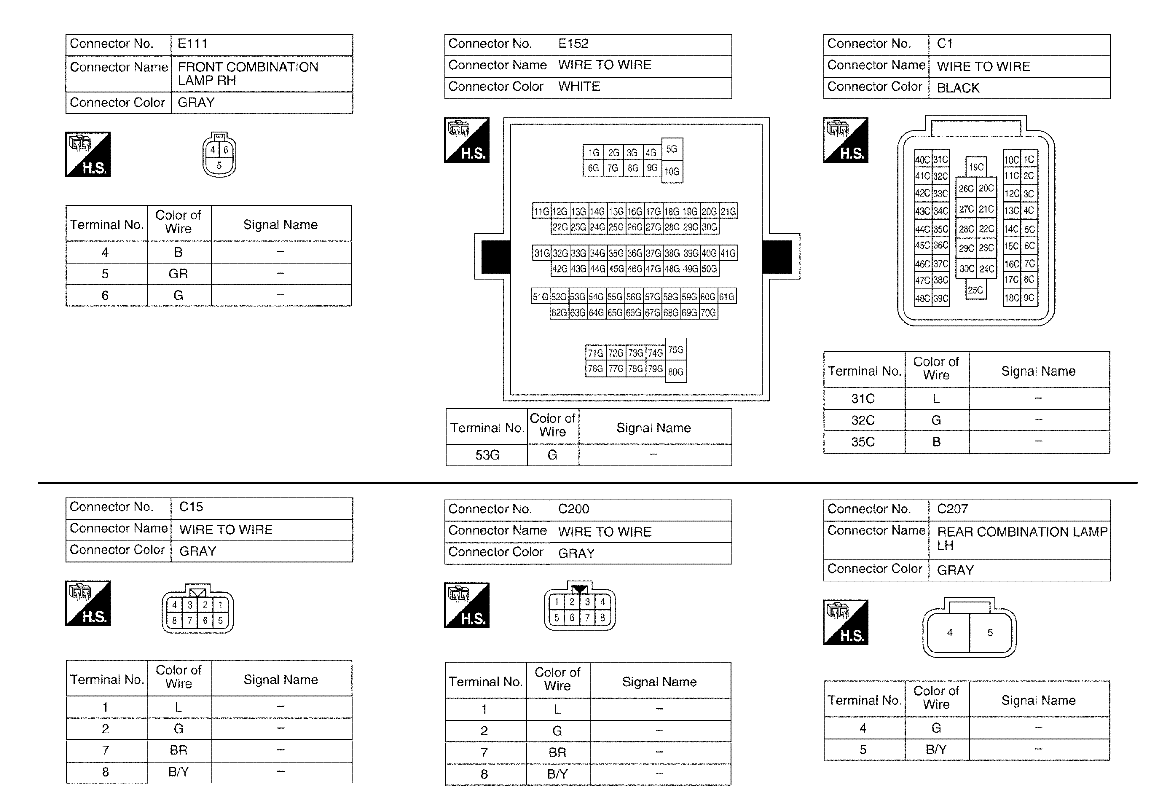

Fig 2: Turn Signal And Hazard Warning Lamp System - Wiring Diagram (2 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.

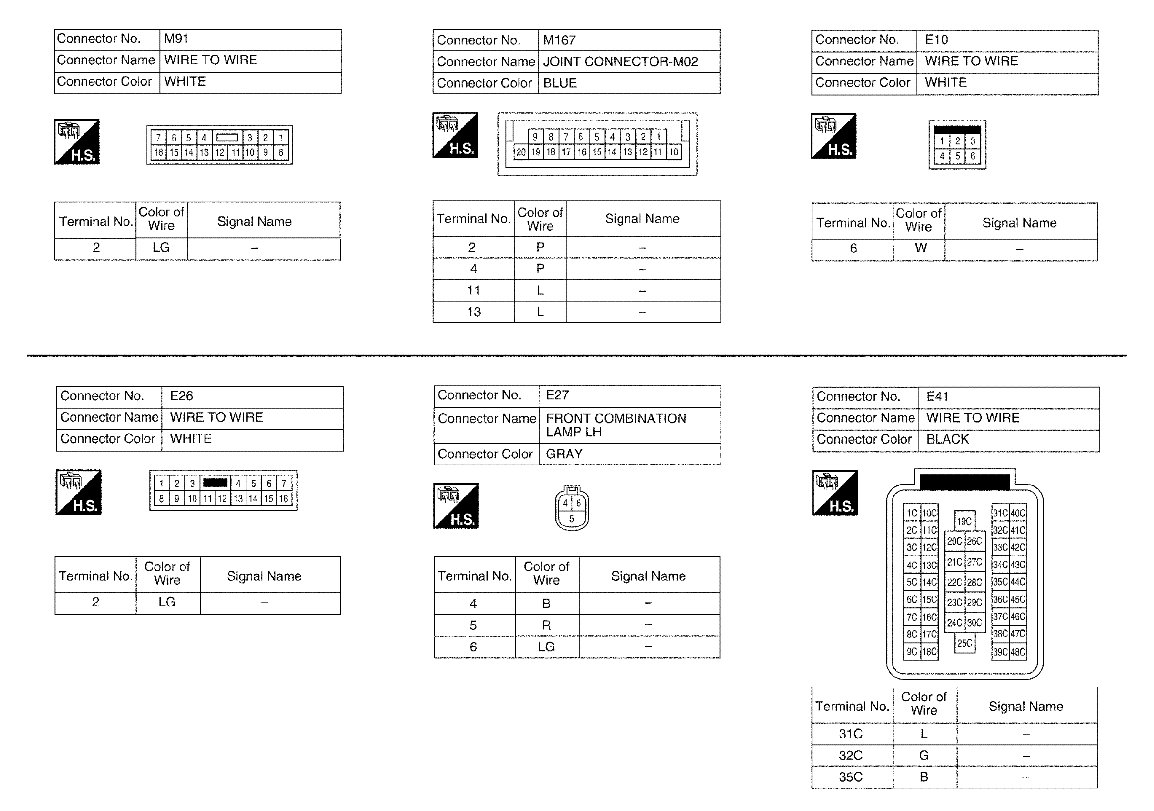

Fig 3: Turn Signal And Hazard Warning Lamp System - Wiring Diagram (3 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.

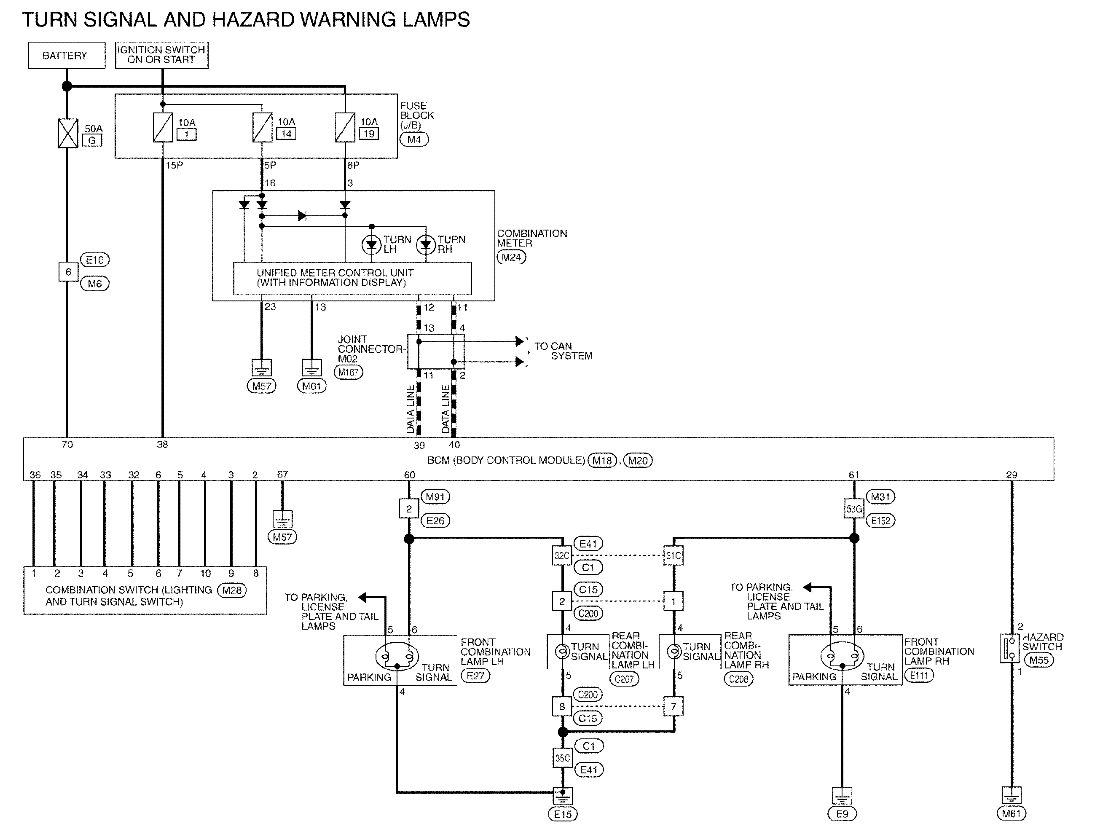

Fig 4: Turn Signal And Hazard Warning Lamp System - Wiring Diagram (4 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.

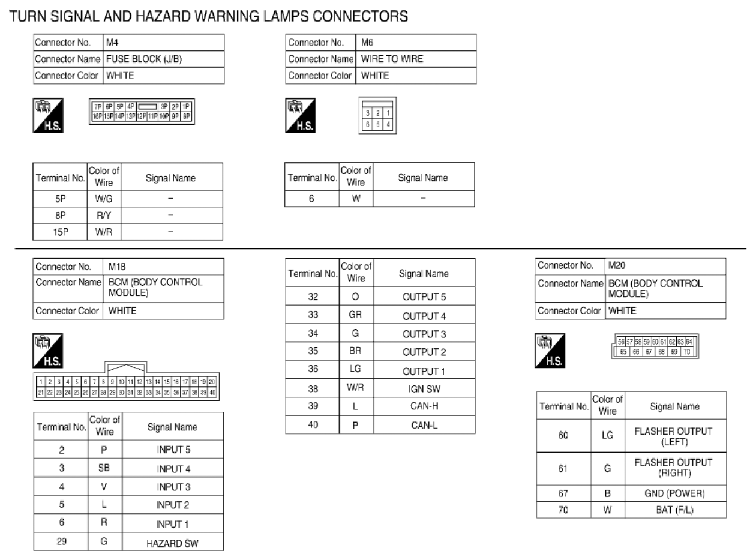

Fig 5: Turn Signal And Hazard Warning Lamp System - Wiring Diagram (5 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 6: Turn Signal And Hazard Warning Lamp System - Wiring Diagram (6 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.
