Trailer Tow: Wiring Diagram

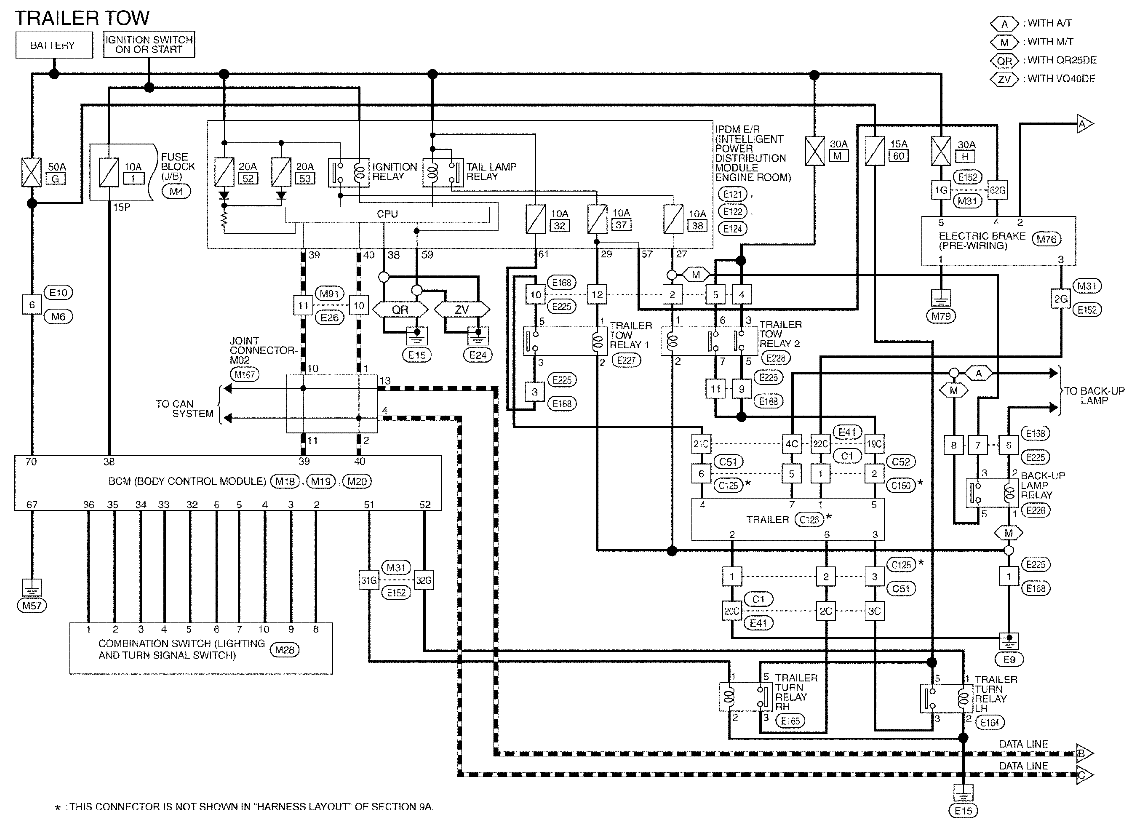

Fig 1: Trailer Tow - Wiring Diagram (1 Of 10)

G00537125

Courtesy of SUZUKI OF AMERICA CORP.

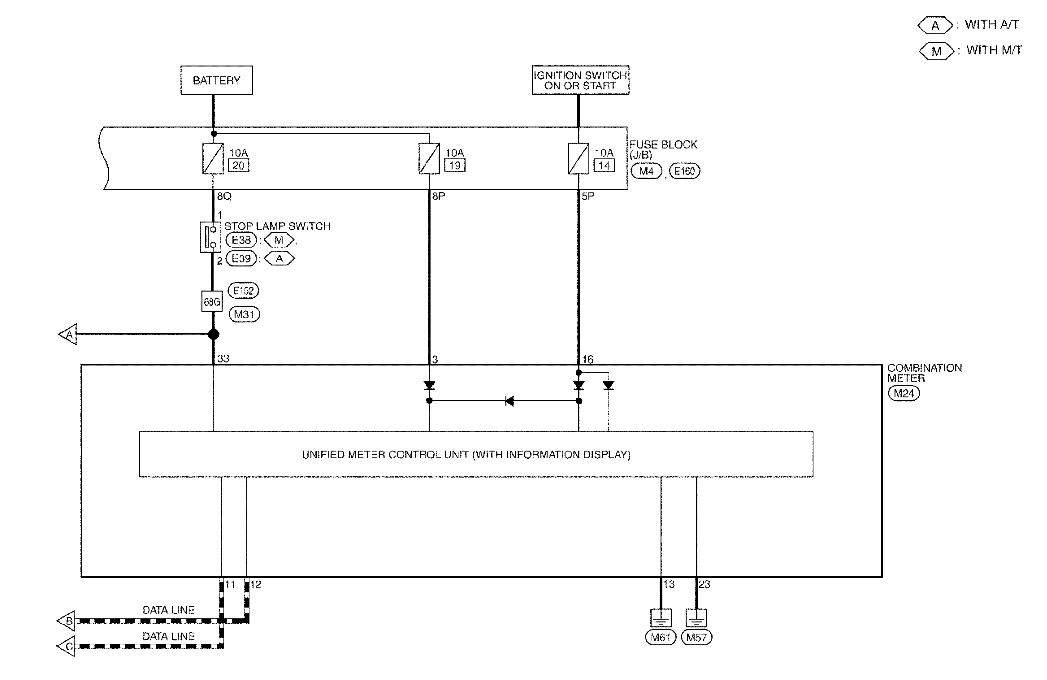

Fig 2: Trailer Tow - Wiring Diagram (2 Of 10)

G00537126

Courtesy of SUZUKI OF AMERICA CORP.

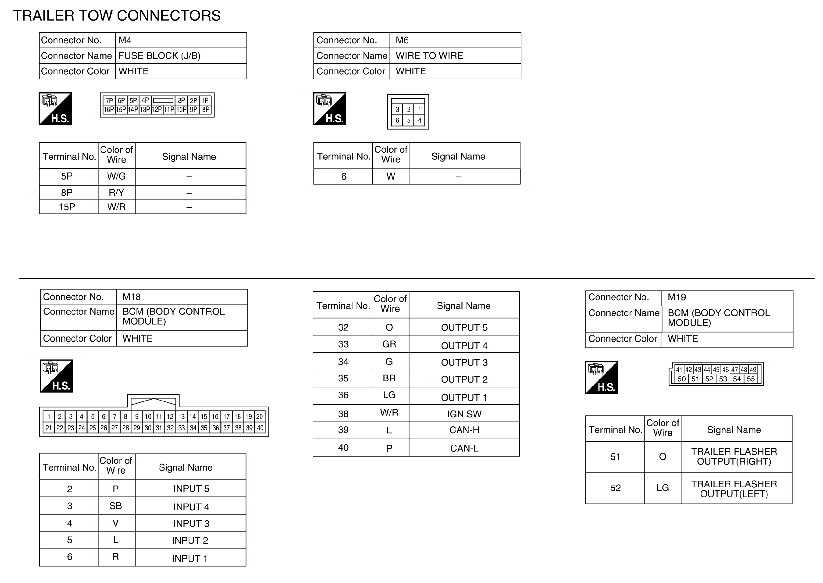

Fig 3: Trailer Tow - Wiring Diagram (3 Of 10)

G00500597

Courtesy of SUZUKI OF AMERICA CORP.

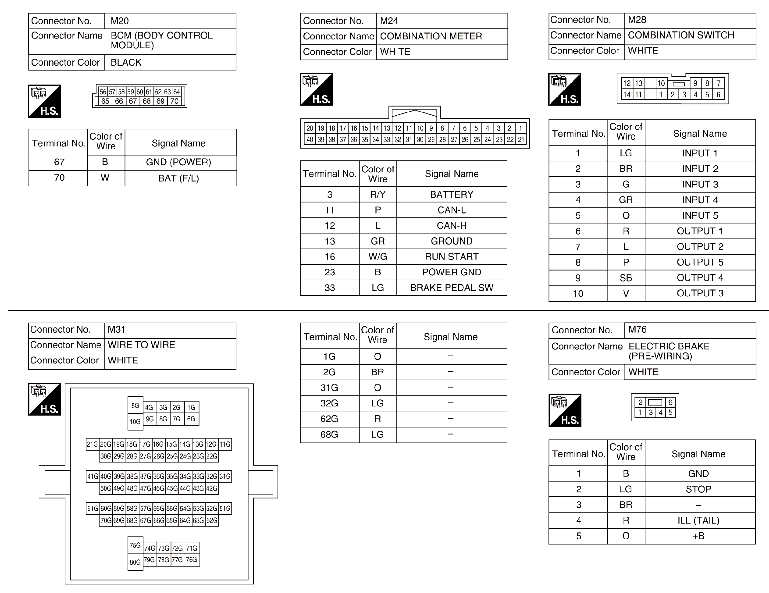

Fig 4: Trailer Tow - Wiring Diagram (4 Of 10)

G00500598

Courtesy of SUZUKI OF AMERICA CORP.

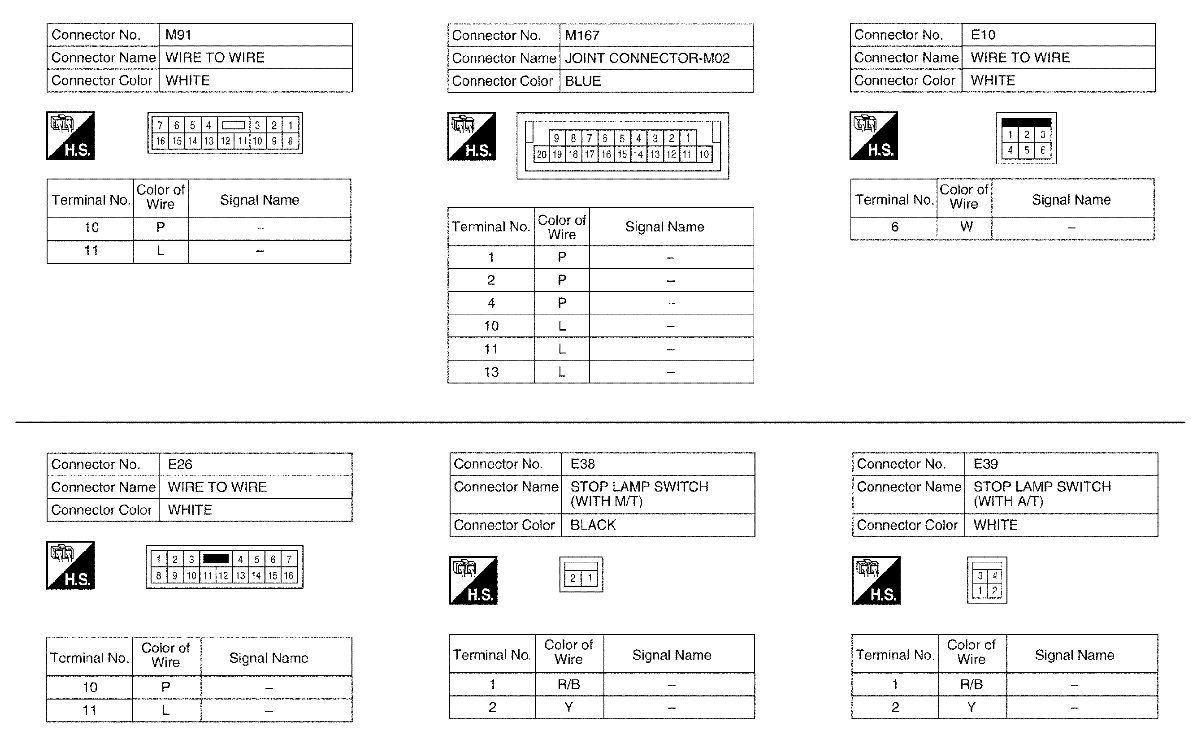

Fig 5: Trailer Tow - Wiring Diagram (5 Of 10)

G00537127

Courtesy of SUZUKI OF AMERICA CORP.

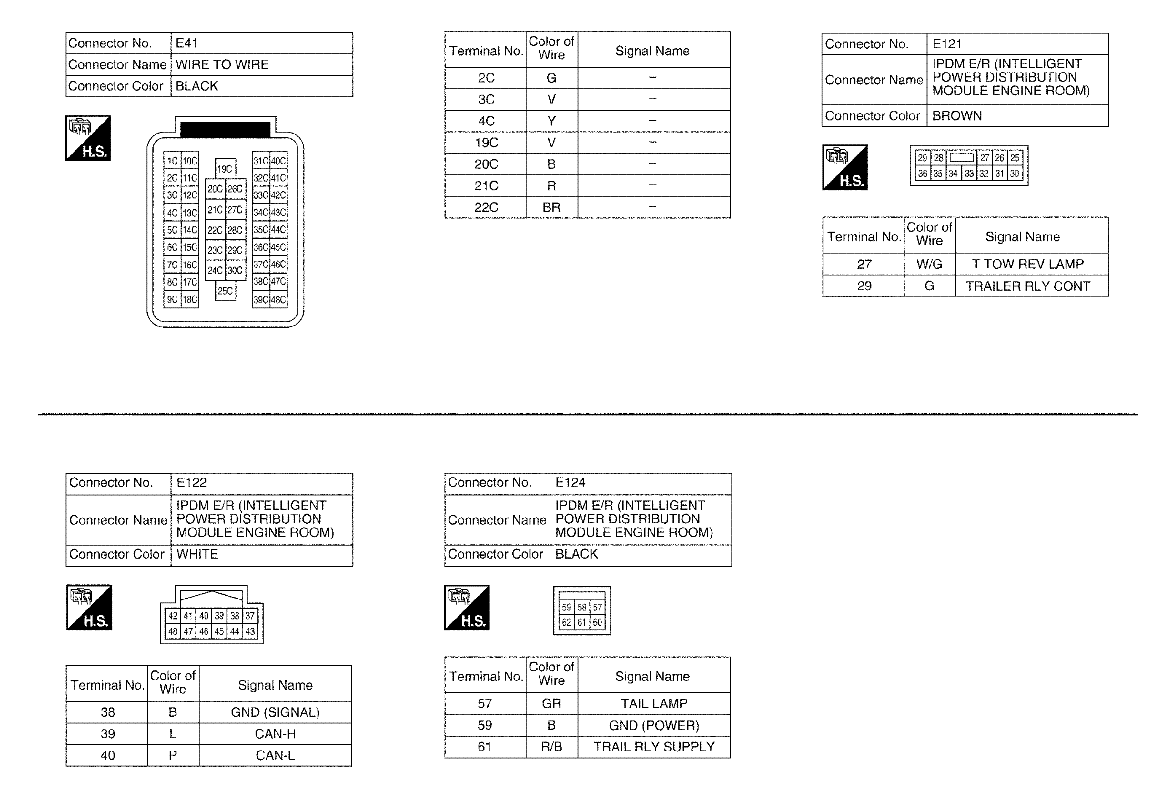

Fig 6: Trailer Tow - Wiring Diagram (6 Of 10)

G00537128

Courtesy of SUZUKI OF AMERICA CORP.

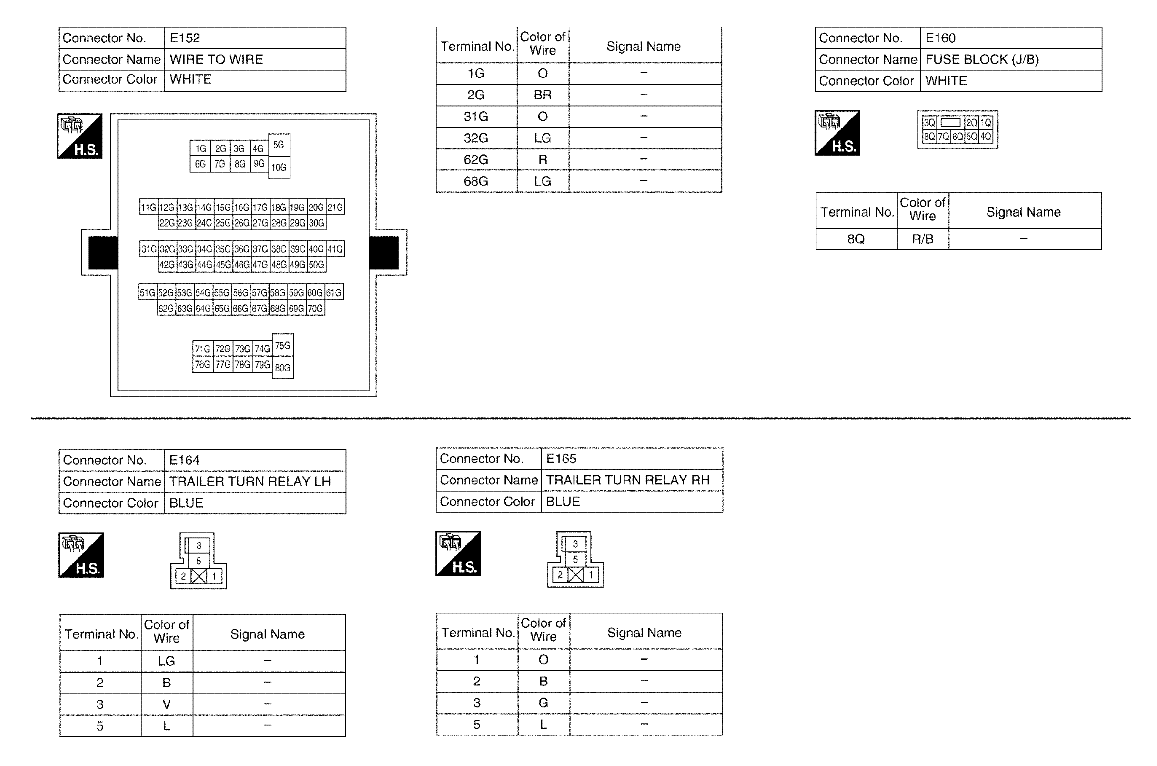

Fig 7: Trailer Tow - Wiring Diagram (7 Of 10)

G00537129

Courtesy of SUZUKI OF AMERICA CORP.

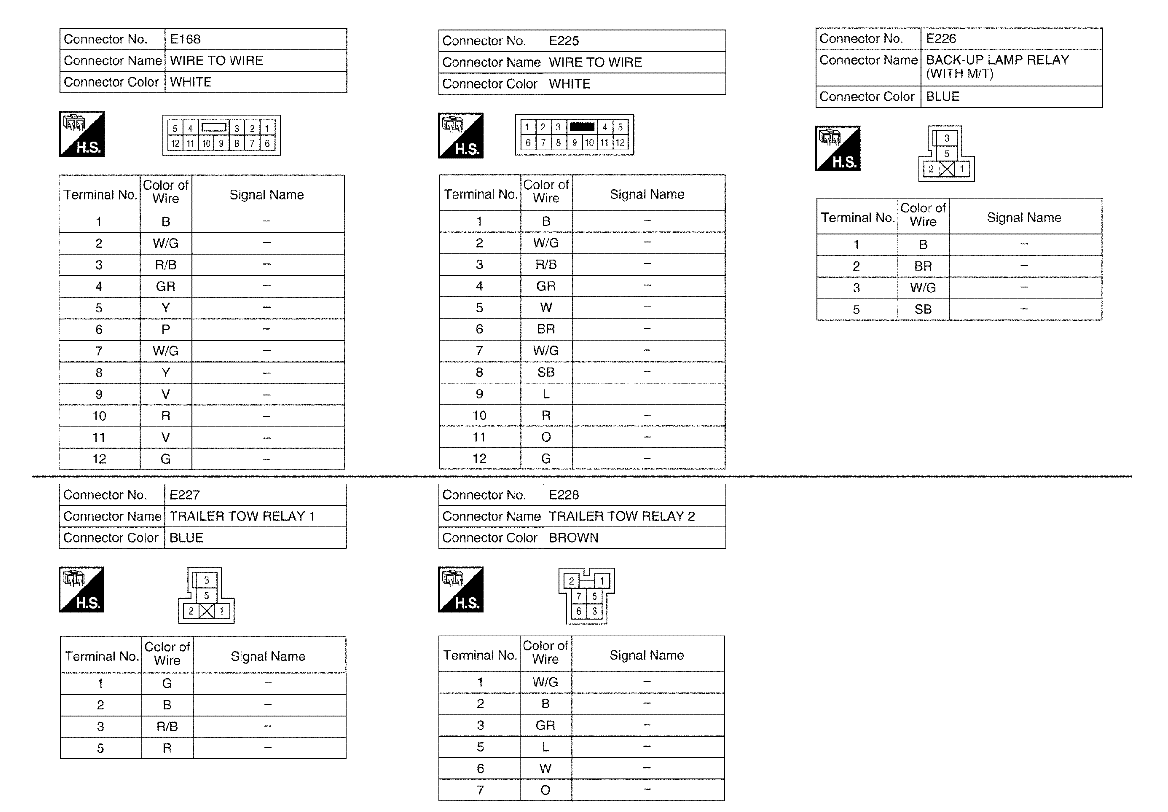

Fig 8: Trailer Tow - Wiring Diagram (8 Of 10)

G00537130

Courtesy of SUZUKI OF AMERICA CORP.

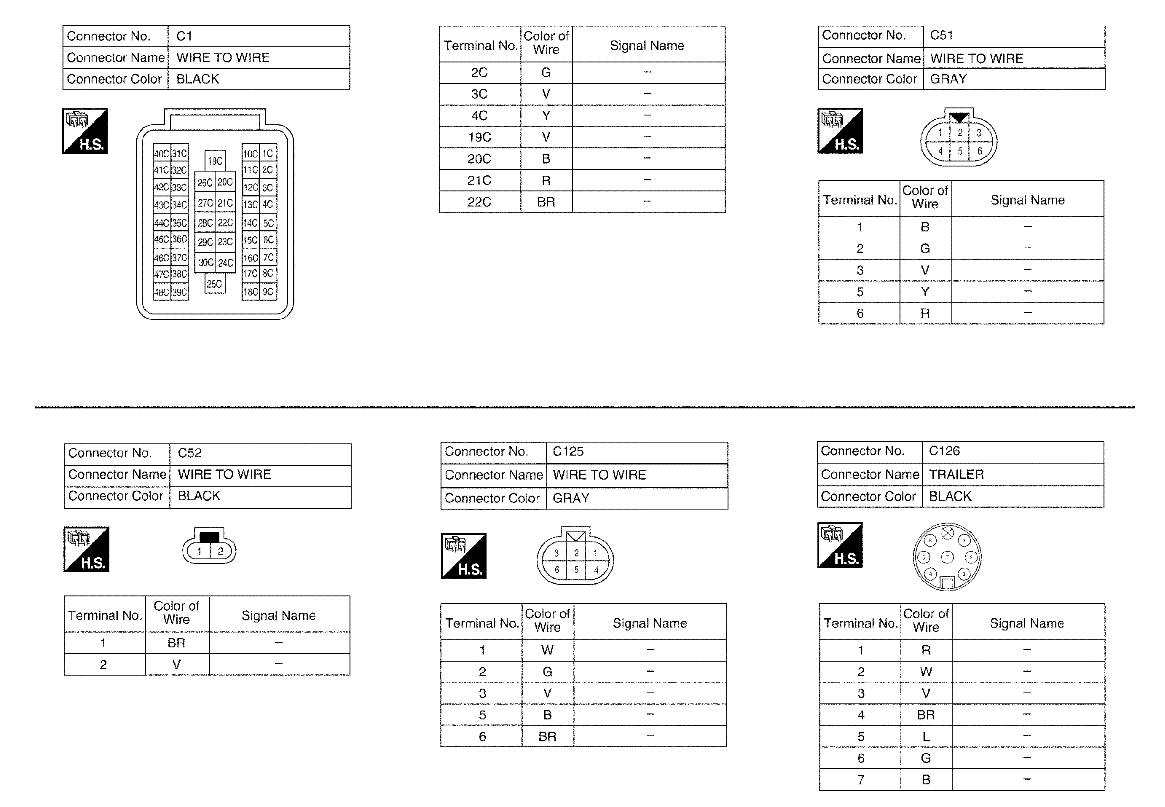

Fig 9: Trailer Tow - Wiring Diagram (9 Of 10)

G00537131

Courtesy of SUZUKI OF AMERICA CORP.

Fig 10: Trailer Tow - Wiring Diagram (10 Of 10)

G00500604

Courtesy of SUZUKI OF AMERICA CORP.
