Starting System: Wiring Diagram [VQ40DE with Clutch Interlock Cancel Switch]

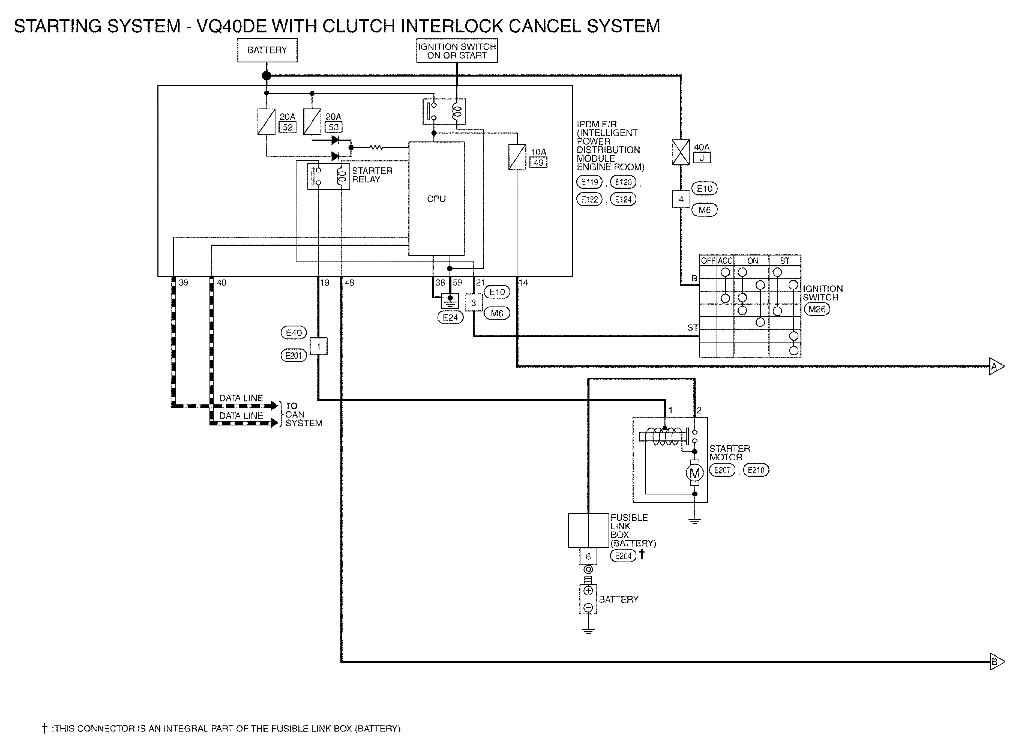

Fig 1: Starting System - Wiring Diagram [VQ40DE With Clutch Interlock Cancel Switch] (1 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: Starting System - Wiring Diagram [VQ40DE With Clutch Interlock Cancel Switch] (2 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.

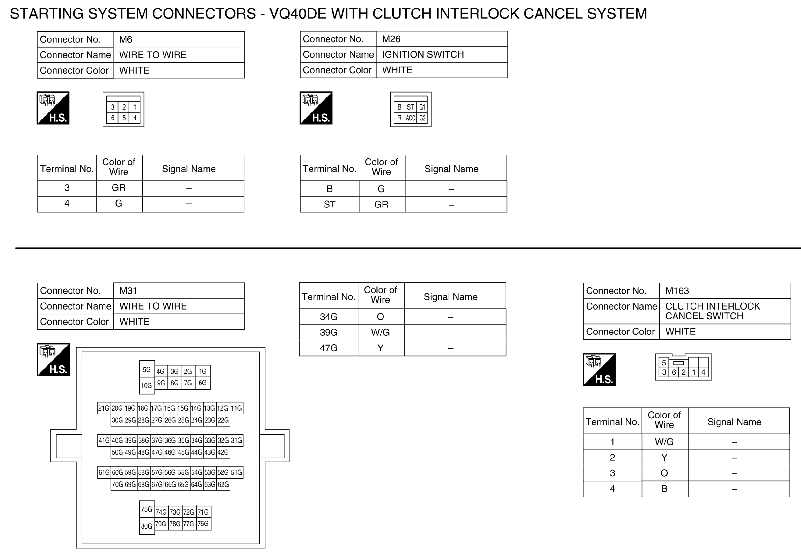

Fig 3: Starting System - Wiring Diagram [VQ40DE With Clutch Interlock Cancel Switch] (3 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.

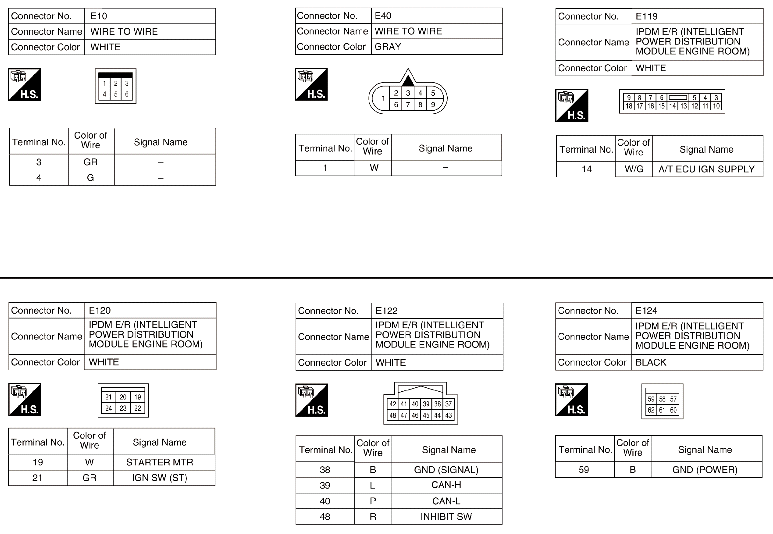

Fig 4: Starting System - Wiring Diagram [VQ40DE With Clutch Interlock Cancel Switch] (4 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.

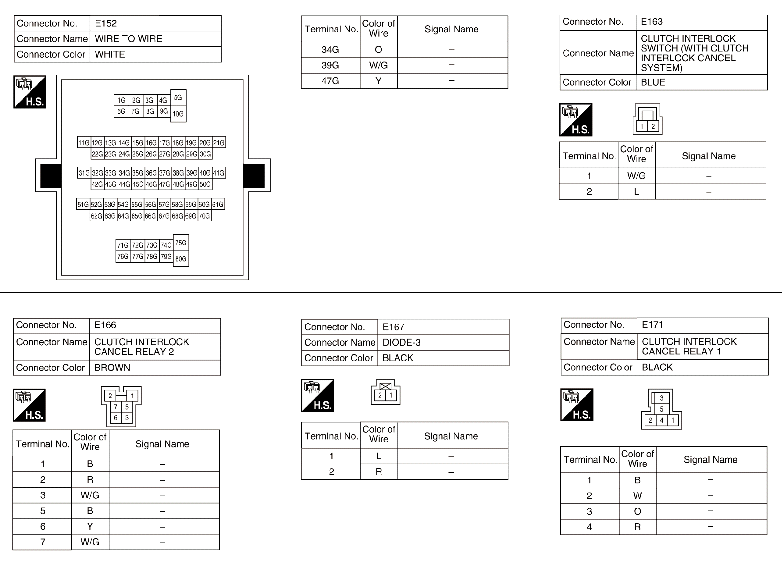

Fig 5: Starting System - Wiring Diagram [VQ40DE With Clutch Interlock Cancel Switch] (5 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.

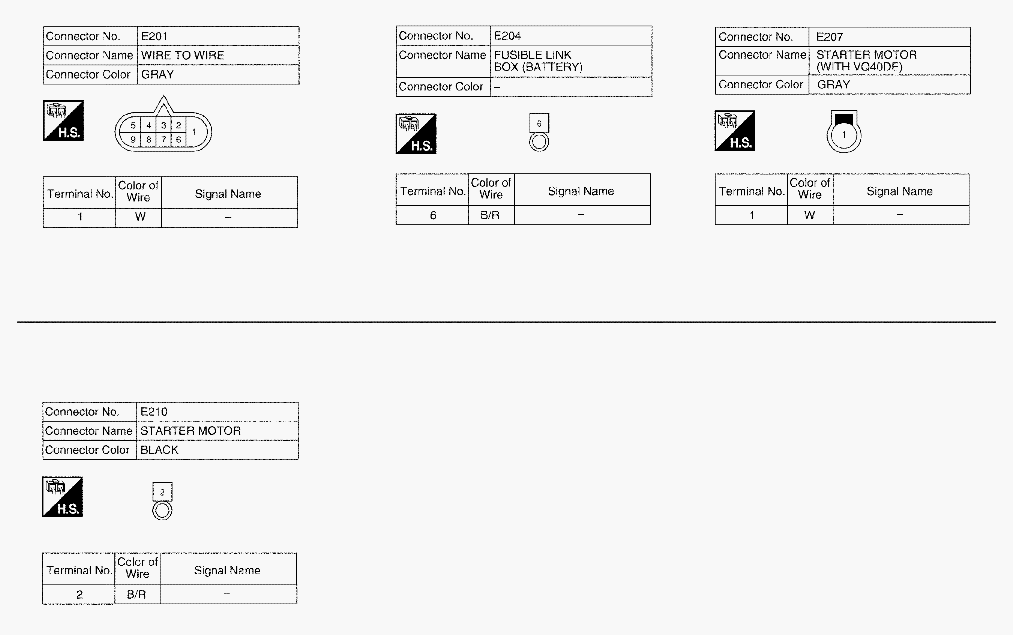

Fig 6: Starting System - Wiring Diagram [VQ40DE With Clutch Interlock Cancel Switch] (6 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.
