Starting System: Wiring Diagram [QR25DE]

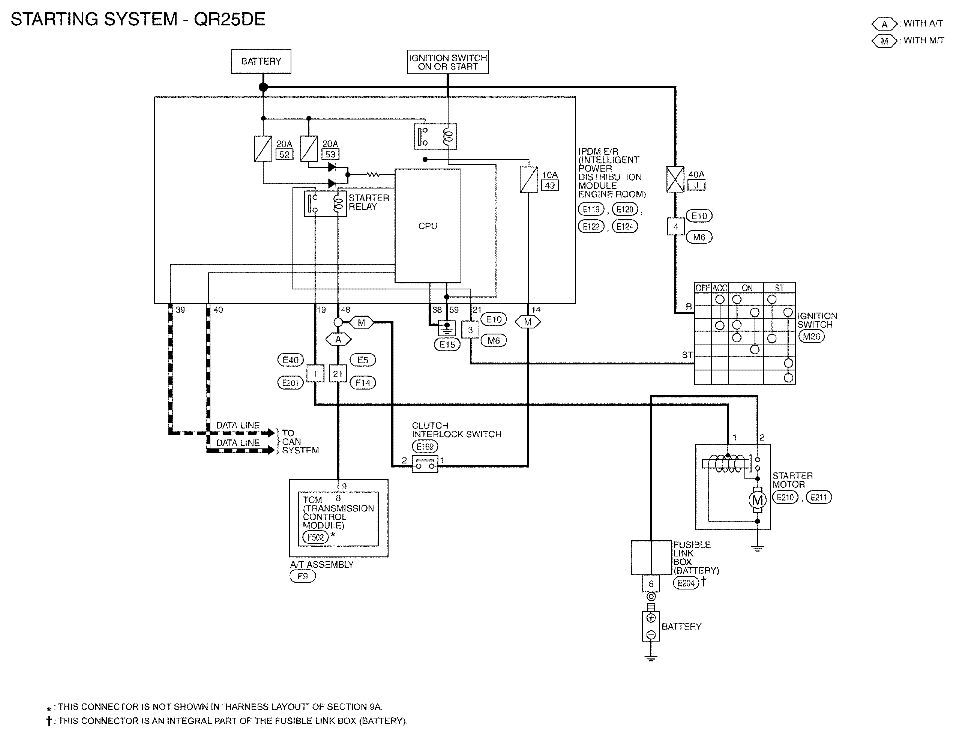

Fig 1: Starting System - Wiring Diagram [QR25DE] (1 Of 4)
Courtesy of SUZUKI OF AMERICA CORP.

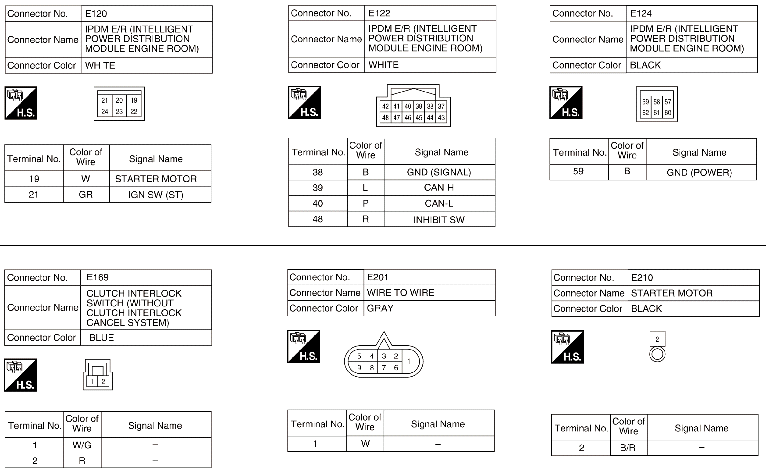

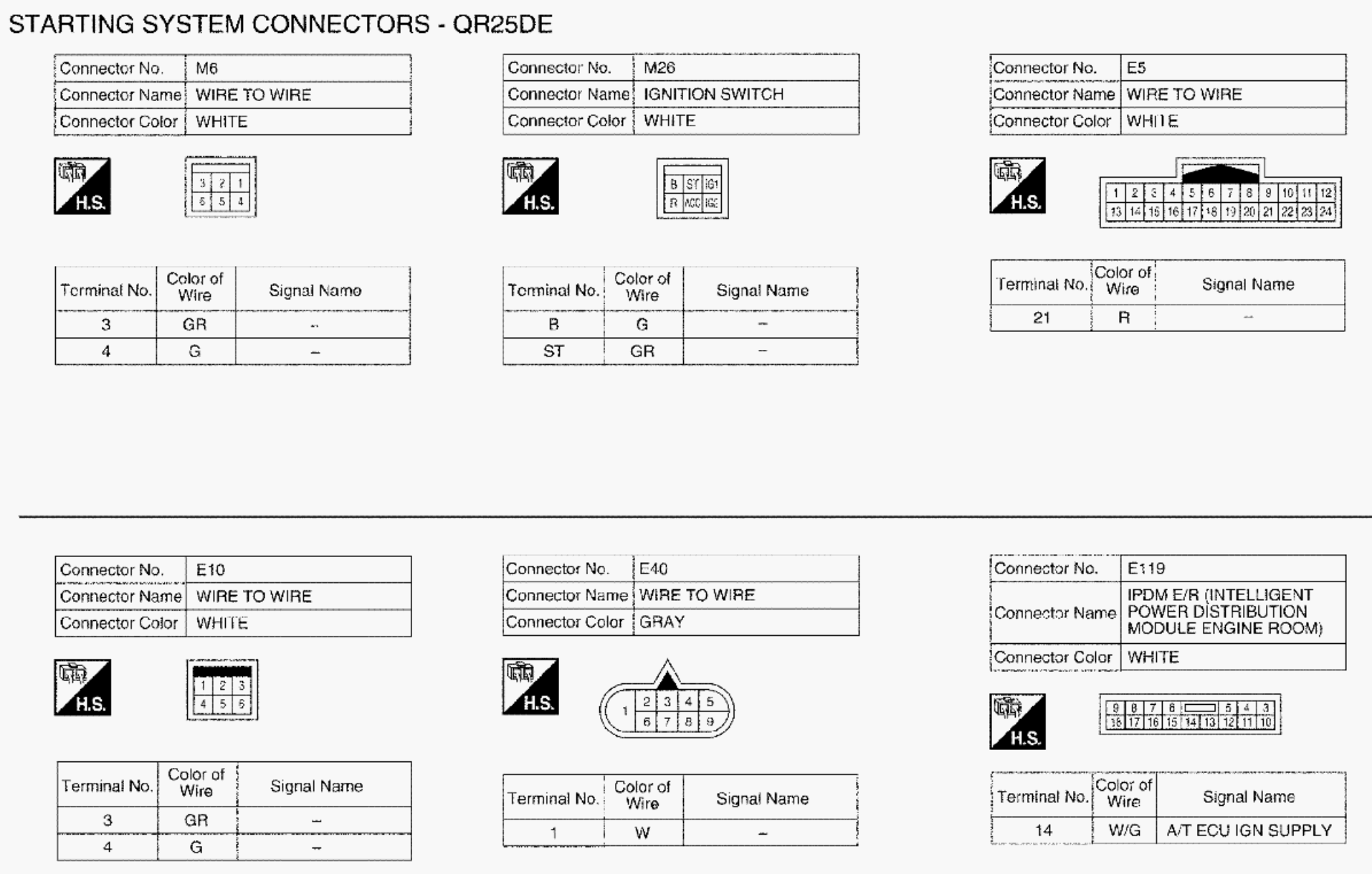

Fig 2: Starting System - Wiring Diagram [QR25DE] (2 Of 4)
Courtesy of SUZUKI OF AMERICA CORP.

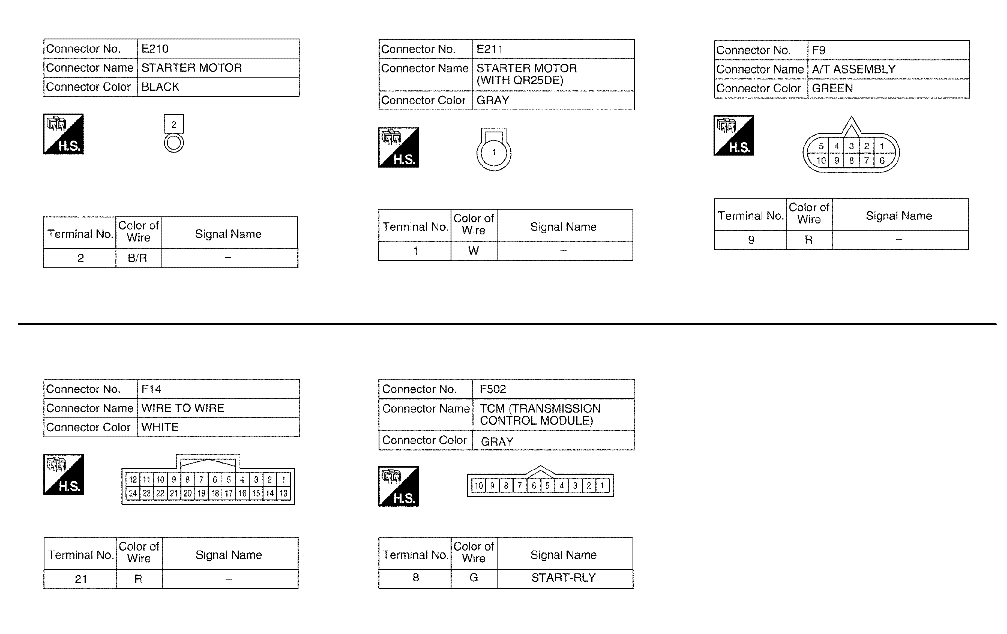

Fig 3: Starting System - Wiring Diagram [QR25DE] (3 Of 4)
Courtesy of SUZUKI OF AMERICA CORP.
Fig 4: Starting System - Wiring Diagram [QR25DE] (4 Of 4)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
