SRS Airbag Control System Diagnosis Sensor Unit: Wiring Diagram [without Power Seats]

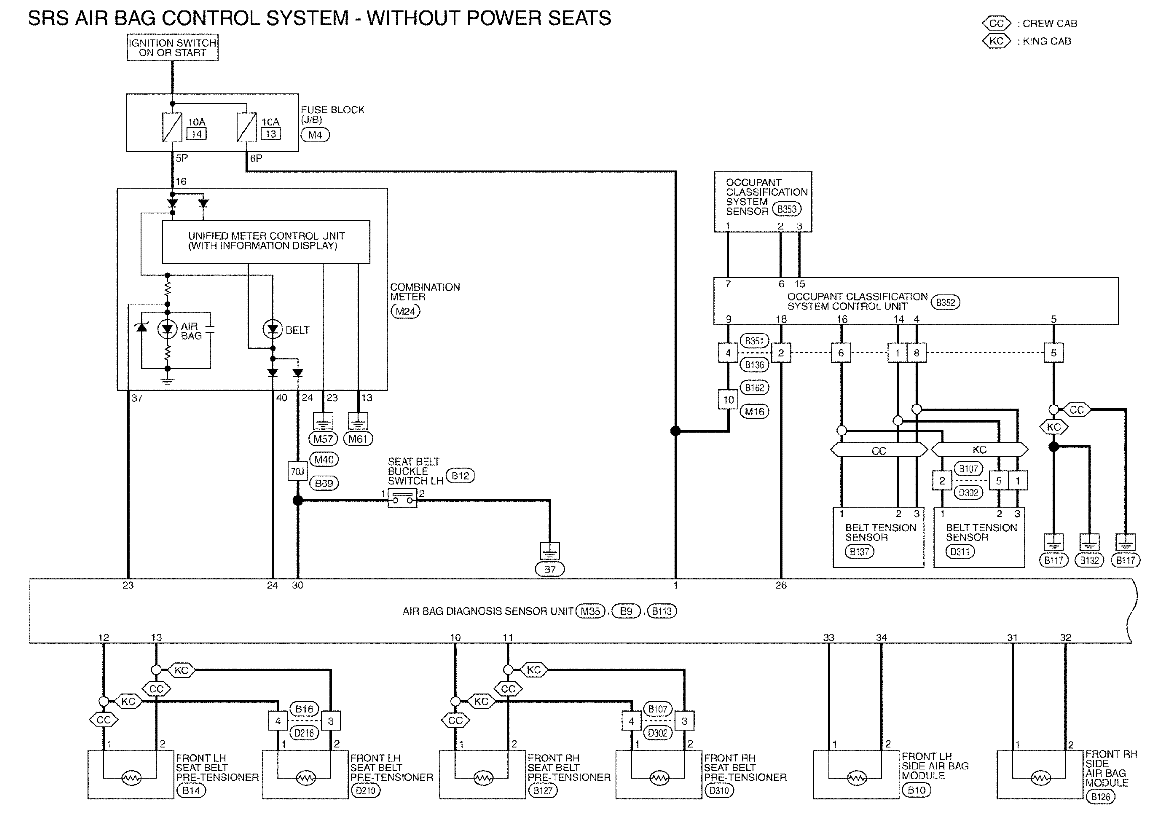

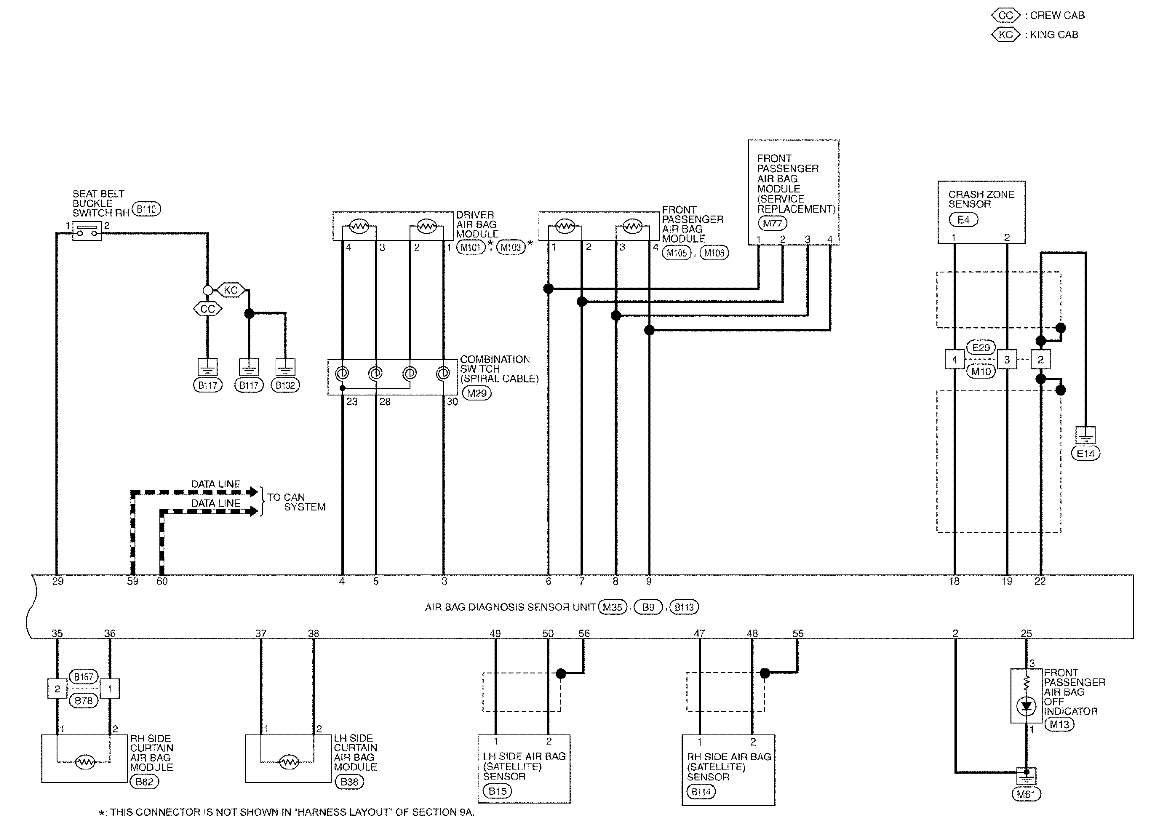

Fig 1: SRS Airbag Control System Diagnosis Sensor Unit - Wiring Diagram [Without Power Seats] (1 Of 11)

Courtesy of SUZUKI OF AMERICA CORP.

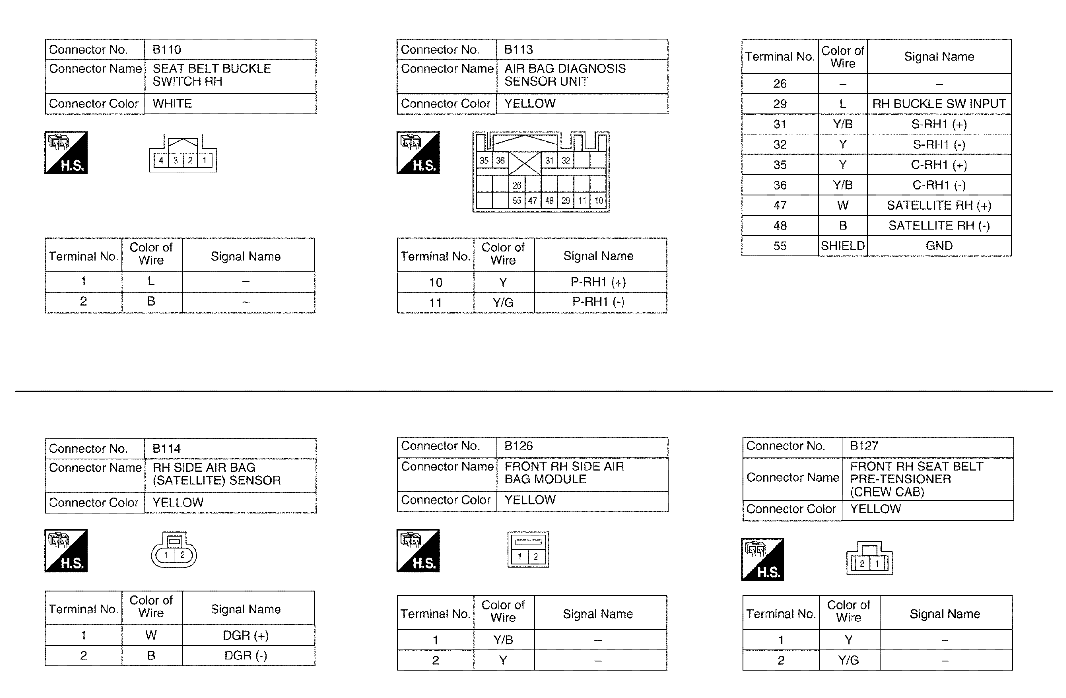

Fig 2: SRS Airbag Control System Diagnosis Sensor Unit - Wiring Diagram [Without Power Seats] (2 Of 11)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 3: SRS Airbag Control System Diagnosis Sensor Unit - Wiring Diagram [Without Power Seats] (3 Of 11)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 4: SRS Airbag Control System Diagnosis Sensor Unit - Wiring Diagram [Without Power Seats] (4 Of 11)

Courtesy of SUZUKI OF AMERICA CORP.

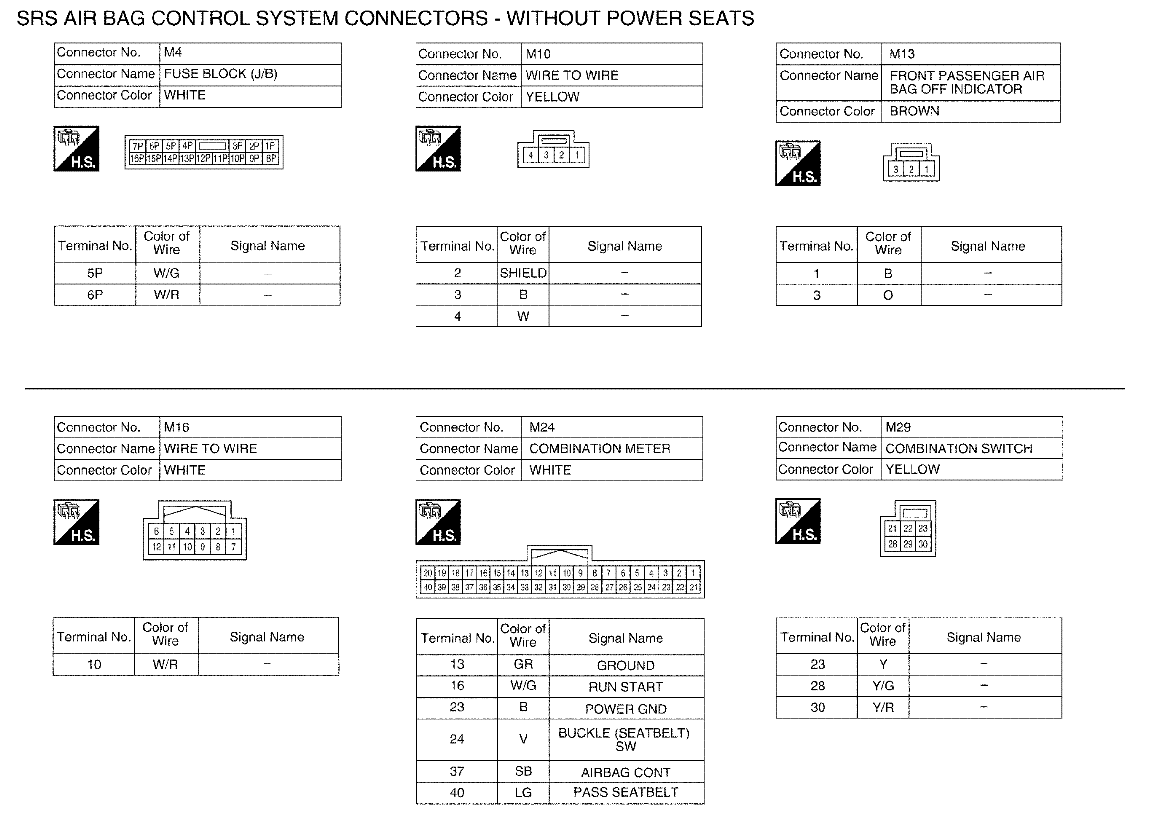

Fig 5: SRS Airbag Control System Diagnosis Sensor Unit - Wiring Diagram [Without Power Seats] (5 Of 11)

Courtesy of SUZUKI OF AMERICA CORP.

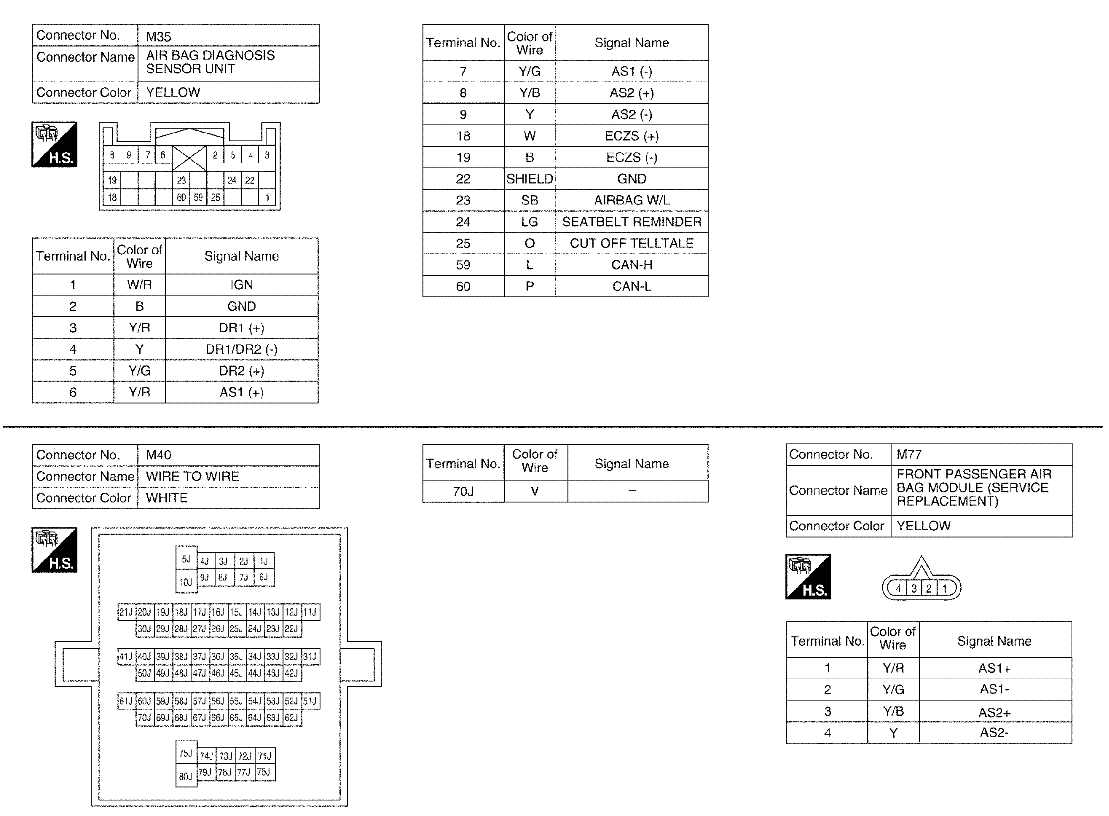

Fig 6: SRS Airbag Control System Diagnosis Sensor Unit - Wiring Diagram [Without Power Seats] (6 Of 11)

Courtesy of SUZUKI OF AMERICA CORP.

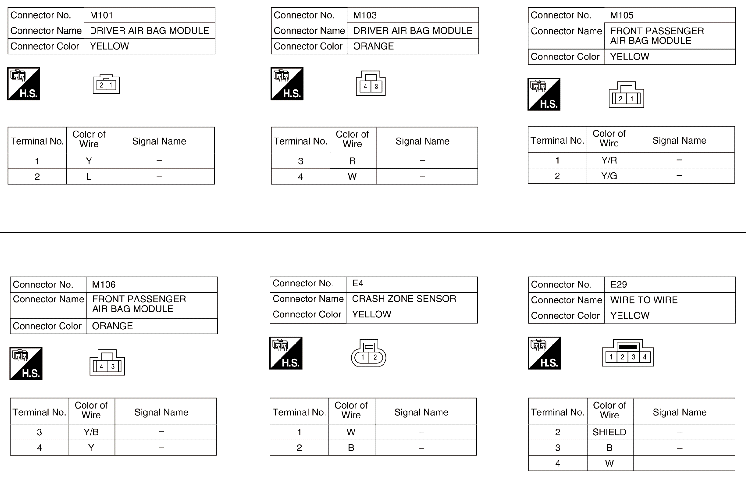

Fig 7: SRS Airbag Control System Diagnosis Sensor Unit - Wiring Diagram [Without Power Seats] (7 Of 11)

Courtesy of SUZUKI OF AMERICA CORP.

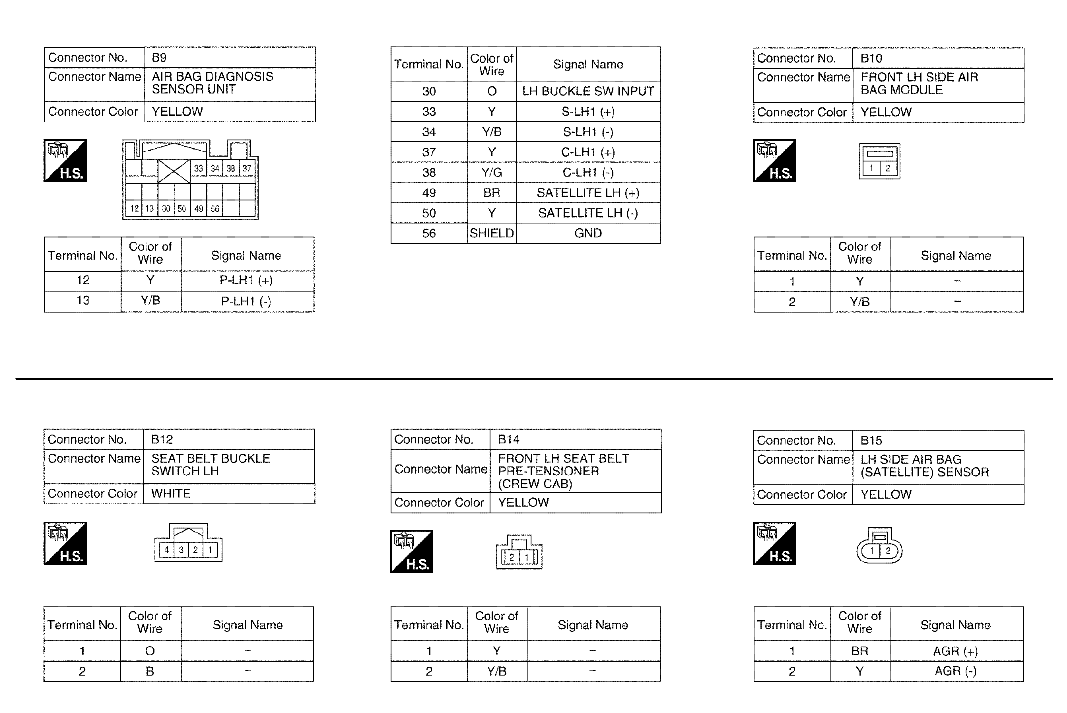

Fig 8: SRS Airbag Control System Diagnosis Sensor Unit - Wiring Diagram [Without Power Seats] (8 Of 11)

Courtesy of SUZUKI OF AMERICA CORP.

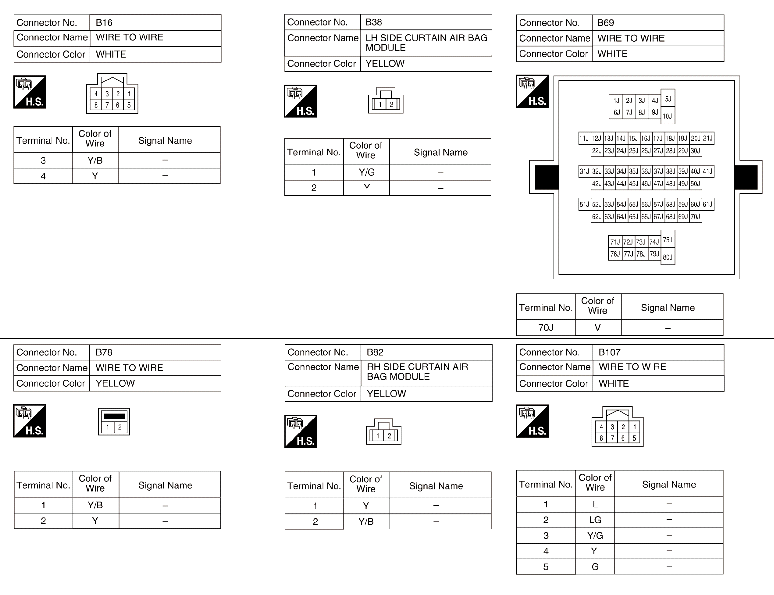

Fig 9: SRS Airbag Control System Diagnosis Sensor Unit - Wiring Diagram [Without Power Seats] (9 Of 11)

Courtesy of SUZUKI OF AMERICA CORP.

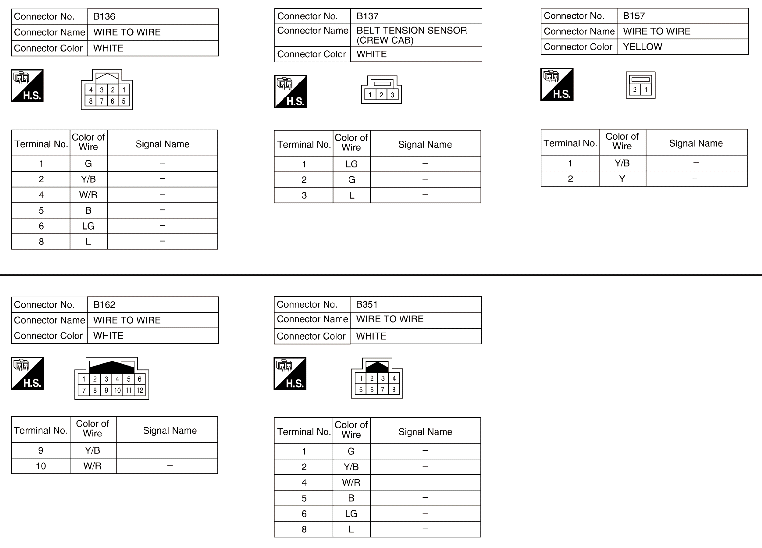

Fig 10: SRS Airbag Control System Diagnosis Sensor Unit - Wiring Diagram [Without Power Seats] (10 Of 11)

Courtesy of SUZUKI OF AMERICA CORP.

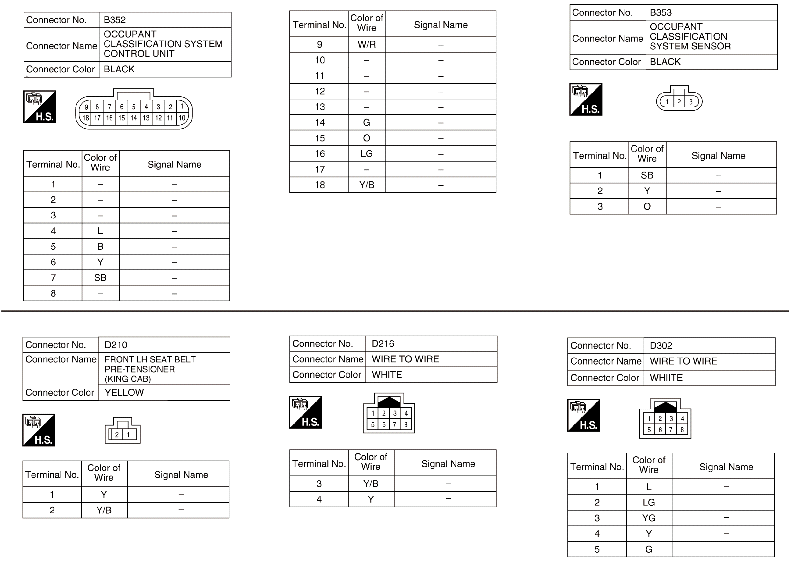

Fig 11: SRS Airbag Control System Diagnosis Sensor Unit - Wiring Diagram [Without Power Seats] (11 Of 11)

Courtesy of SUZUKI OF AMERICA CORP.
