Remote Keyless Entry System: Wiring Diagram [Crew Cab]

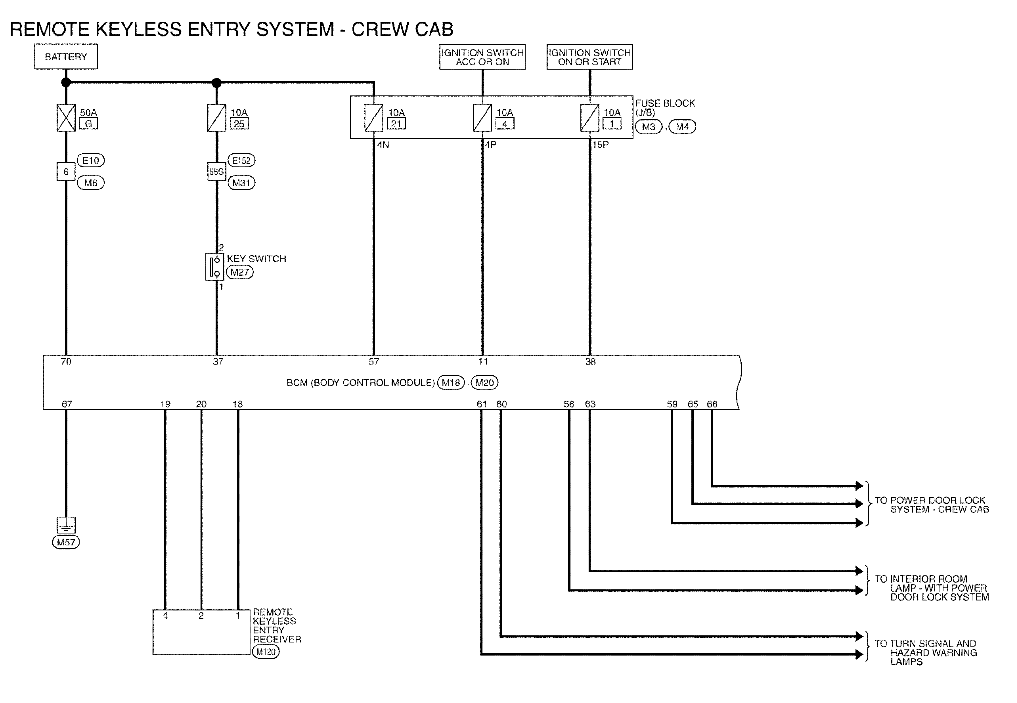

Fig 1: Remote Keyless Entry System - Wiring Diagram [Crew Cab] (1 Of 9)

Courtesy of SUZUKI OF AMERICA CORP.

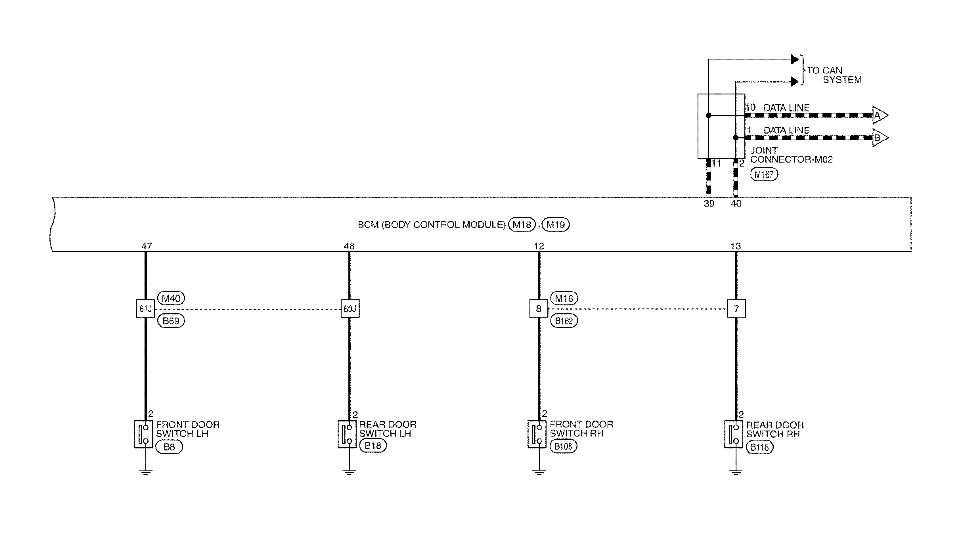

Fig 2: Remote Keyless Entry System - Wiring Diagram [Crew Cab] (2 Of 9)

Courtesy of SUZUKI OF AMERICA CORP.

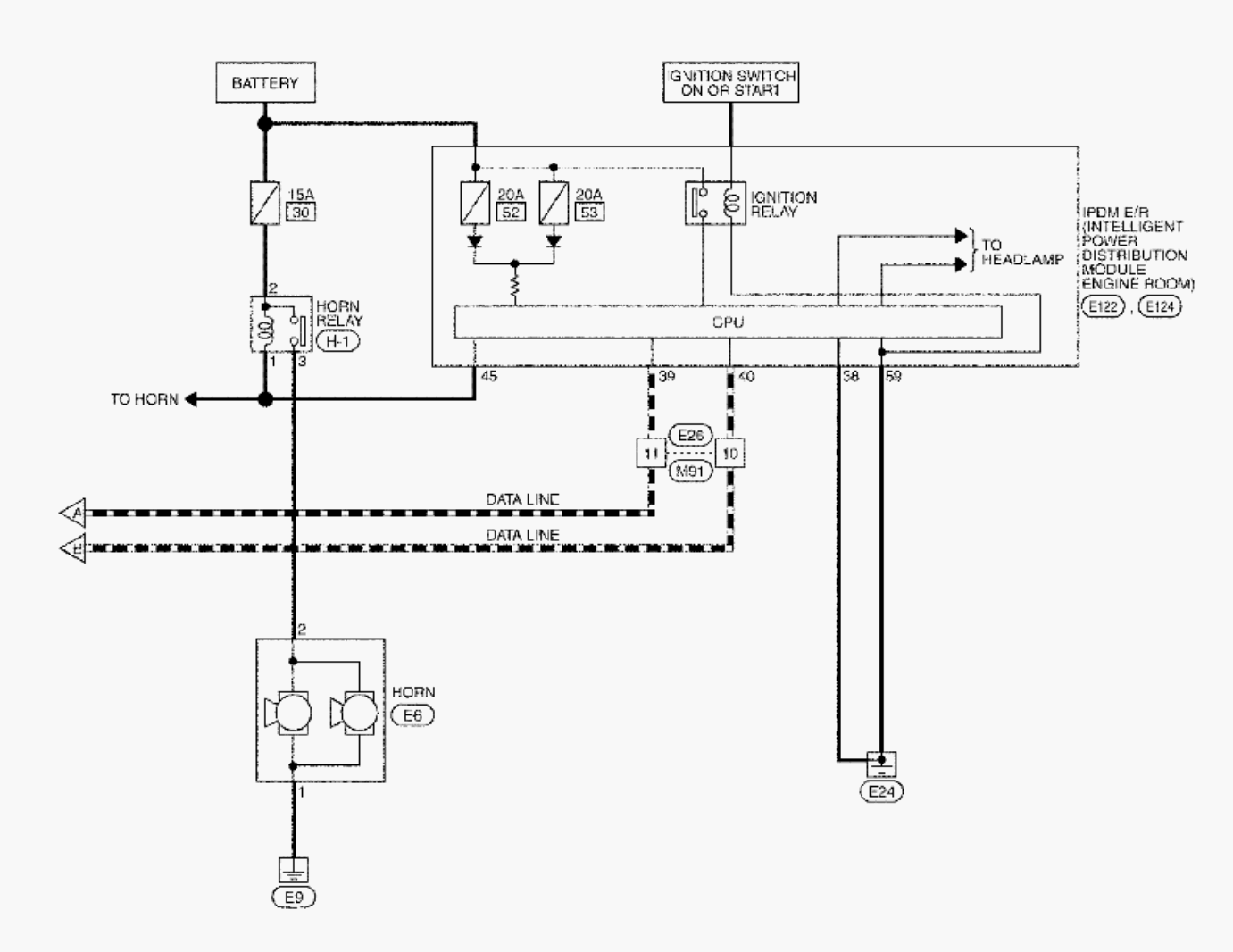

Fig 3: Remote Keyless Entry System - Wiring Diagram [Crew Cab] (3 Of 9)

Courtesy of SUZUKI OF AMERICA CORP.

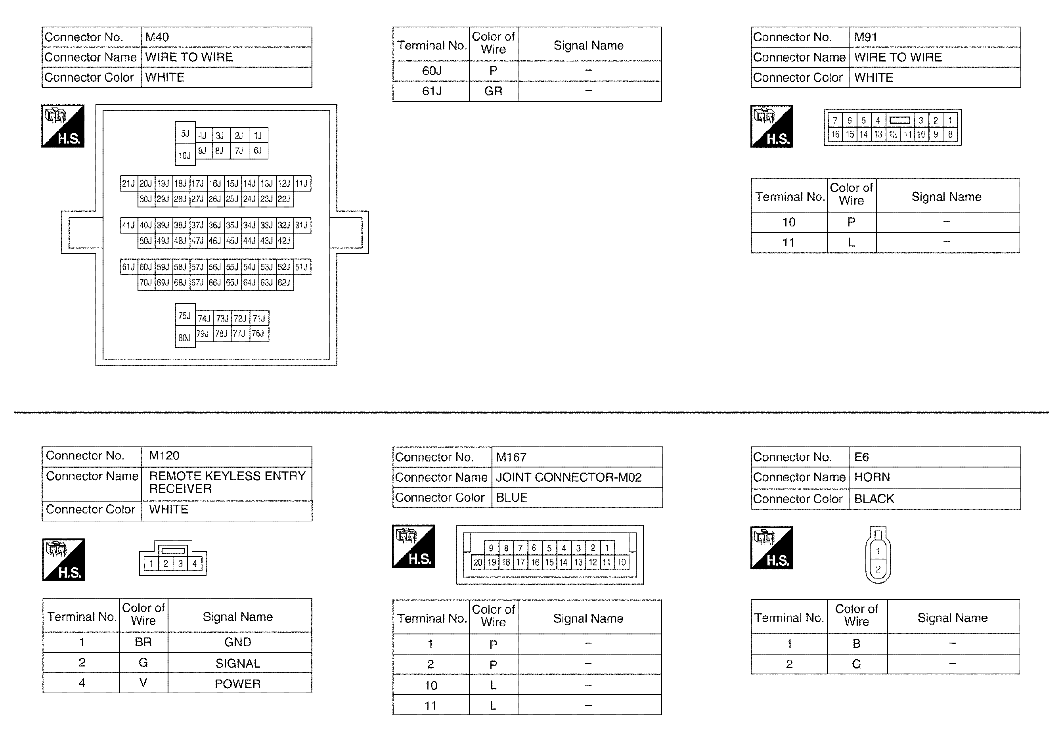

Fig 4: Remote Keyless Entry System - Wiring Diagram [Crew Cab] (4 Of 9)

Courtesy of SUZUKI OF AMERICA CORP.

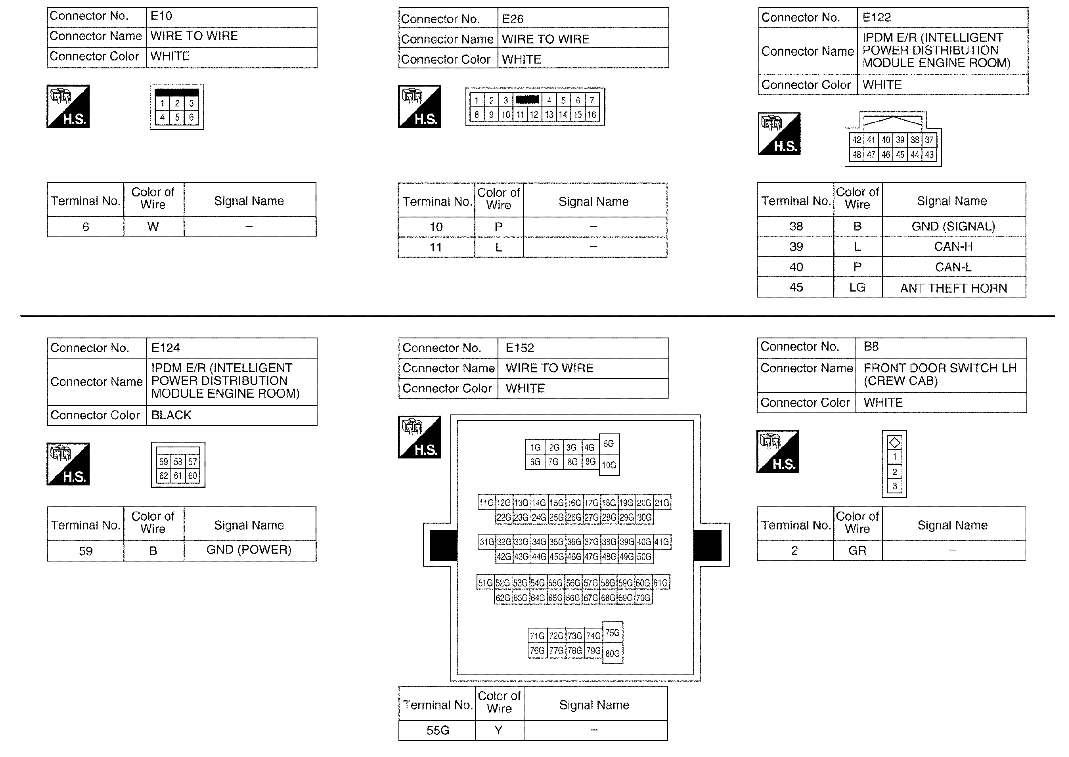

Fig 5: Remote Keyless Entry System - Wiring Diagram [Crew Cab] (5 Of 9)

Courtesy of SUZUKI OF AMERICA CORP.

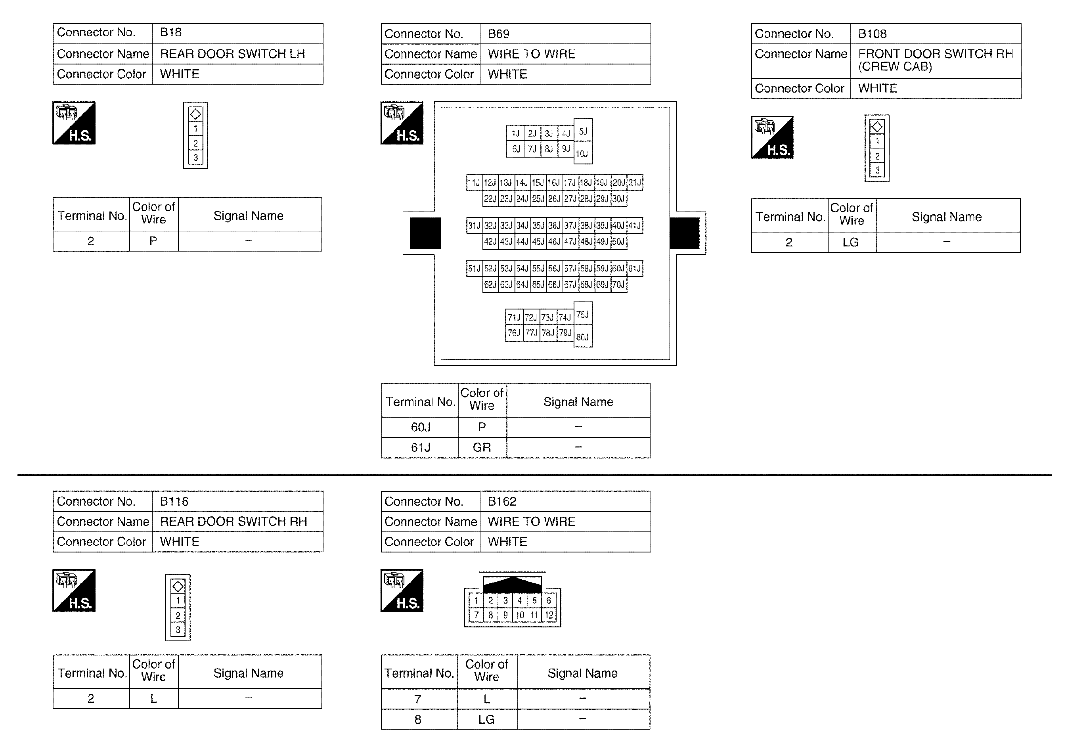

Fig 6: Remote Keyless Entry System - Wiring Diagram [Crew Cab] (6 Of 9)

Courtesy of SUZUKI OF AMERICA CORP.

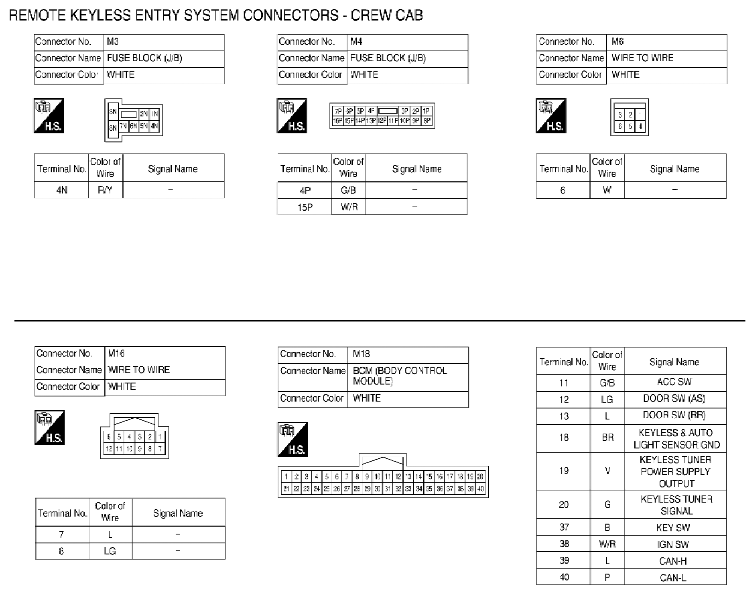

Fig 7: Remote Keyless Entry System - Wiring Diagram [Crew Cab] (7 Of 9)

Courtesy of SUZUKI OF AMERICA CORP.

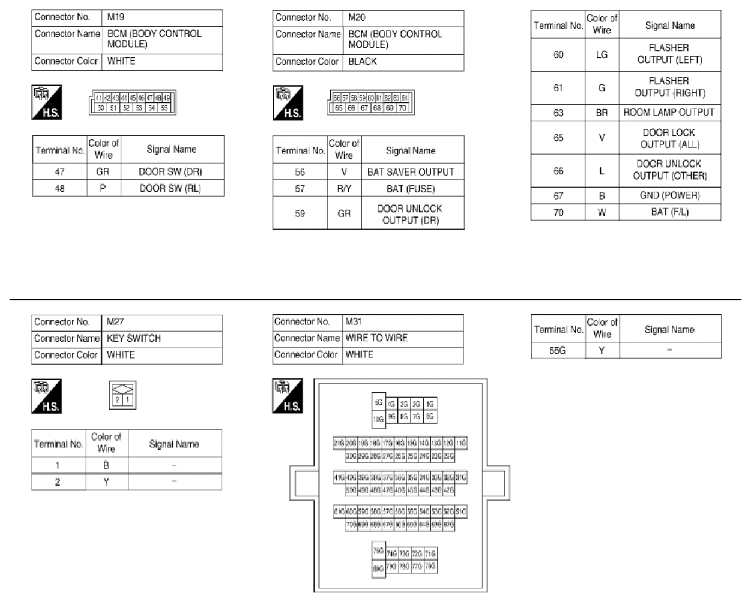

Fig 8: Remote Keyless Entry System - Wiring Diagram [Crew Cab] (8 Of 9)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 9: Remote Keyless Entry System - Wiring Diagram [Crew Cab] (9 Of 9)

Courtesy of SUZUKI OF AMERICA CORP.
