Rear Window Defogger: Wiring Diagram

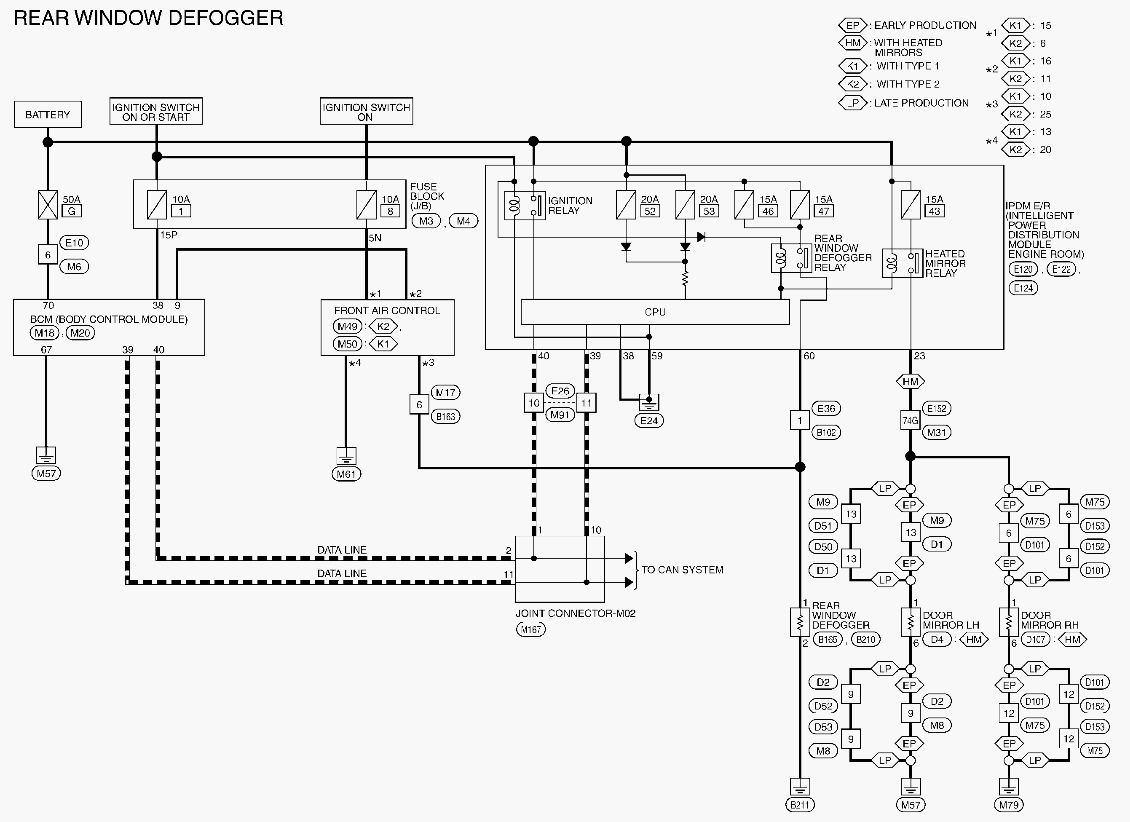

Fig 1: Defogger Control System - Wiring Diagram (1 Of 7)

Courtesy of SUZUKI OF AMERICA CORP.

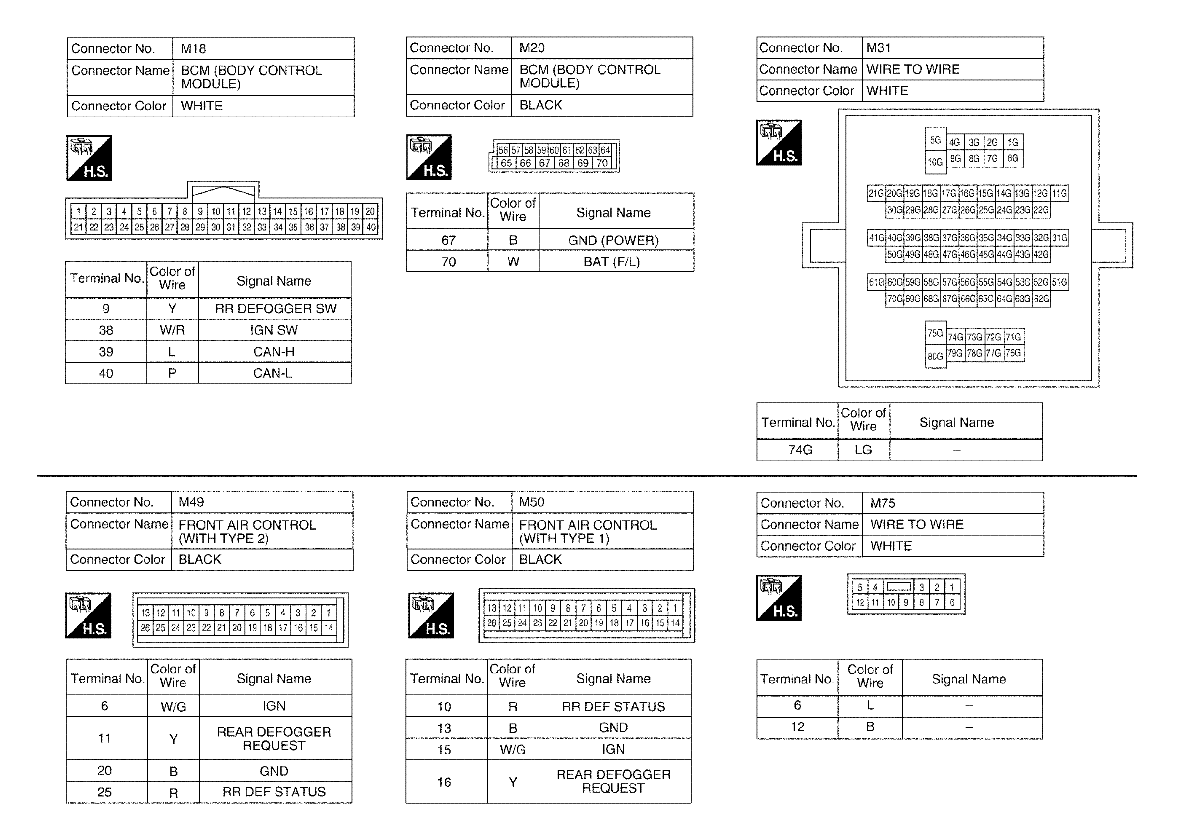

Fig 2: Defogger Control System - Wiring Diagram (2 Of 7)

Courtesy of SUZUKI OF AMERICA CORP.

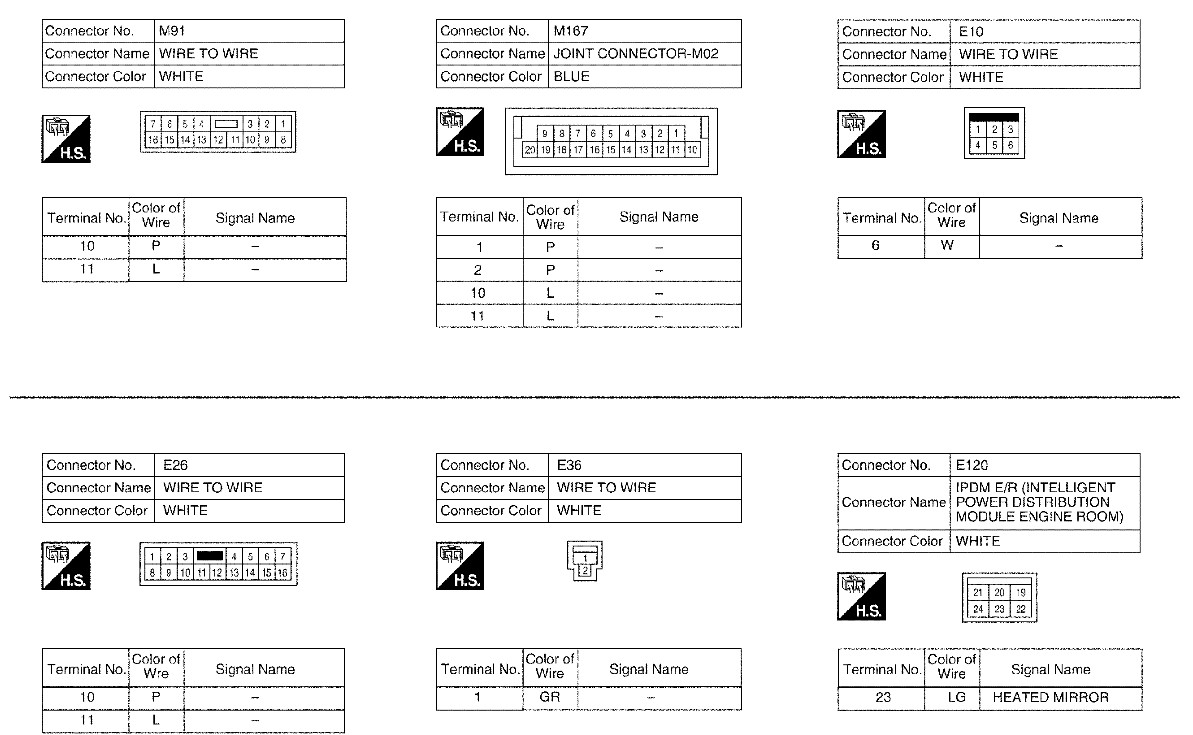

Fig 3: Defogger Control System - Wiring Diagram (3 Of 7)

Courtesy of SUZUKI OF AMERICA CORP.

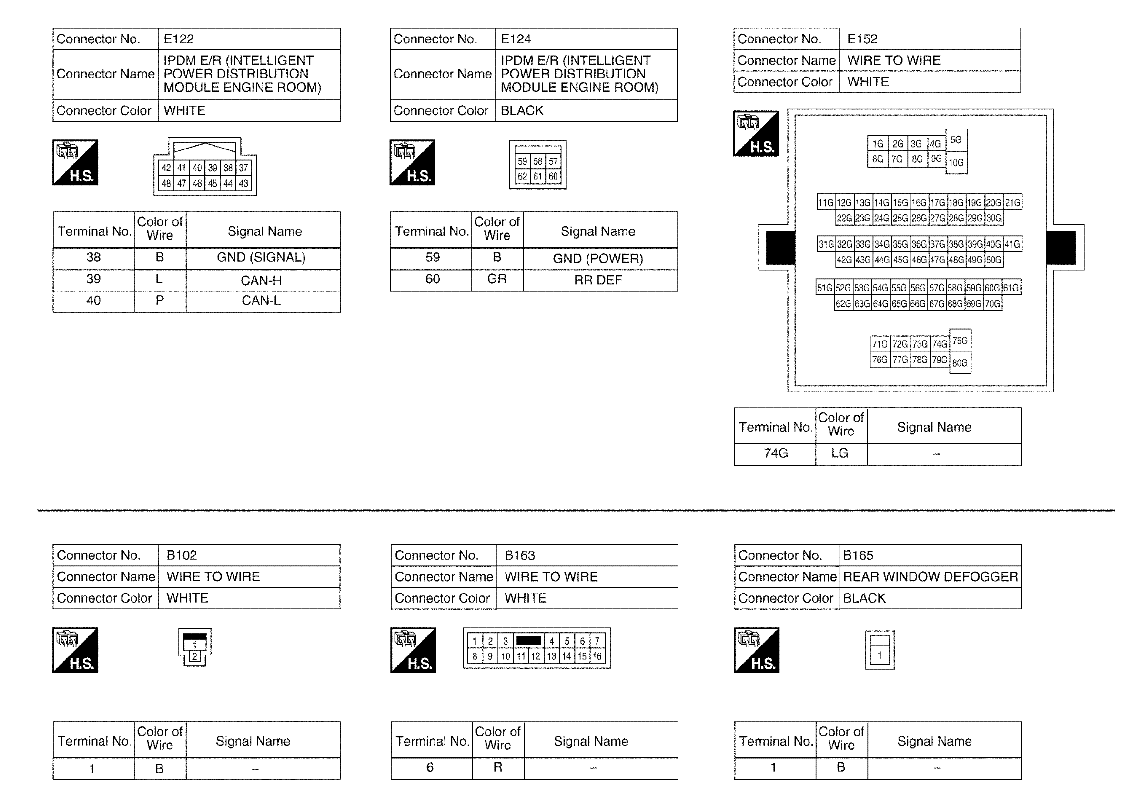

Fig 4: Defogger Control System - Wiring Diagram (4 Of 7)

Courtesy of SUZUKI OF AMERICA CORP.

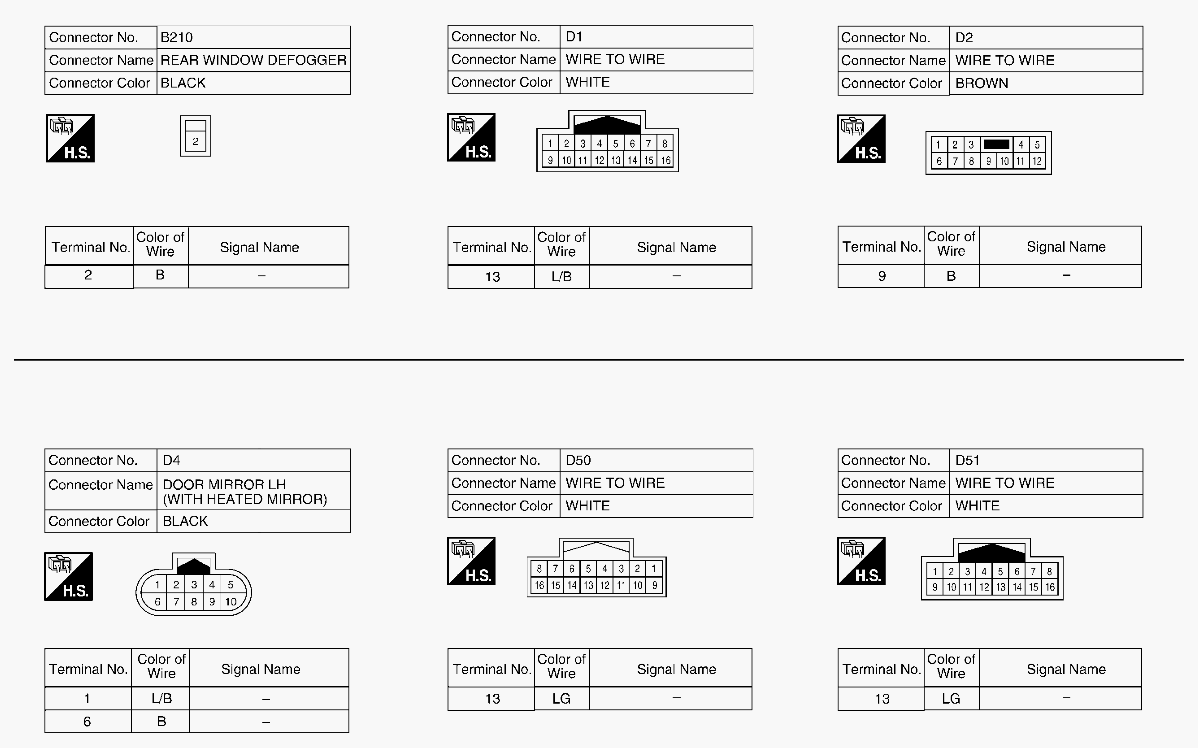

Fig 5: Defogger Control System - Wiring Diagram (5 Of 7)

Courtesy of SUZUKI OF AMERICA CORP.

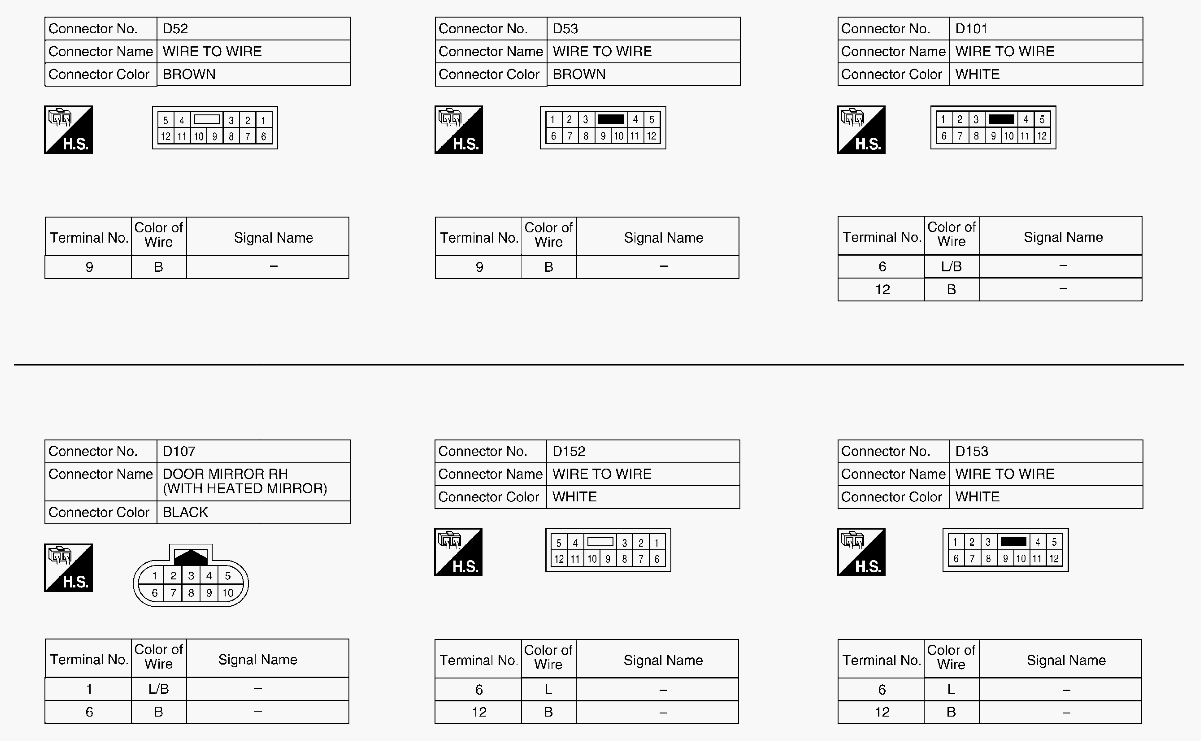

Fig 6: Defogger Control System - Wiring Diagram (6 Of 7)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 7: Defogger Control System - Wiring Diagram (7 Of 7)

Courtesy of SUZUKI OF AMERICA CORP.
