Premium Audio System: Wiring Diagram [King Cab]

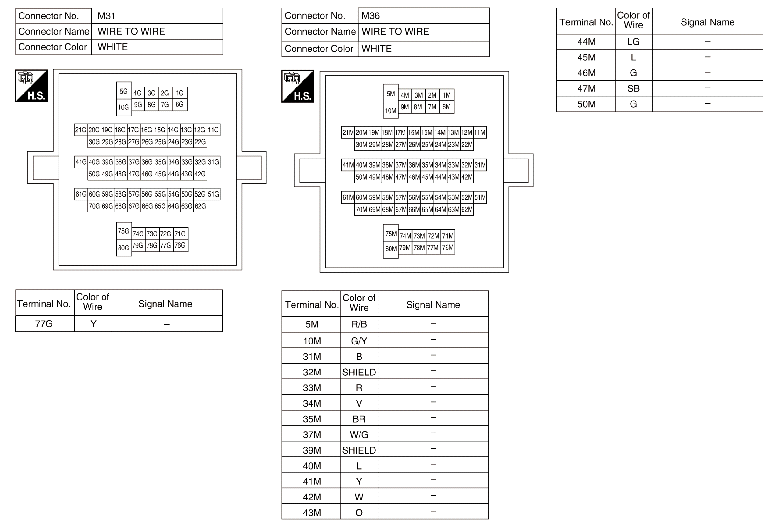

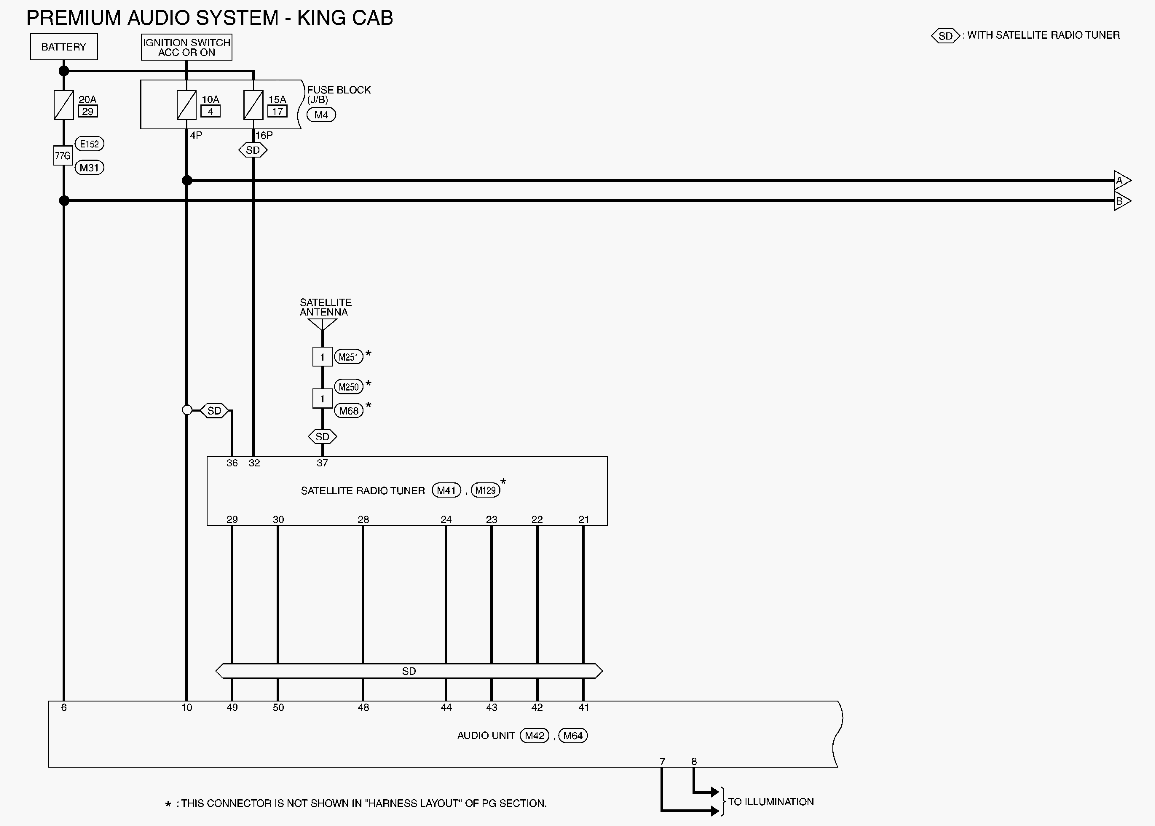

Fig 1: Audio Unit - Wiring Diagram [Premium Audio (King Cab)] (1 Of 14)

Courtesy of SUZUKI OF AMERICA CORP.

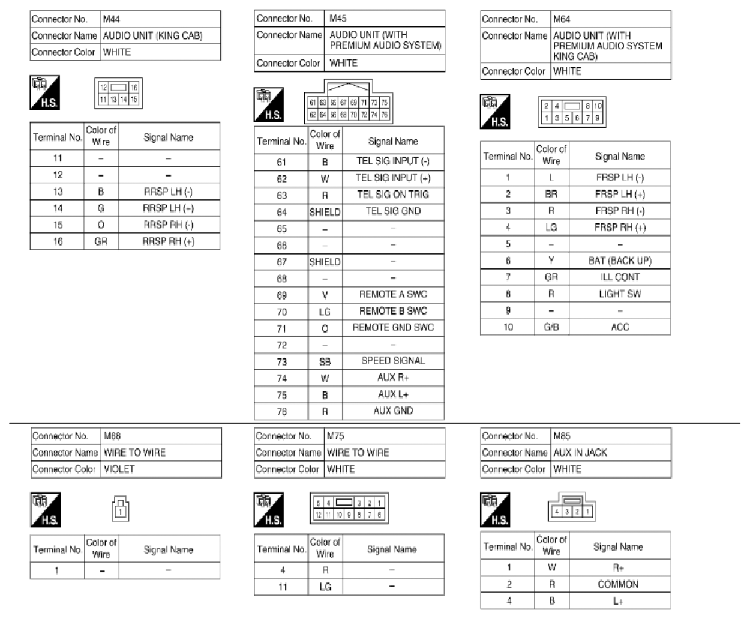

Fig 2: Audio Unit - Wiring Diagram [Premium Audio (King Cab)] (2 Of 14)

Courtesy of SUZUKI OF AMERICA CORP.

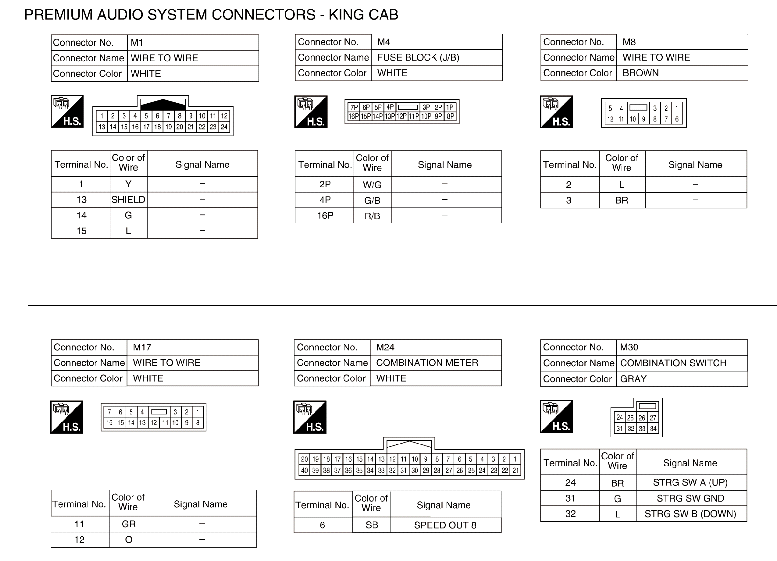

Fig 3: Audio Unit - Wiring Diagram [Premium Audio (King Cab)] (3 Of 14)

Courtesy of SUZUKI OF AMERICA CORP.

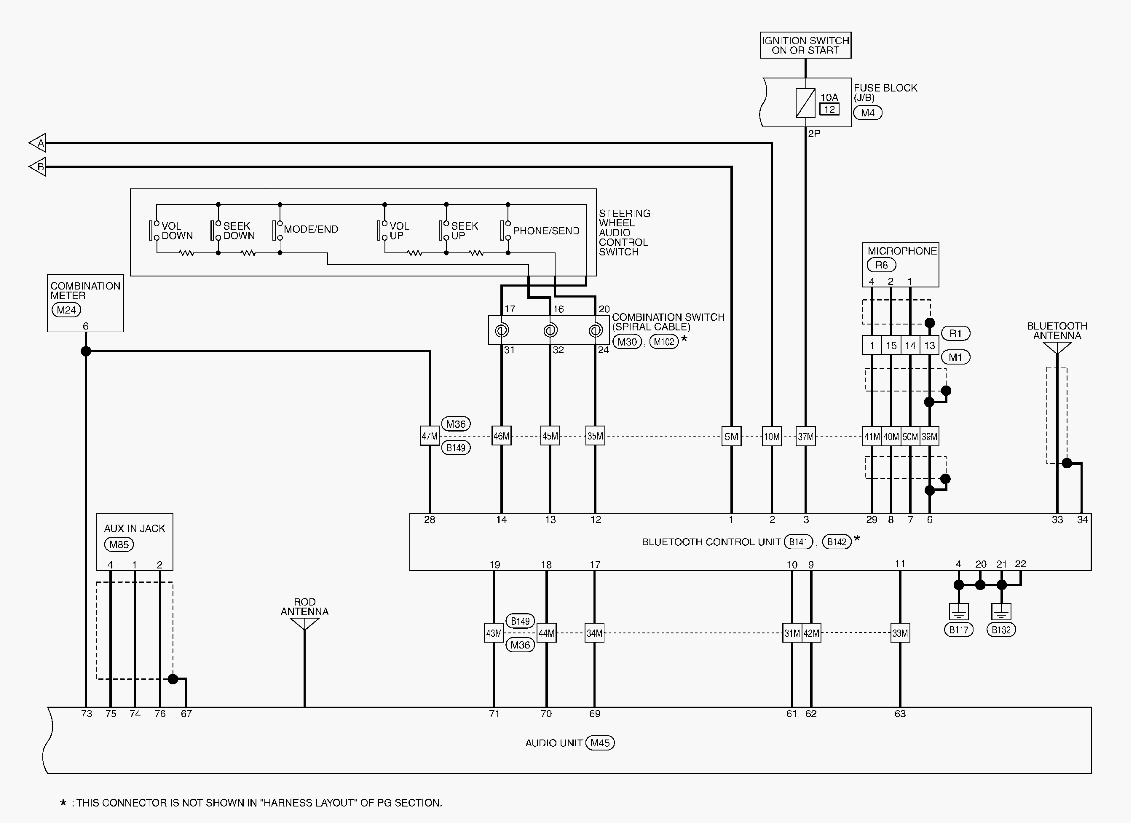

Fig 4: Audio Unit - Wiring Diagram [Premium Audio (King Cab)] (4 Of 14)

Courtesy of SUZUKI OF AMERICA CORP.

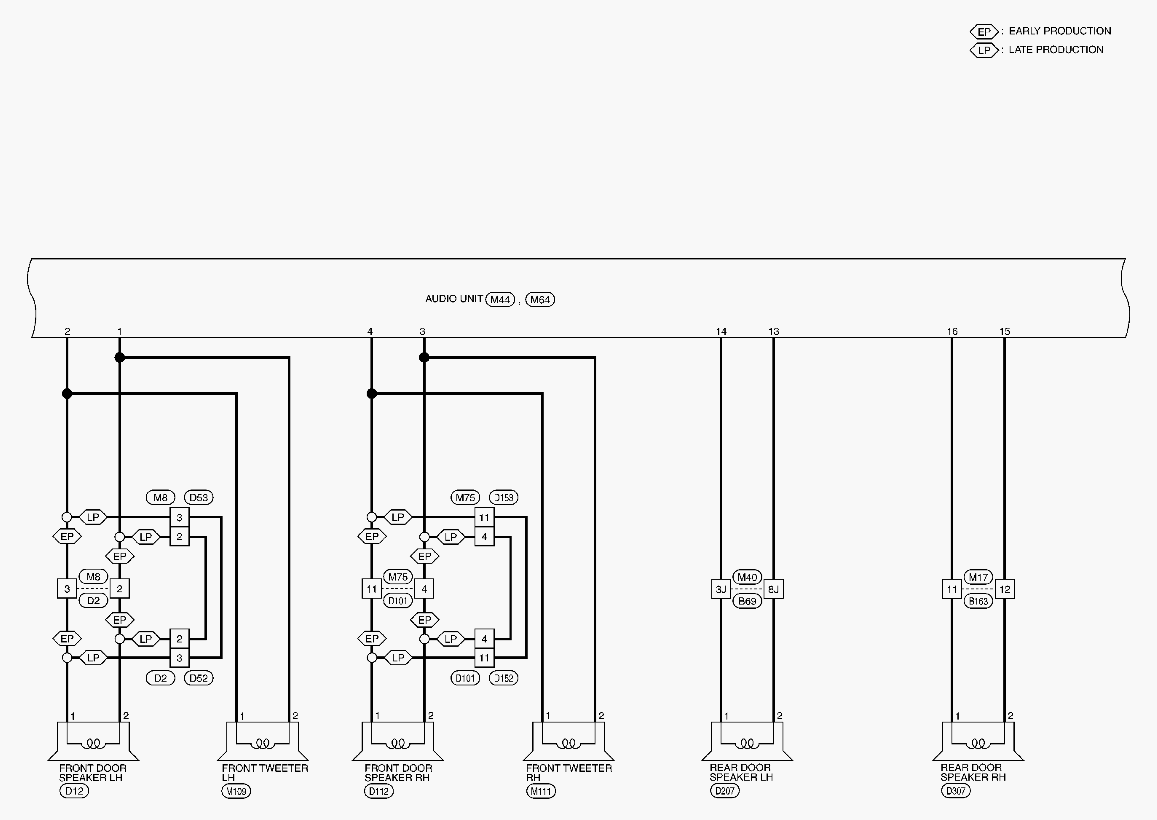

Fig 5: Audio Unit - Wiring Diagram [Premium Audio (King Cab)] (5 Of 14)

Courtesy of SUZUKI OF AMERICA CORP.

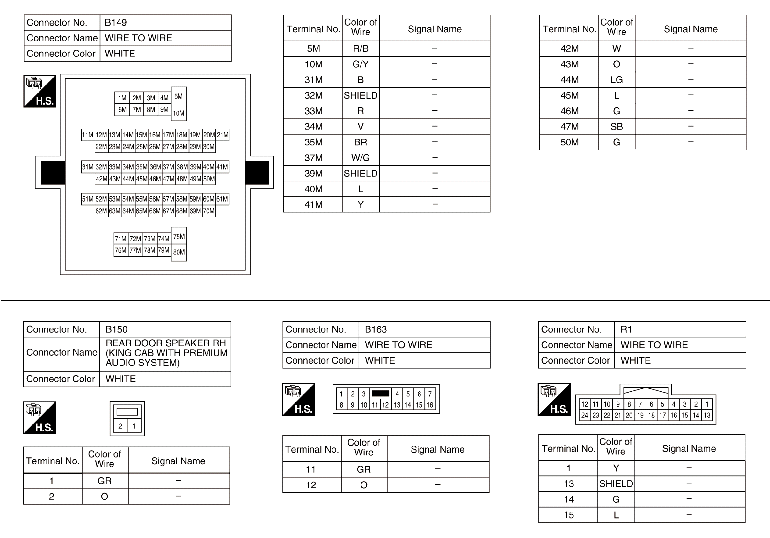

Fig 6: Audio Unit - Wiring Diagram [Premium Audio (King Cab)] (6 Of 14)

Courtesy of SUZUKI OF AMERICA CORP.

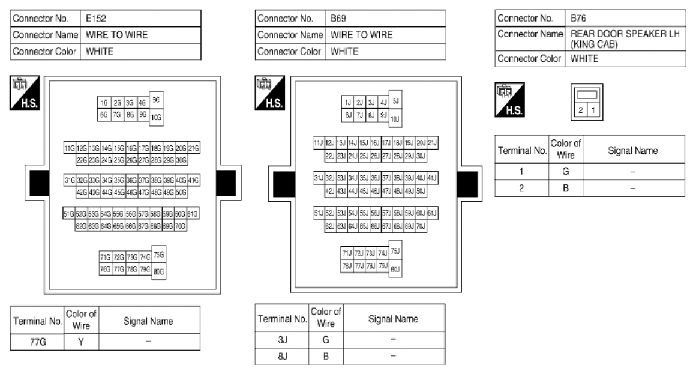

Fig 7: Audio Unit - Wiring Diagram [Premium Audio (King Cab)] (7 Of 14)

Courtesy of SUZUKI OF AMERICA CORP.

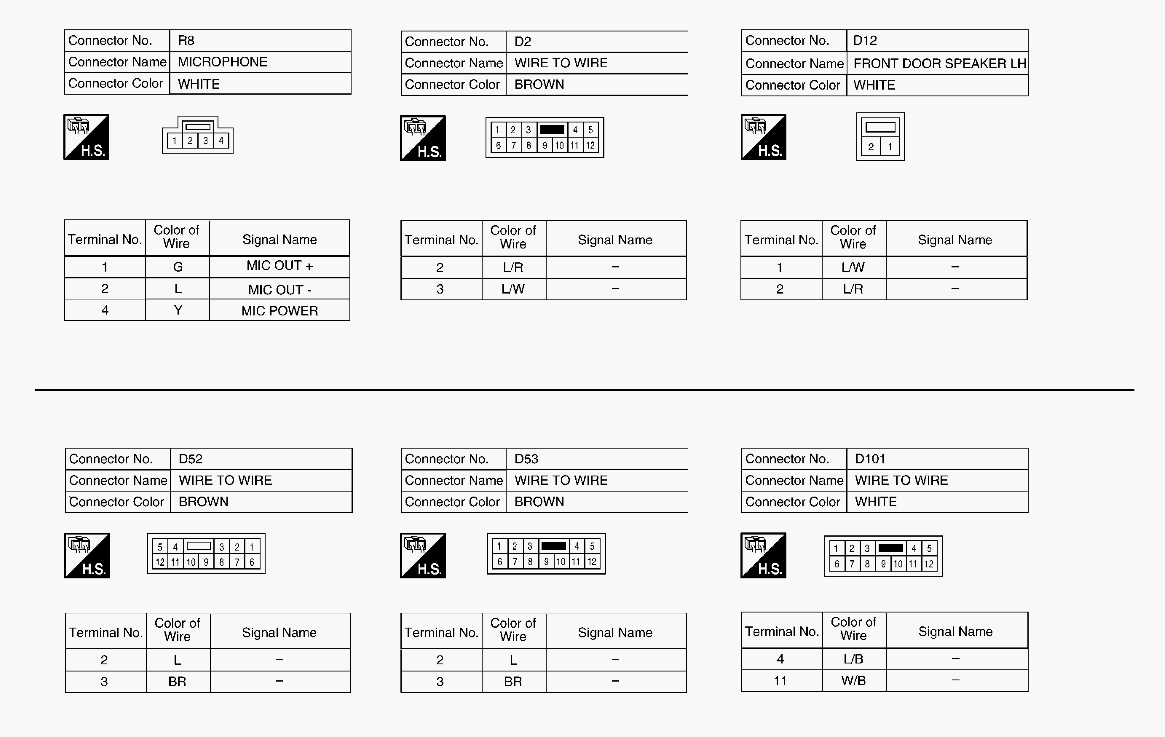

Fig 8: Audio Unit - Wiring Diagram [Premium Audio (King Cab)] (8 Of 14)

Courtesy of SUZUKI OF AMERICA CORP.

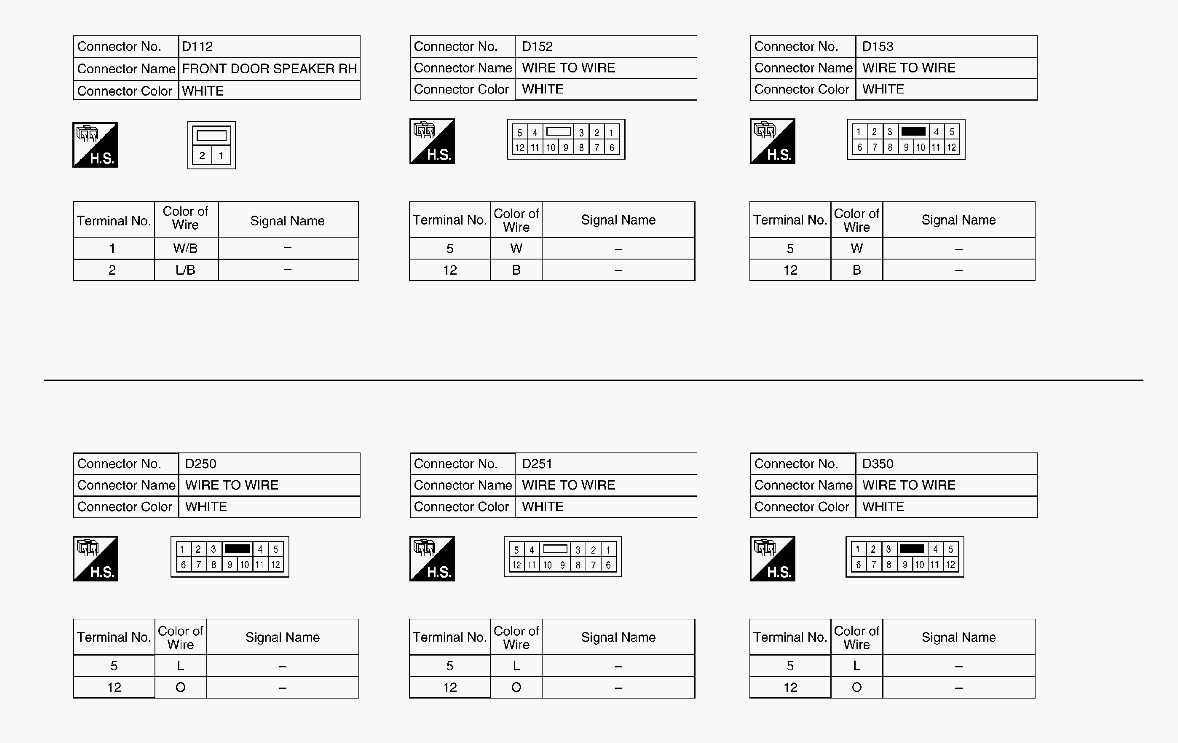

Fig 9: Audio Unit - Wiring Diagram [Premium Audio (King Cab)] (9 Of 14)

Courtesy of SUZUKI OF AMERICA CORP.

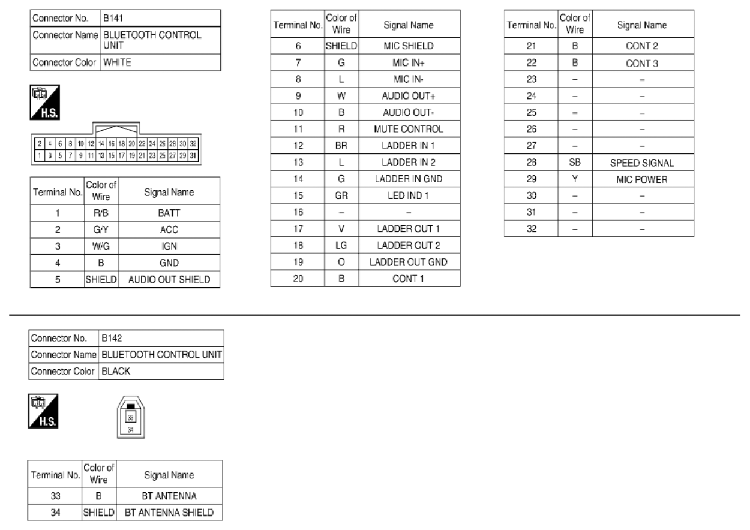

Fig 10: Audio Unit - Wiring Diagram [Premium Audio (King Cab)] (10 Of 14)

Courtesy of SUZUKI OF AMERICA CORP.

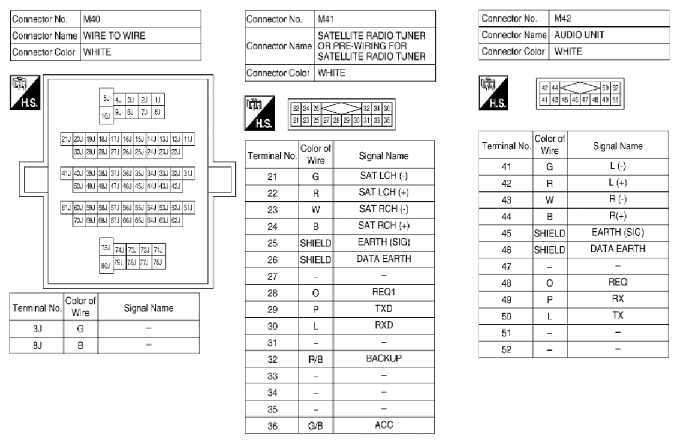

Fig 11: Audio Unit - Wiring Diagram [Premium Audio (King Cab)] (11 Of 14)

Courtesy of SUZUKI OF AMERICA CORP.

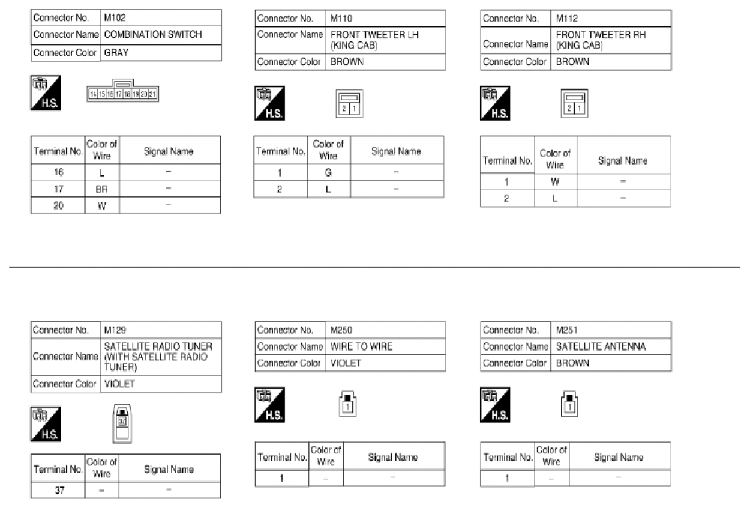

Fig 12: Audio Unit - Wiring Diagram [Premium Audio (King Cab)] (12 Of 14)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 13: Audio Unit - Wiring Diagram [Premium Audio (King Cab)] (13 Of 14)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 14: Audio Unit - Wiring Diagram [Premium Audio (King Cab)] (14 Of 14)

Courtesy of SUZUKI OF AMERICA CORP.
