Power Window System: Wiring Diagram [Crew Cab]

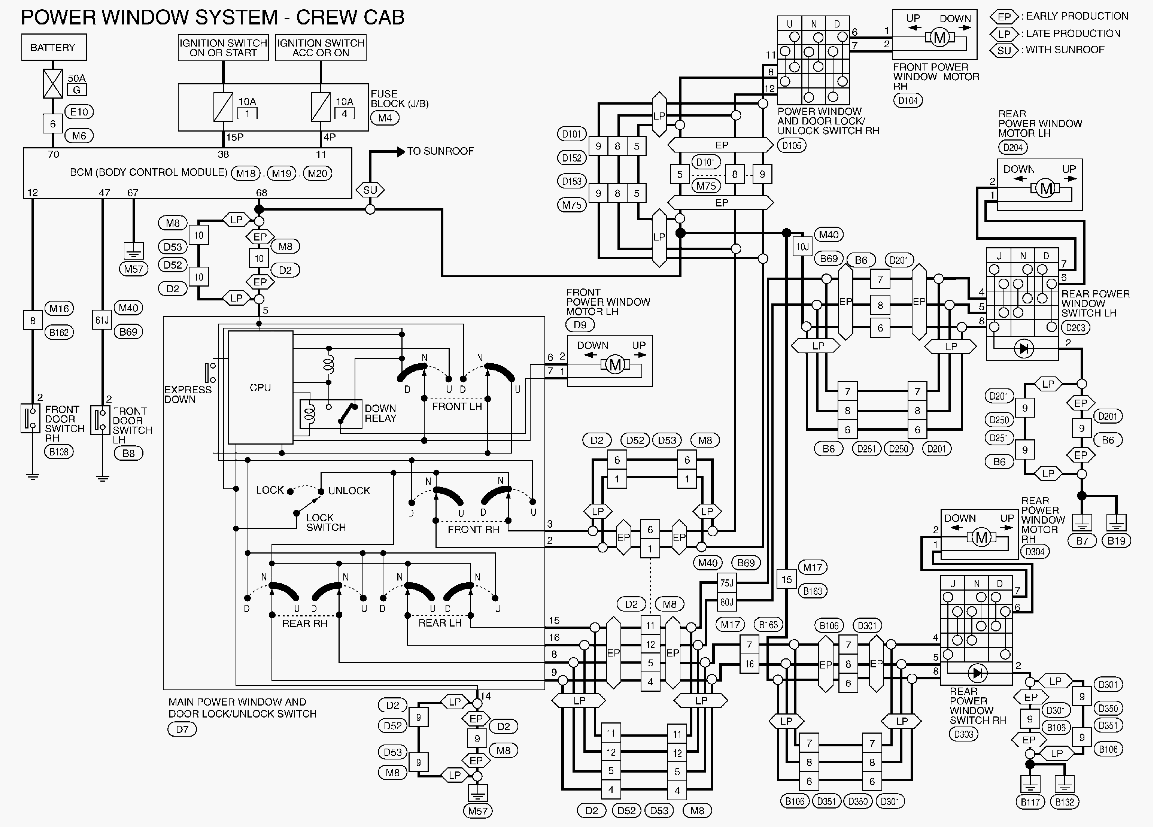

Fig 1: Power Window System - Wiring Diagram (Crew Cab) (1 Of 8)

Courtesy of SUZUKI OF AMERICA CORP.

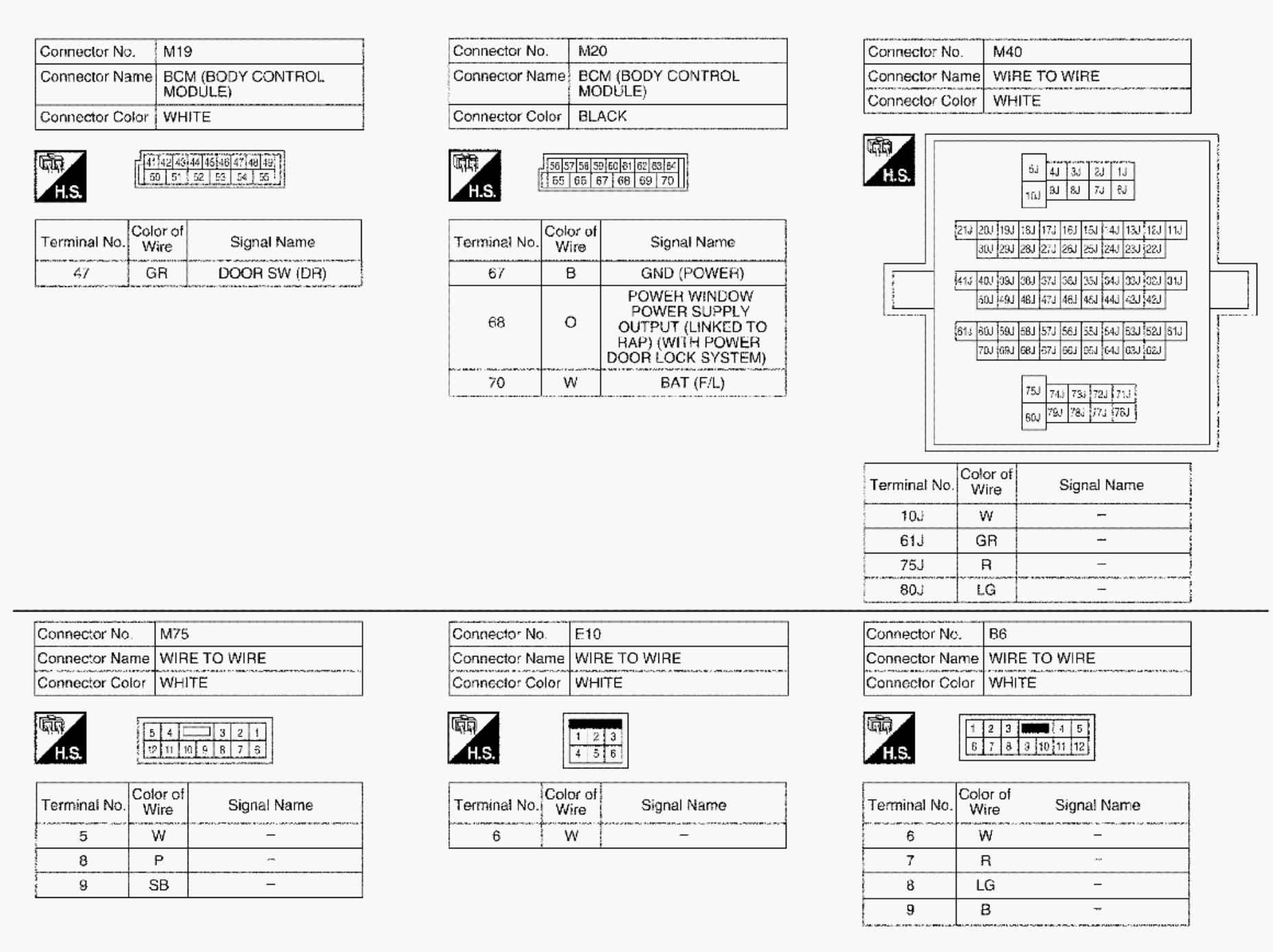

Fig 2: Power Window System - Wiring Diagram (Crew Cab) (2 Of 8)

Courtesy of SUZUKI OF AMERICA CORP.

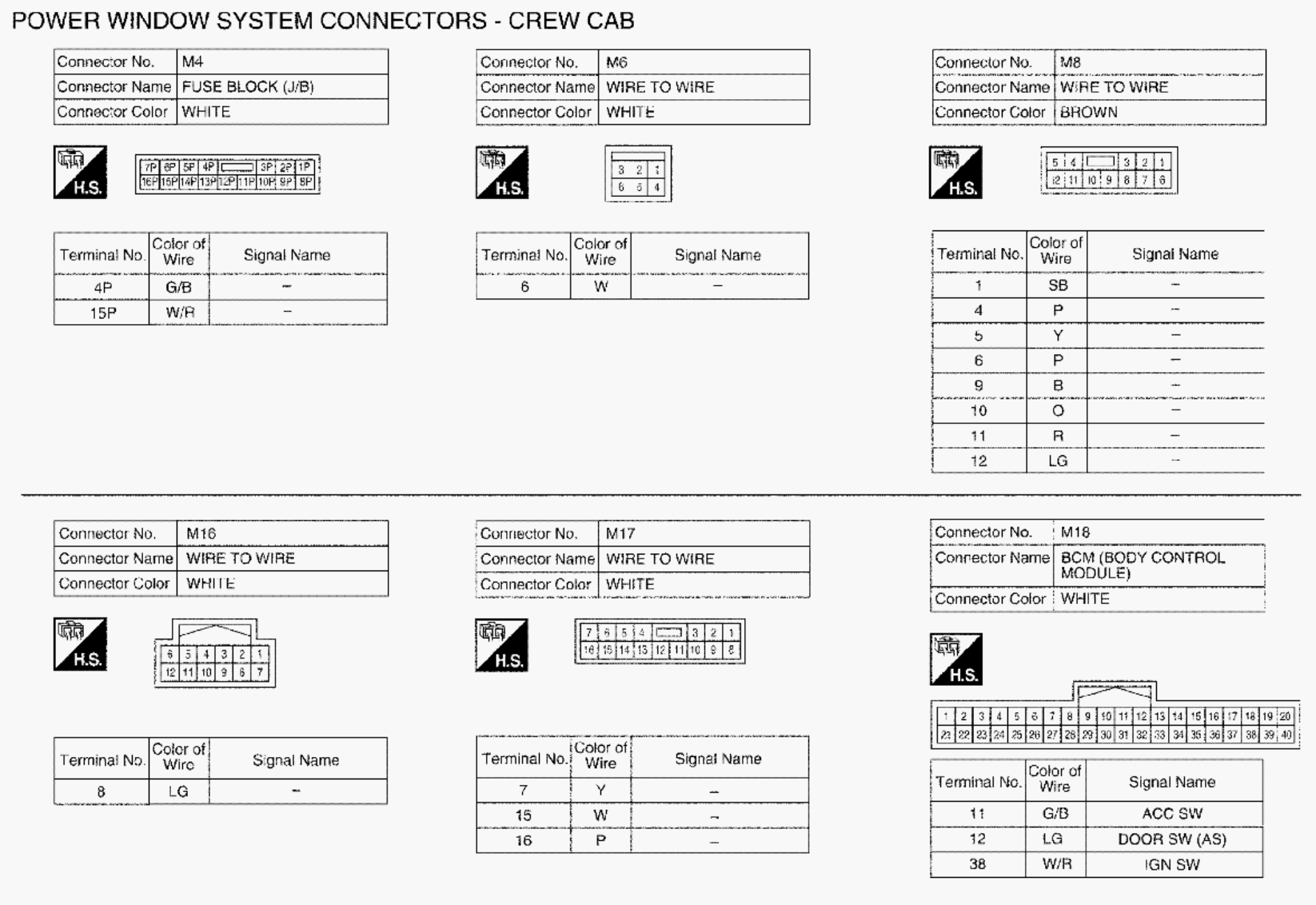

Fig 3: Power Window System - Wiring Diagram (Crew Cab) (3 Of 8)

Courtesy of SUZUKI OF AMERICA CORP.

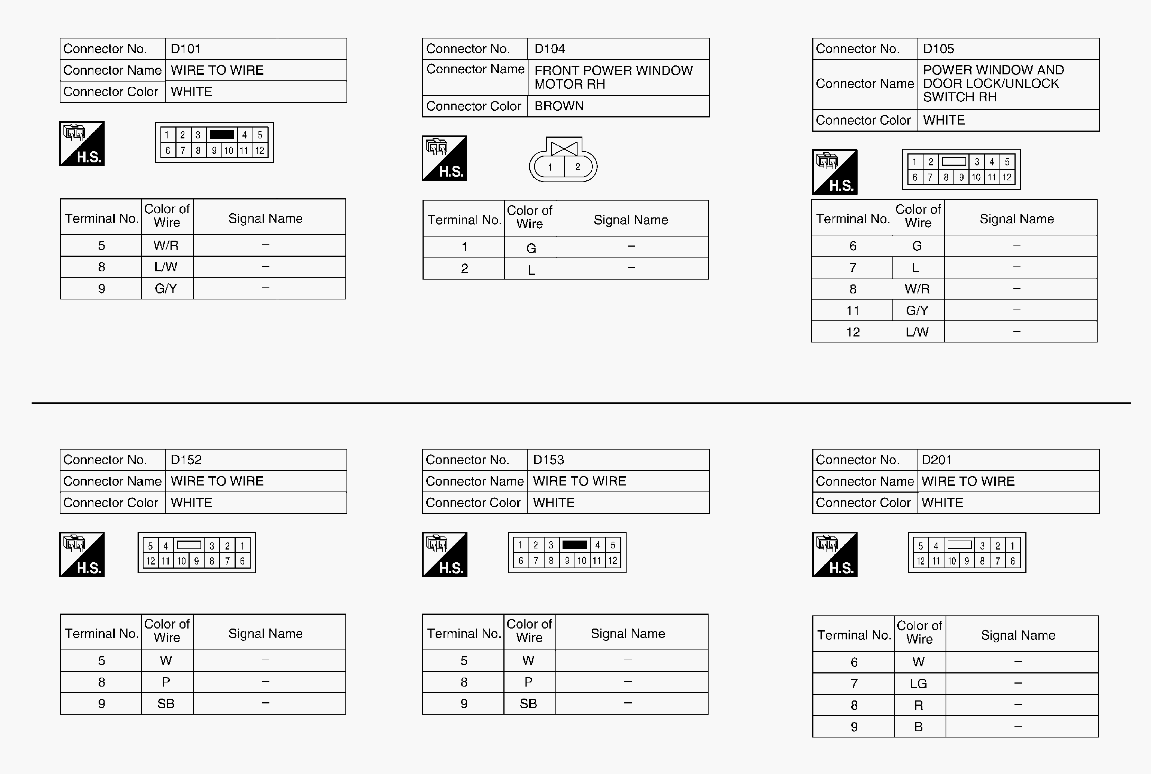

Fig 4: Power Window System - Wiring Diagram (Crew Cab) (4 Of 8)

Courtesy of SUZUKI OF AMERICA CORP.

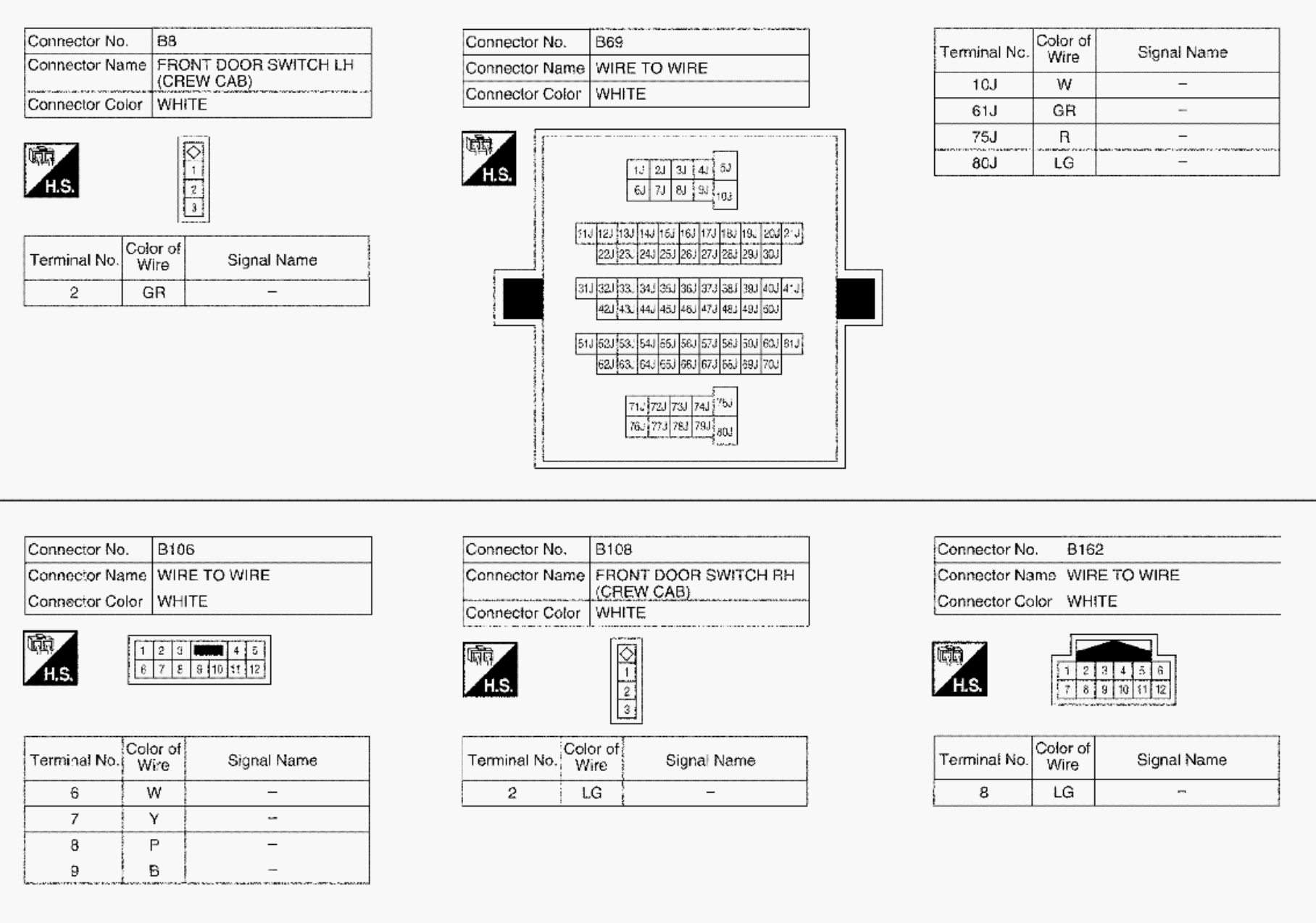

Fig 5: Power Window System - Wiring Diagram (Crew Cab) (5 Of 8)

Courtesy of SUZUKI OF AMERICA CORP.

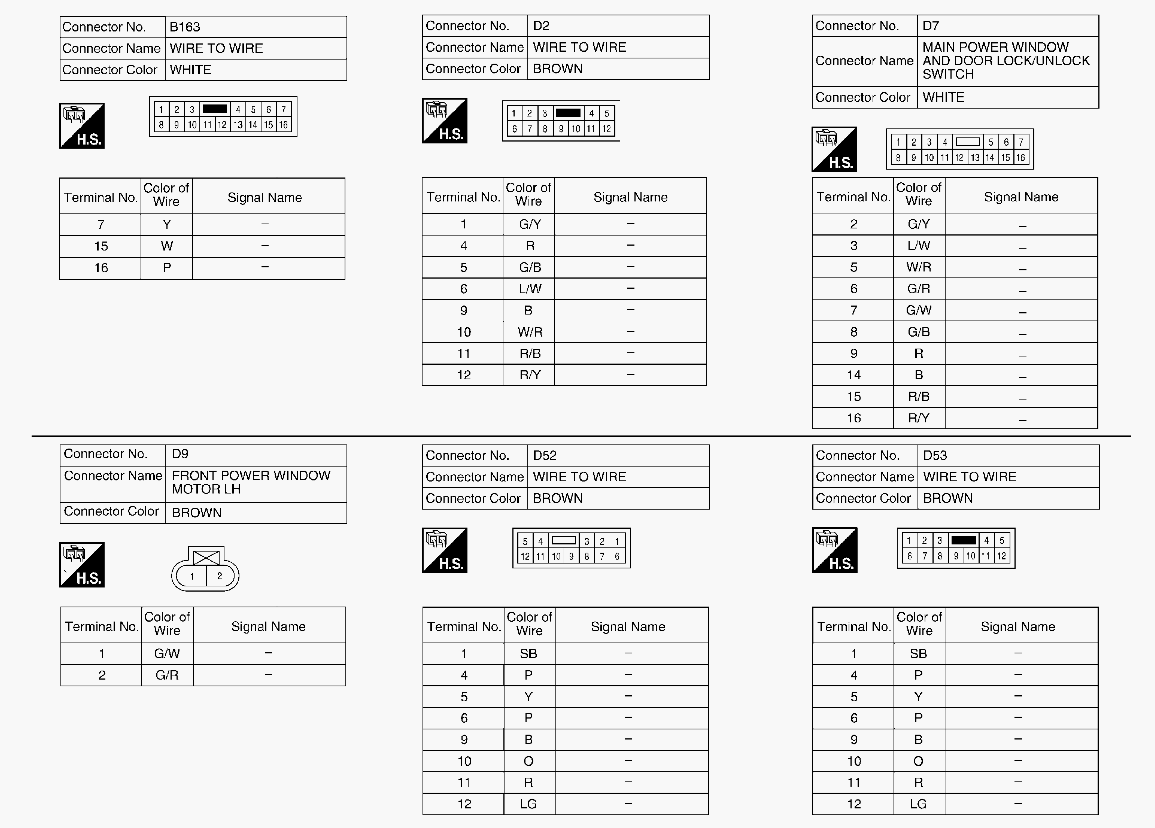

Fig 6: Power Window System - Wiring Diagram (Crew Cab) (6 Of 8)

Courtesy of SUZUKI OF AMERICA CORP.

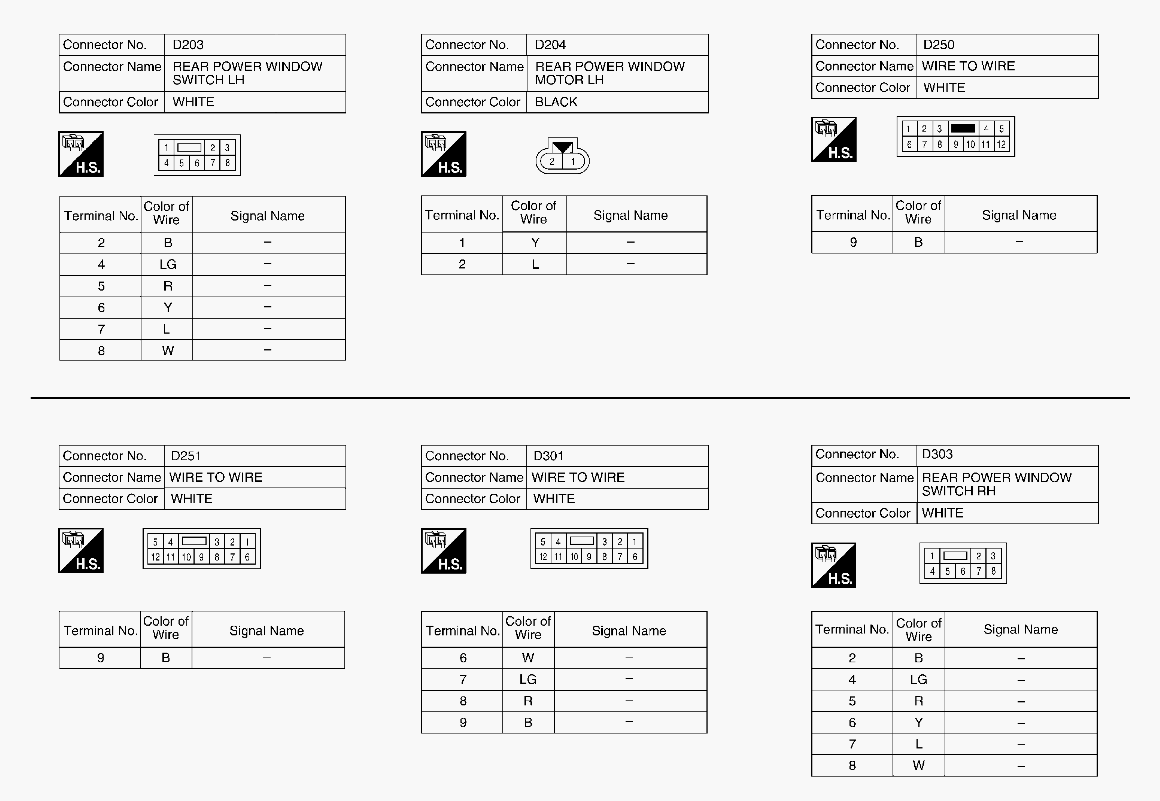

Fig 7: Power Window System - Wiring Diagram (Crew Cab) (7 Of 8)

Courtesy of SUZUKI OF AMERICA CORP.

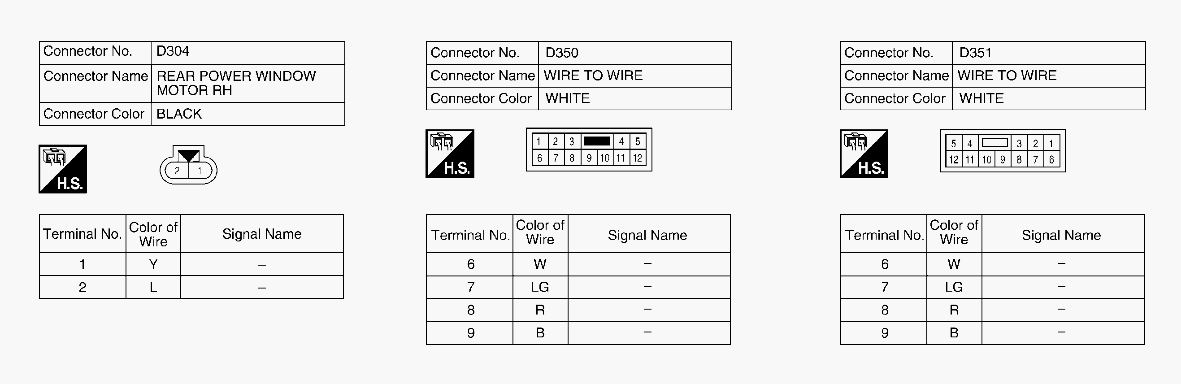

Fig 8: Power Window System - Wiring Diagram (Crew Cab) (8 Of 8)

Courtesy of SUZUKI OF AMERICA CORP.
