Power Socket: Wiring Diagram [Late Production]

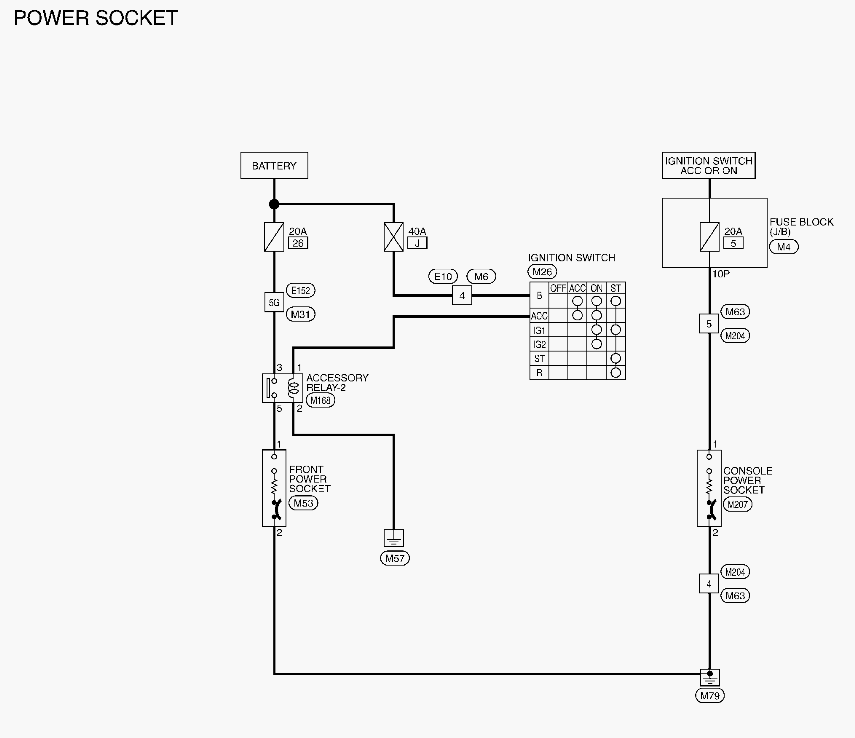

Fig 1: Power Socket - Wiring Diagram (1 Of 3)
Courtesy of SUZUKI OF AMERICA CORP.

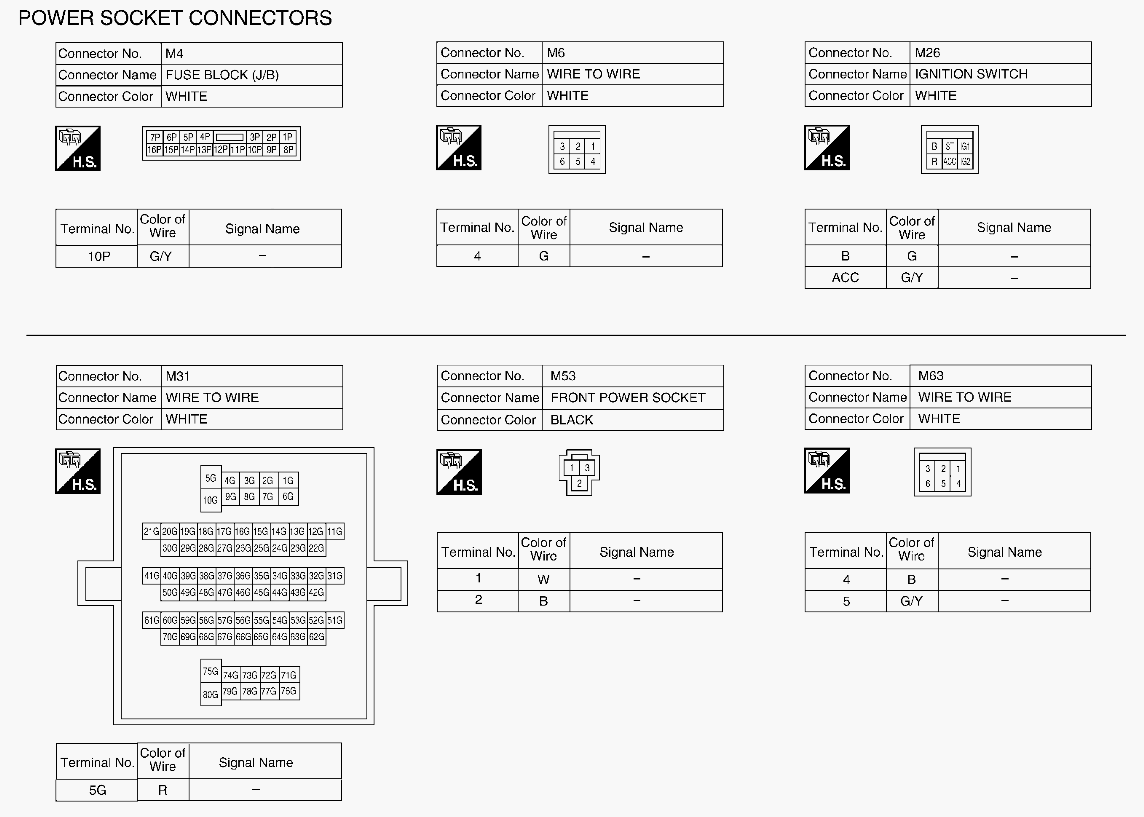

Fig 2: Power Socket - Wiring Diagram (2 Of 3)
Courtesy of SUZUKI OF AMERICA CORP.

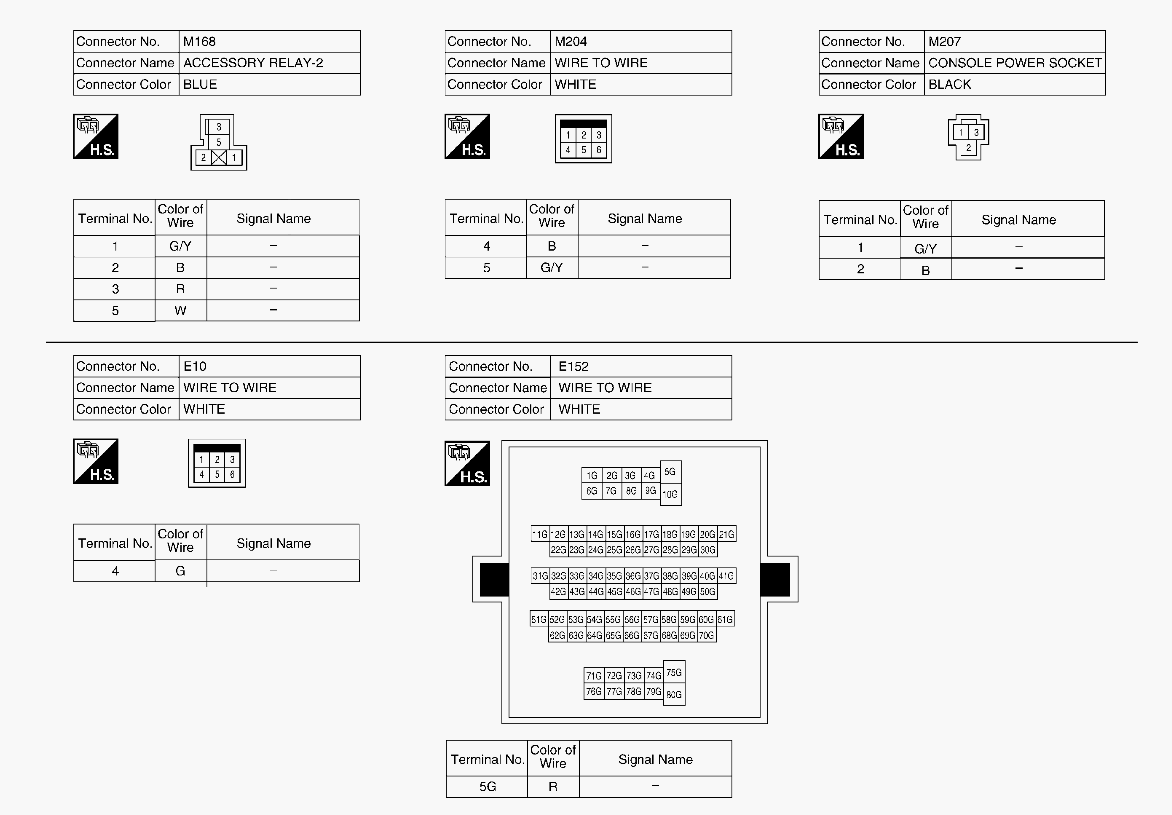

Fig 3: Power Socket - Wiring Diagram (3 Of 3)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
