Power Seat: Wiring Diagram [Passenger Side]

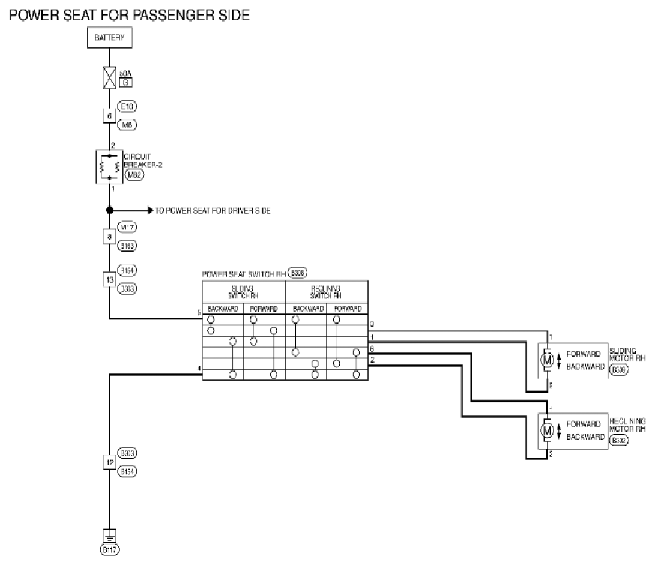

Fig 1: Power Seat - Wiring Diagram [Passenger Side] (1 Of 3)
Courtesy of SUZUKI OF AMERICA CORP.

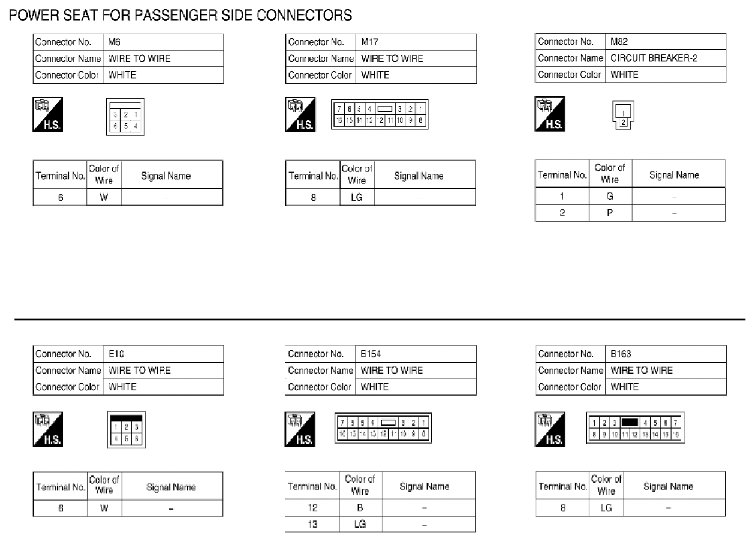

Fig 2: Power Seat - Wiring Diagram [Passenger Side] (2 Of 3)
Courtesy of SUZUKI OF AMERICA CORP.

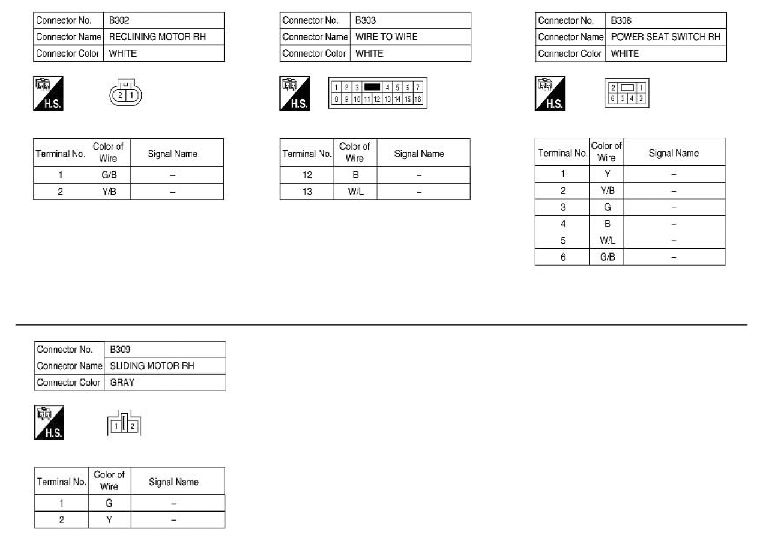

Fig 3: Power Seat - Wiring Diagram [Passenger Side] (3 Of 3)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
