Power Seat: Wiring Diagram [Driver Side]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Power Seat: Wiring Diagram [Driver Side]

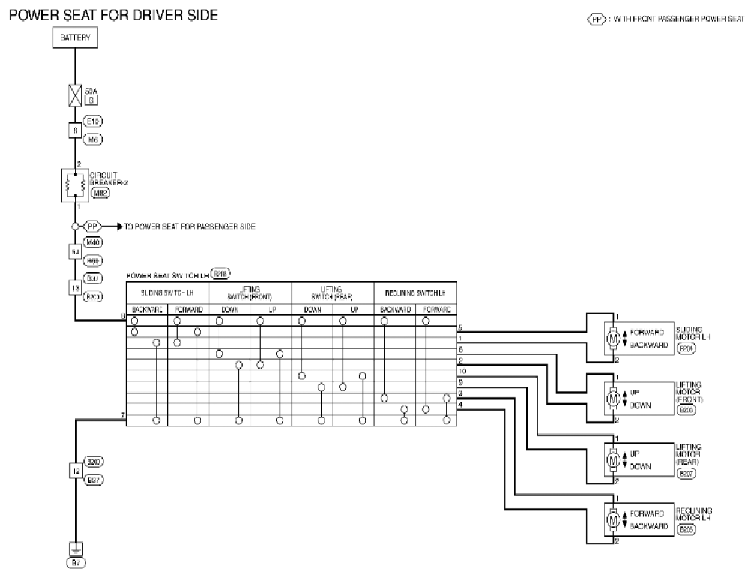

Fig 1: Power Seat - Wiring Diagram [Driver Side] (1 Of 4)
Courtesy of SUZUKI OF AMERICA CORP.

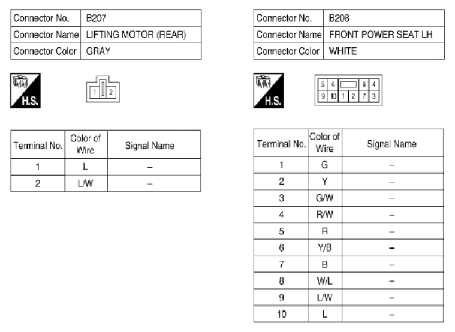

Fig 2: Power Seat - Wiring Diagram [Driver Side] (2 Of 4)
Courtesy of SUZUKI OF AMERICA CORP.

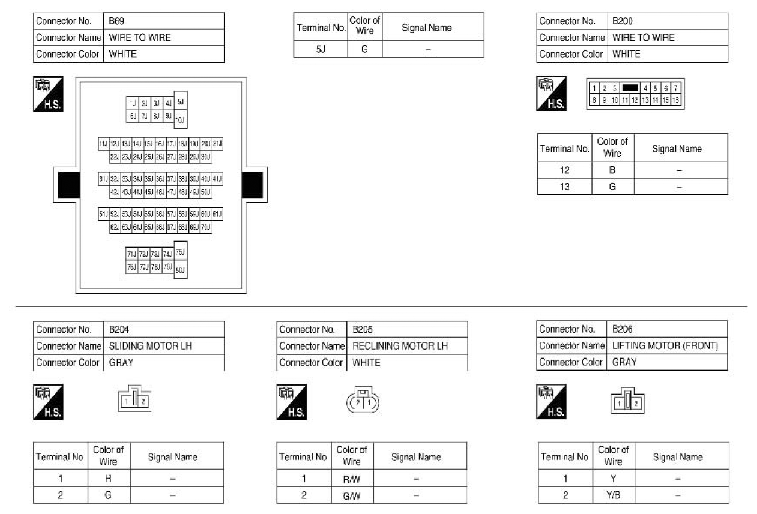

Fig 3: Power Seat - Wiring Diagram [Driver Side] (3 Of 4)
Courtesy of SUZUKI OF AMERICA CORP.

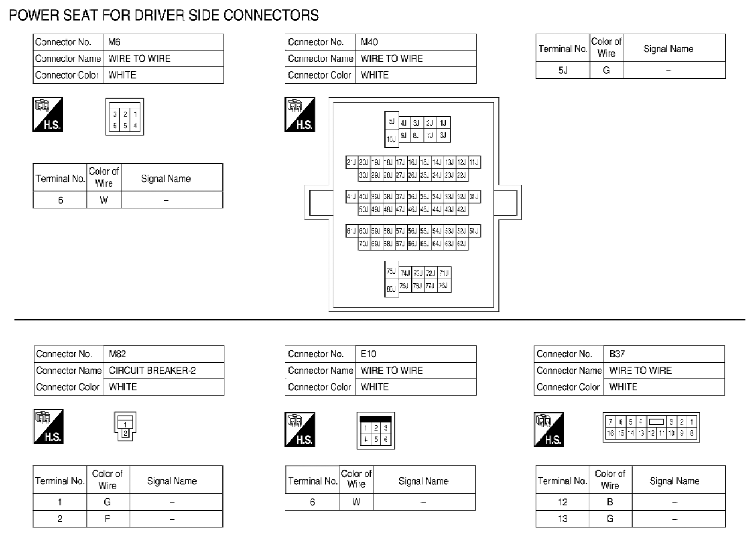

Fig 4: Power Seat - Wiring Diagram [Driver Side] (4 Of 4)
Courtesy of SUZUKI OF AMERICA CORP.
