Power Door Lock System: Wiring Diagram [King Cab]

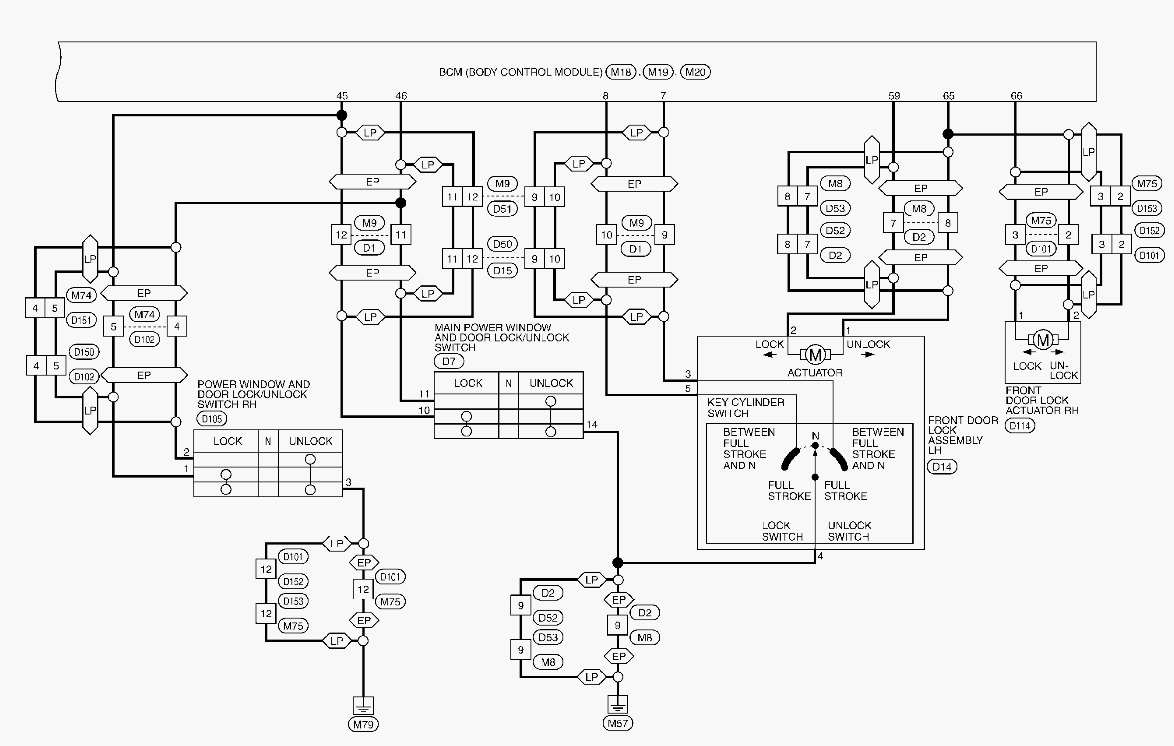

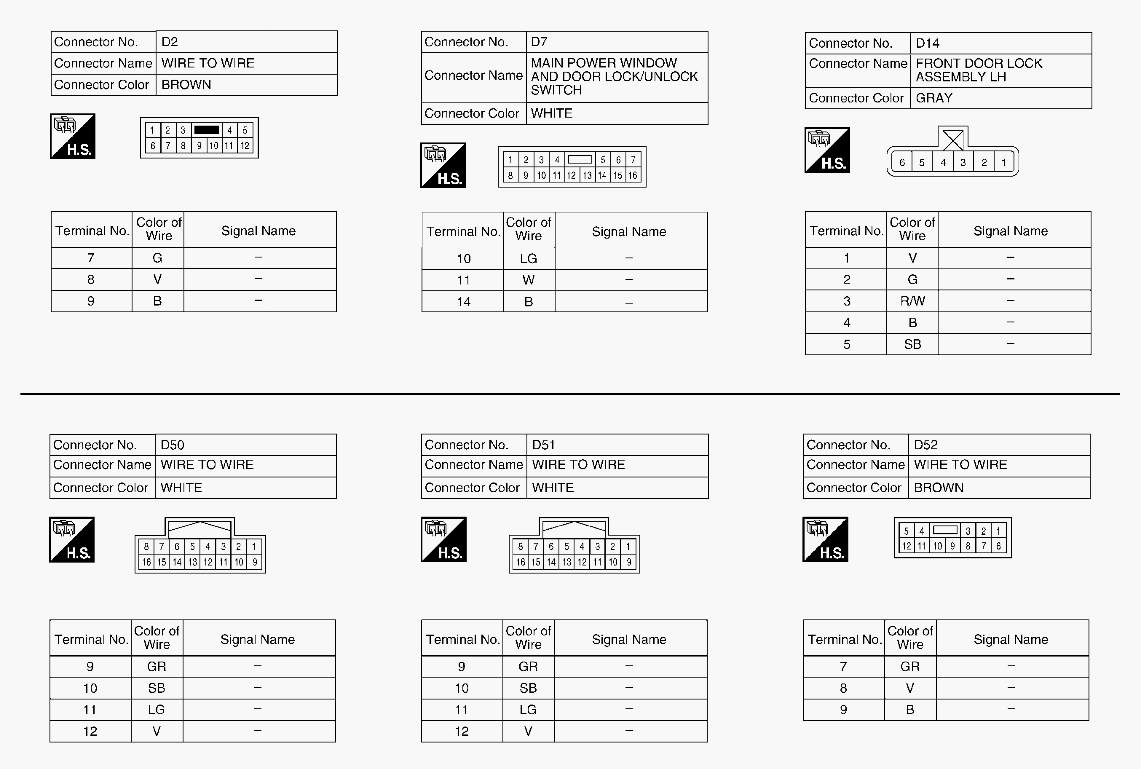

Fig 1: Power Door Lock System - Wiring Diagram [King Cab] (1 Of 10)

Courtesy of SUZUKI OF AMERICA CORP.

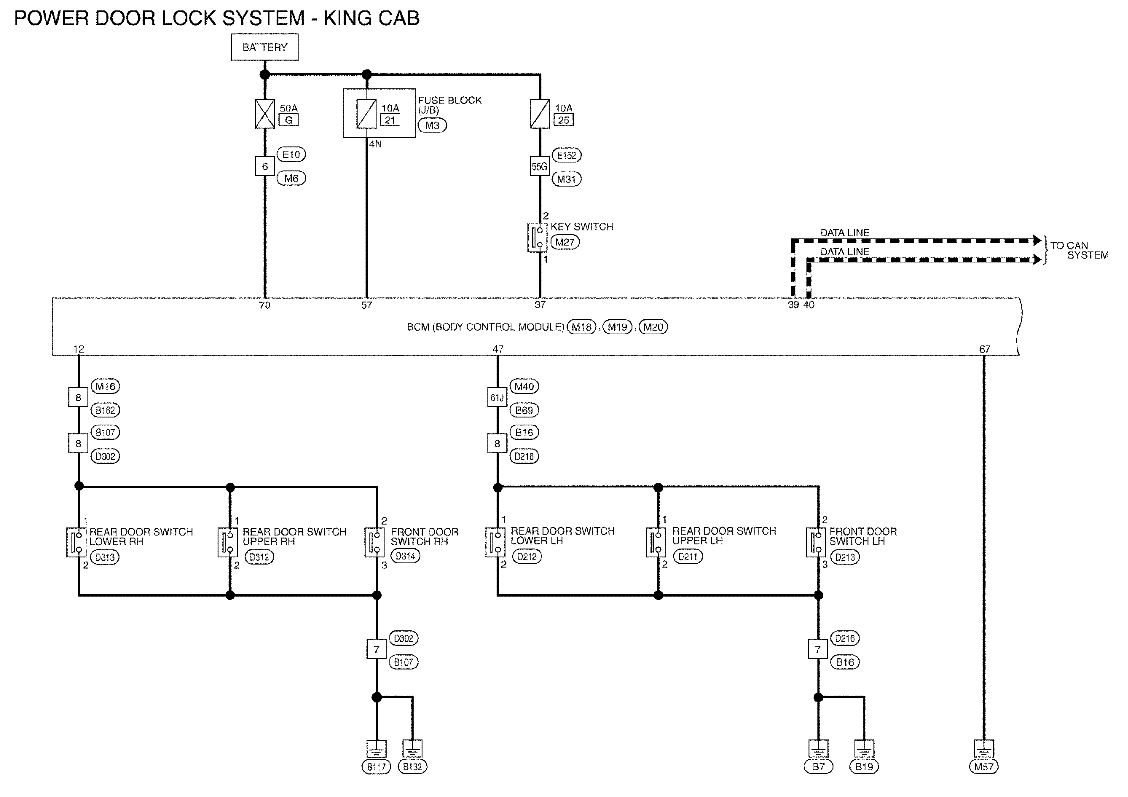

Fig 2: Power Door Lock System - Wiring Diagram [King Cab] (2 Of 10)

Courtesy of SUZUKI OF AMERICA CORP.

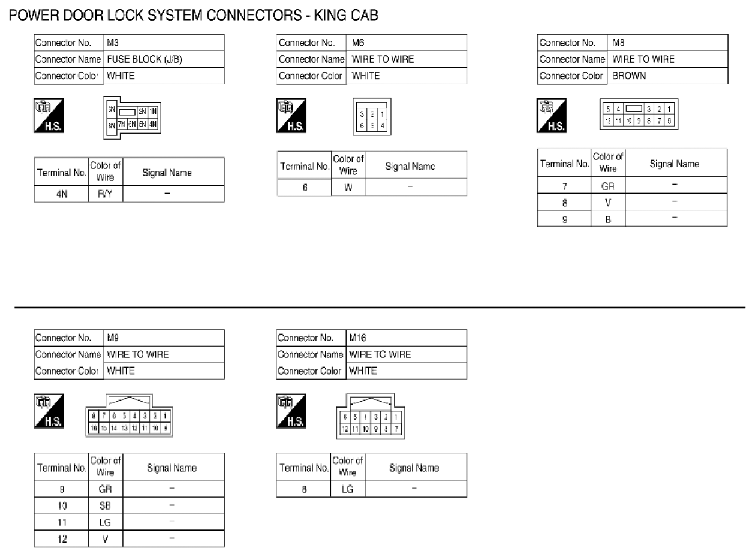

Fig 3: Power Door Lock System - Wiring Diagram [King Cab] (3 Of 10)

Courtesy of SUZUKI OF AMERICA CORP.

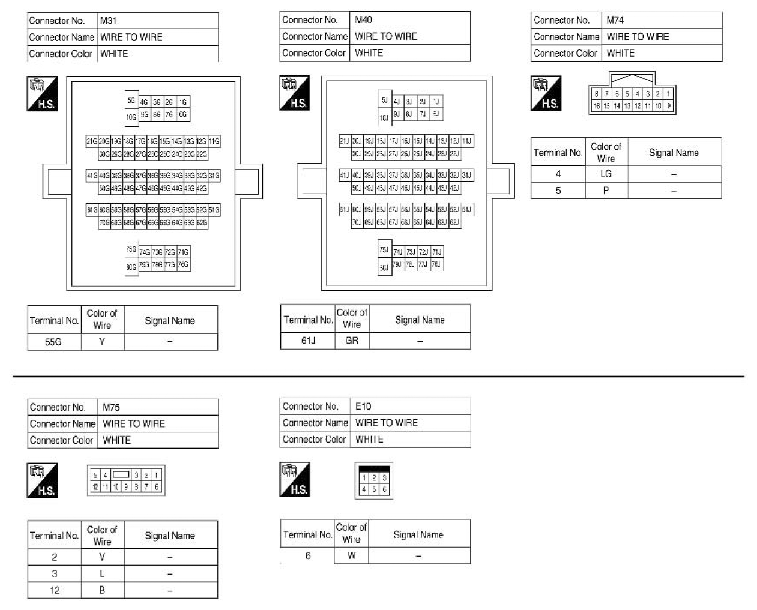

Fig 4: Power Door Lock System - Wiring Diagram [King Cab] (4 Of 10)

Courtesy of SUZUKI OF AMERICA CORP.

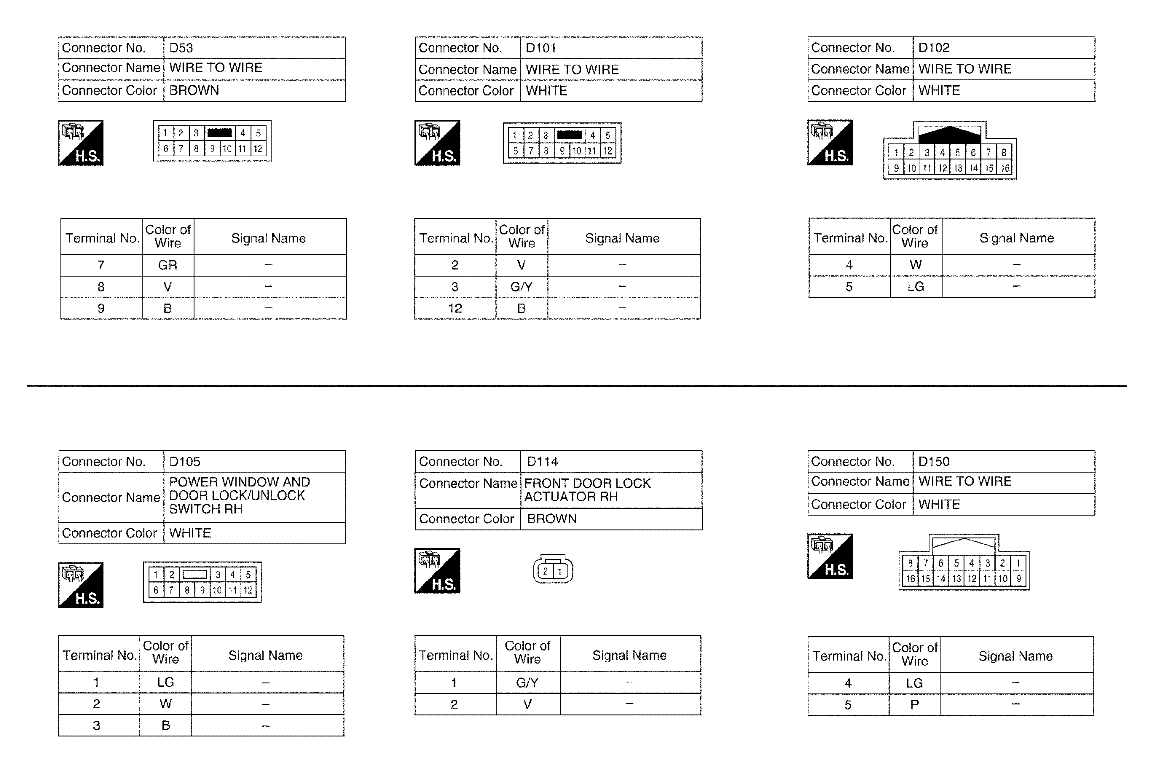

Fig 5: Power Door Lock System - Wiring Diagram [King Cab] (5 Of 10)

Courtesy of SUZUKI OF AMERICA CORP.

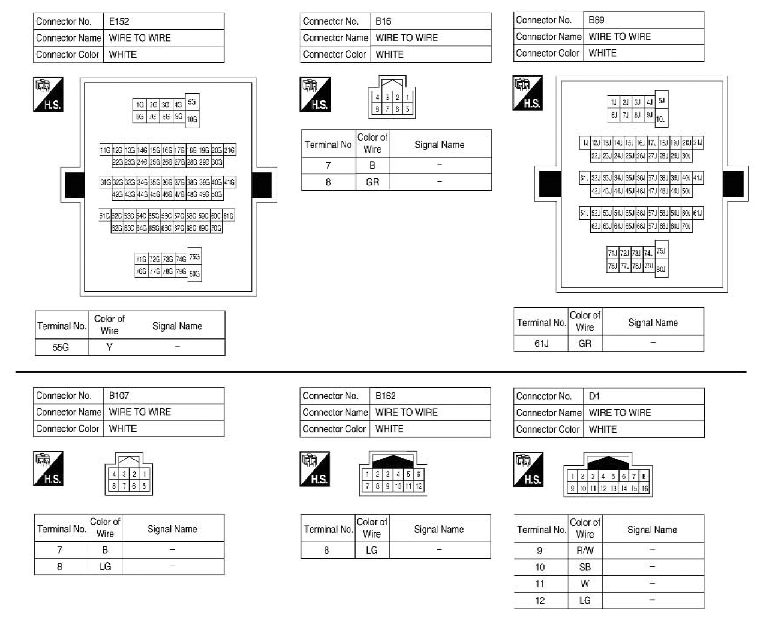

Fig 6: Power Door Lock System - Wiring Diagram [King Cab] (6 Of 10)

Courtesy of SUZUKI OF AMERICA CORP.

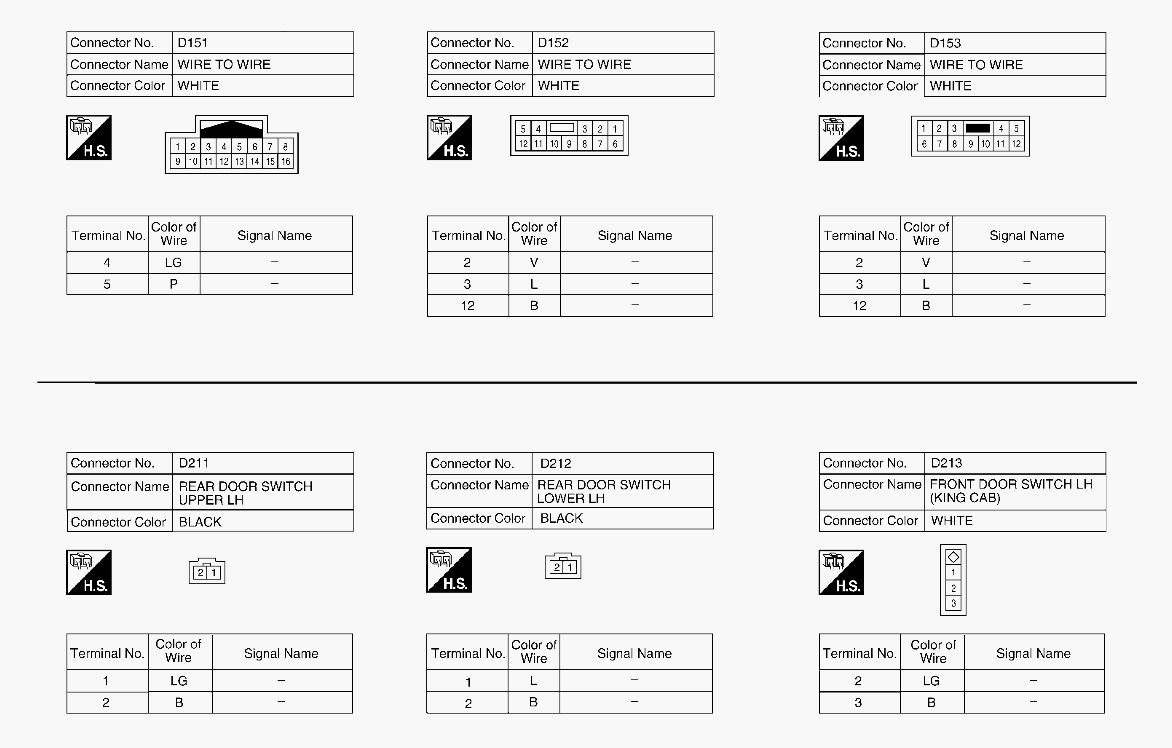

Fig 7: Power Door Lock System - Wiring Diagram [King Cab] (7 Of 10)

Courtesy of SUZUKI OF AMERICA CORP.

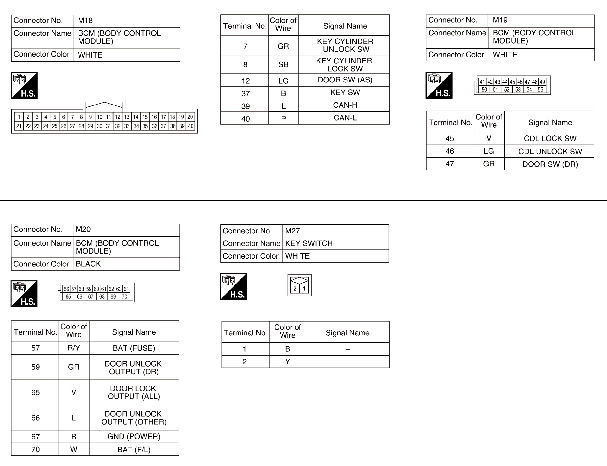

Fig 8: Power Door Lock System - Wiring Diagram [King Cab] (8 Of 10)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 9: Power Door Lock System - Wiring Diagram [King Cab] (9 Of 10)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 10: Power Door Lock System - Wiring Diagram [King Cab] (10 Of 10)

Courtesy of SUZUKI OF AMERICA CORP.
