Power Door Lock System: Wiring Diagram [Crew Cab]

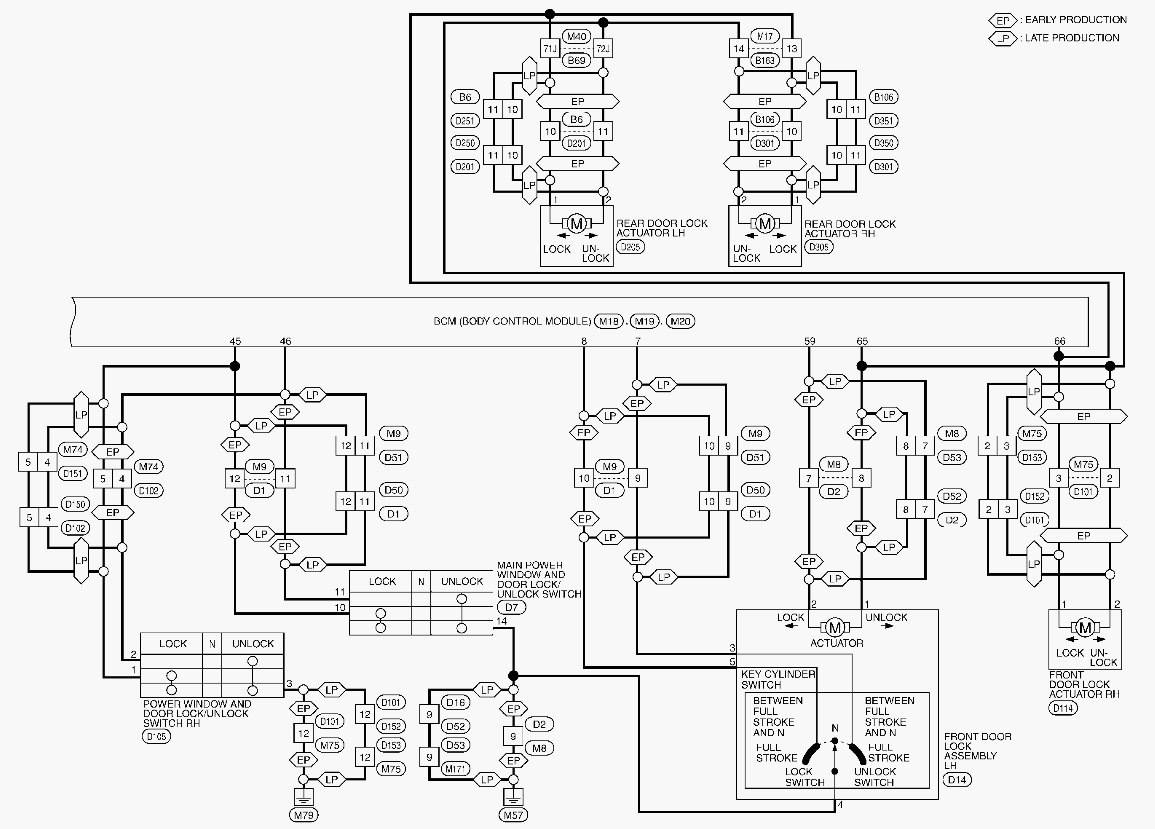

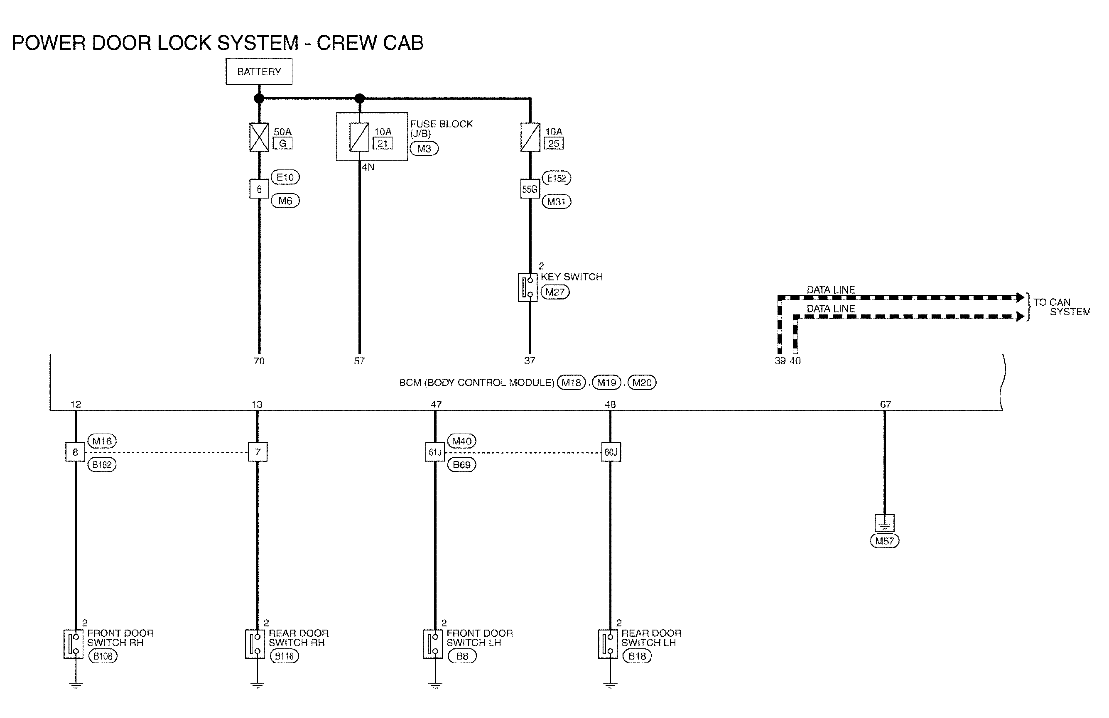

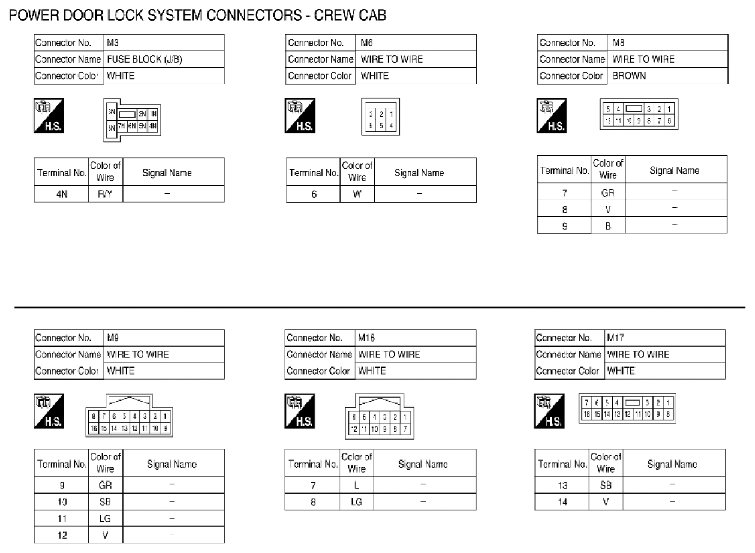

Fig 1: Power Door Lock System - Wiring Diagram [Crew Cab] (1 Of 12)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: Power Door Lock System - Wiring Diagram [Crew Cab] (2 Of 12)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 3: Power Door Lock System - Wiring Diagram [Crew Cab] (3 Of 12)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 4: Power Door Lock System - Wiring Diagram [Crew Cab] (4 Of 12)

Courtesy of SUZUKI OF AMERICA CORP.

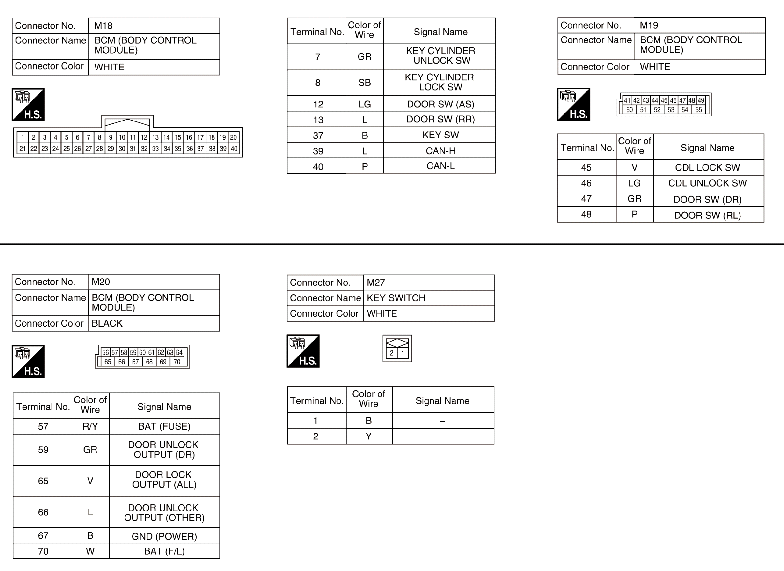

Fig 5: Power Door Lock System - Wiring Diagram [Crew Cab] (5 Of 12)

Courtesy of SUZUKI OF AMERICA CORP.

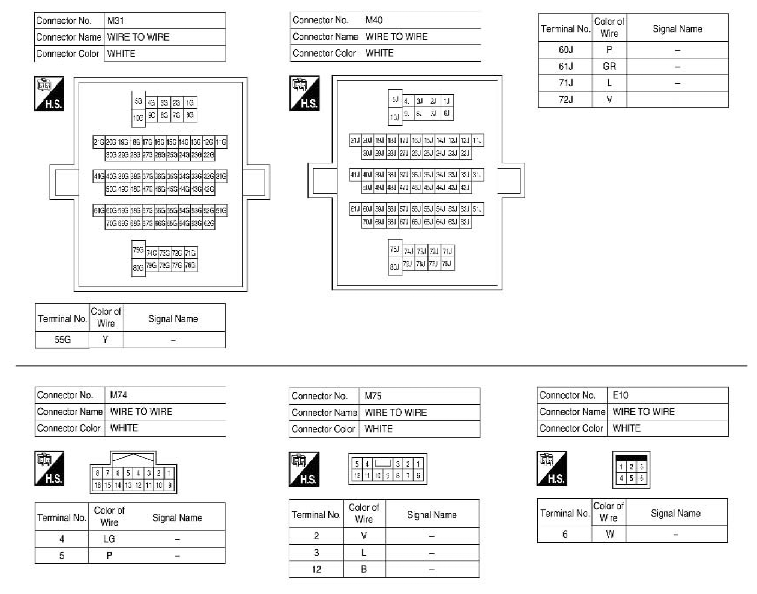

Fig 6: Power Door Lock System - Wiring Diagram [Crew Cab] (6 Of 12)

Courtesy of SUZUKI OF AMERICA CORP.

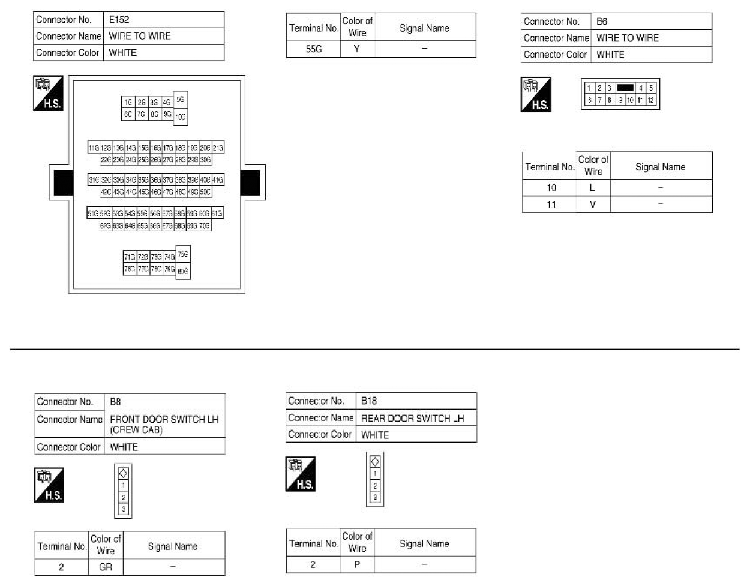

Fig 7: Power Door Lock System - Wiring Diagram [Crew Cab] (7 Of 12)

Courtesy of SUZUKI OF AMERICA CORP.

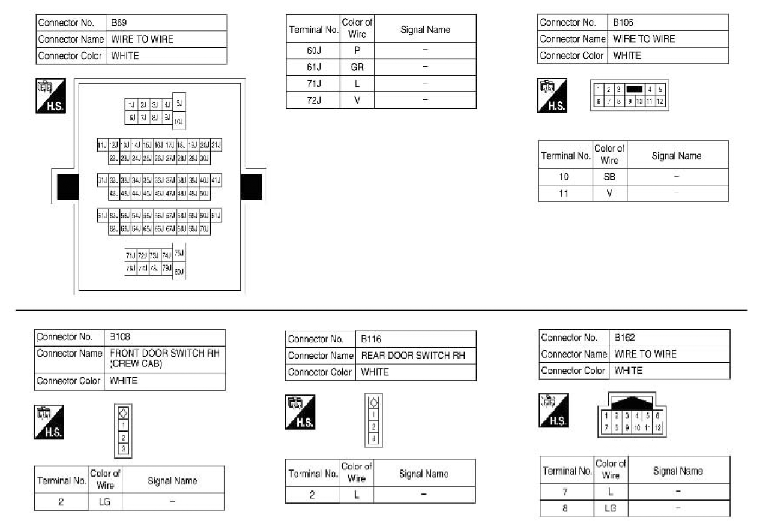

Fig 8: Power Door Lock System - Wiring Diagram [Crew Cab] (8 Of 12)

Courtesy of SUZUKI OF AMERICA CORP.

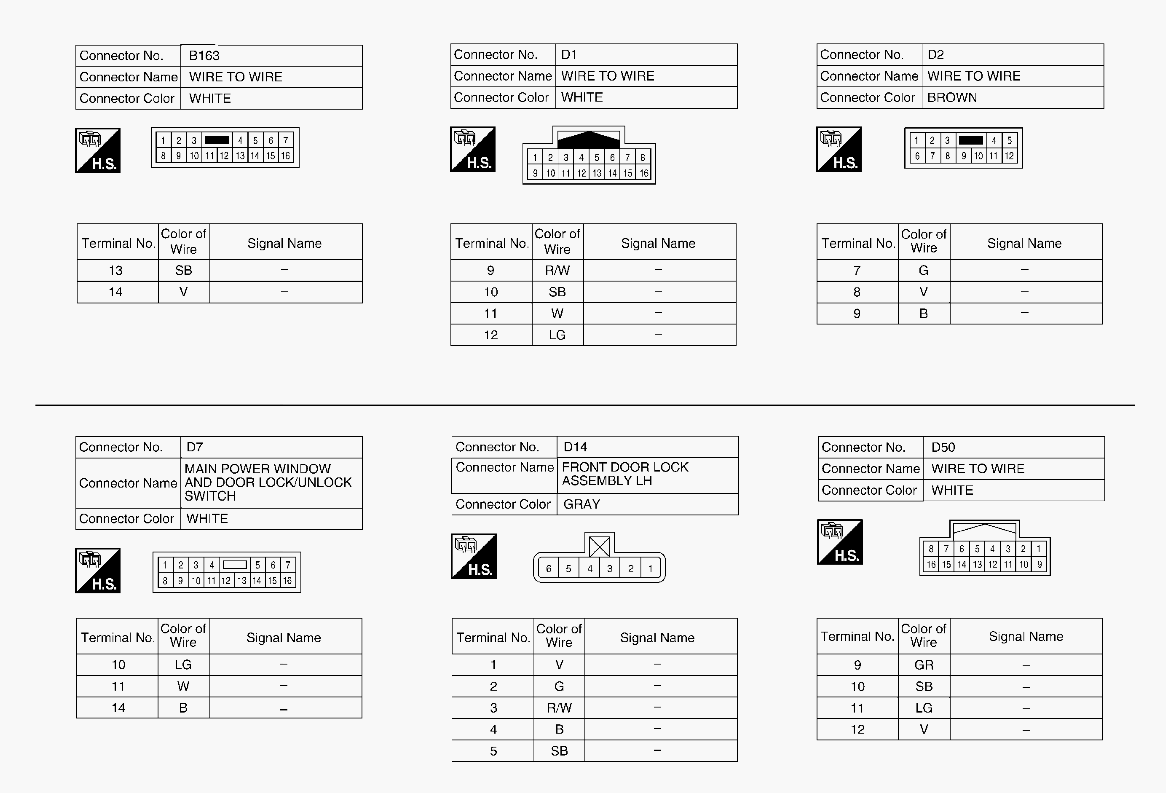

Fig 9: Power Door Lock System - Wiring Diagram [Crew Cab] (9 Of 12)

Courtesy of SUZUKI OF AMERICA CORP.

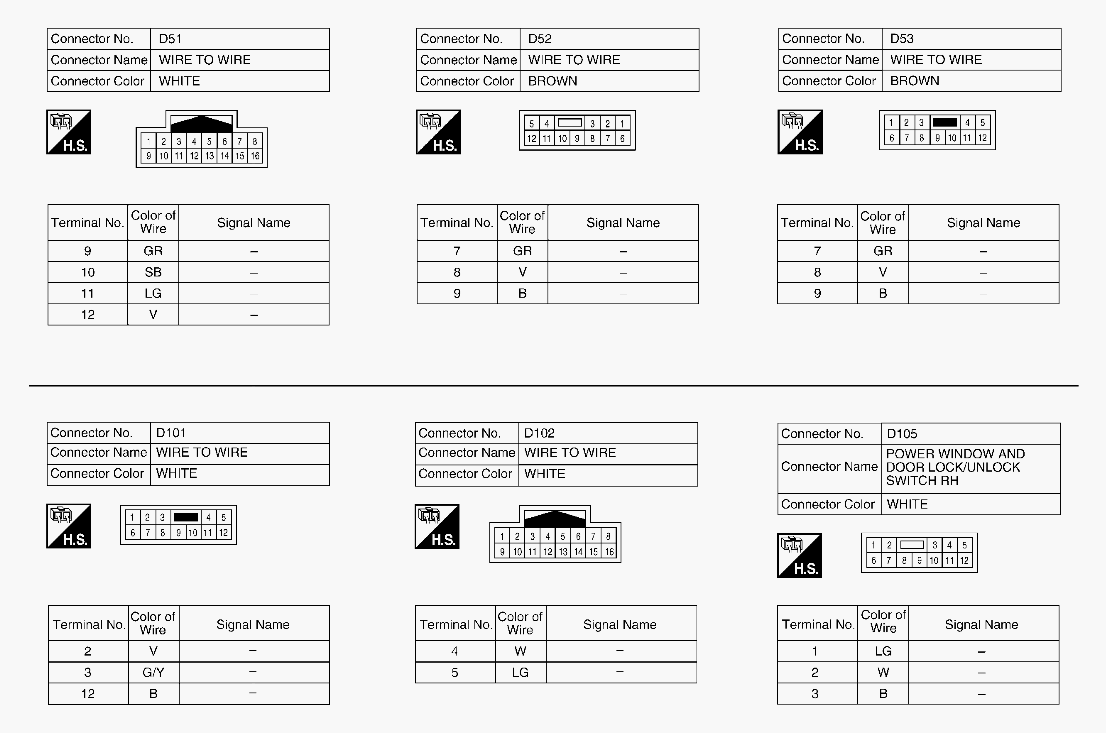

Fig 10: Power Door Lock System - Wiring Diagram [Crew Cab] (10 Of 12)

Courtesy of SUZUKI OF AMERICA CORP.

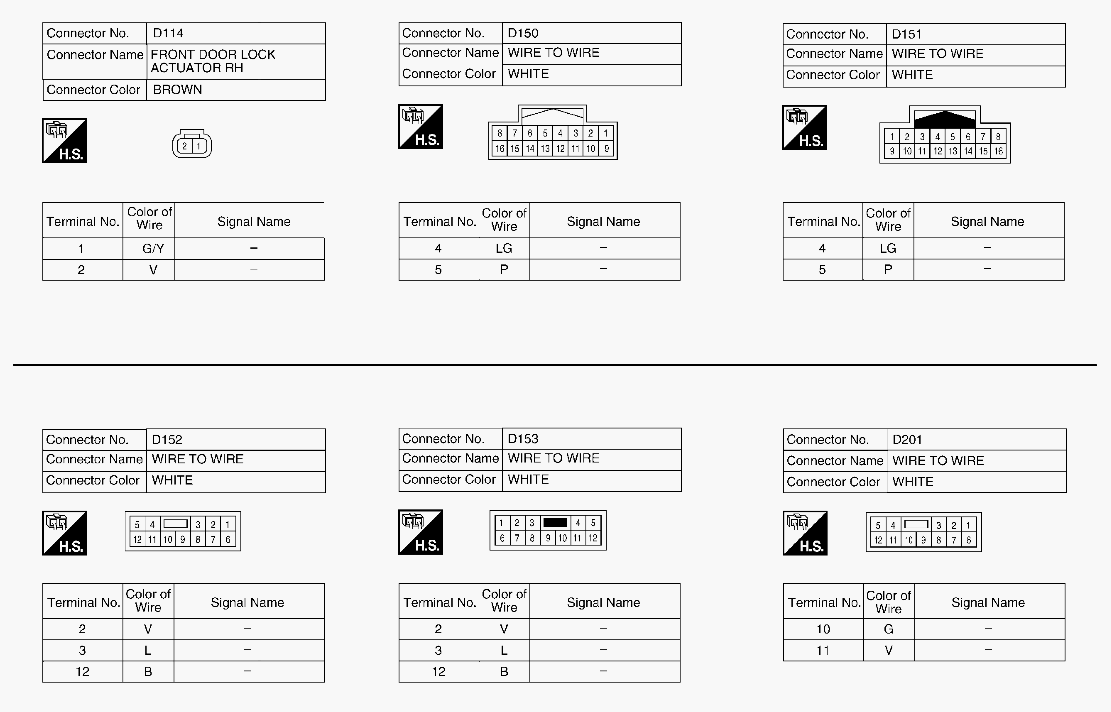

Fig 11: Power Door Lock System - Wiring Diagram [Crew Cab] (11 Of 12)

Courtesy of SUZUKI OF AMERICA CORP.

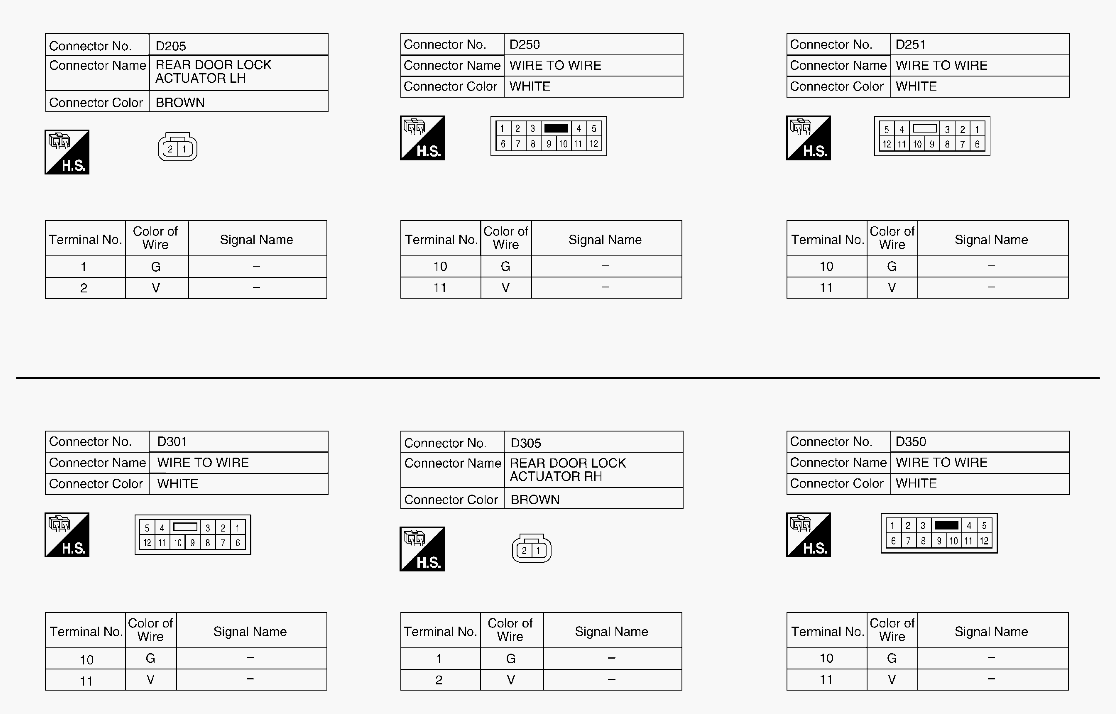

Fig 12: Power Door Lock System - Wiring Diagram [Crew Cab] (12 Of 12)

Courtesy of SUZUKI OF AMERICA CORP.
